3 System description
3.4 ReadyToProcess Pump 25
Status LEDs
The status LEDs indicate the pumping function status according to the following table.
Light indicator
Steady green light
Green flashing light
Red flashing light
Steady red light

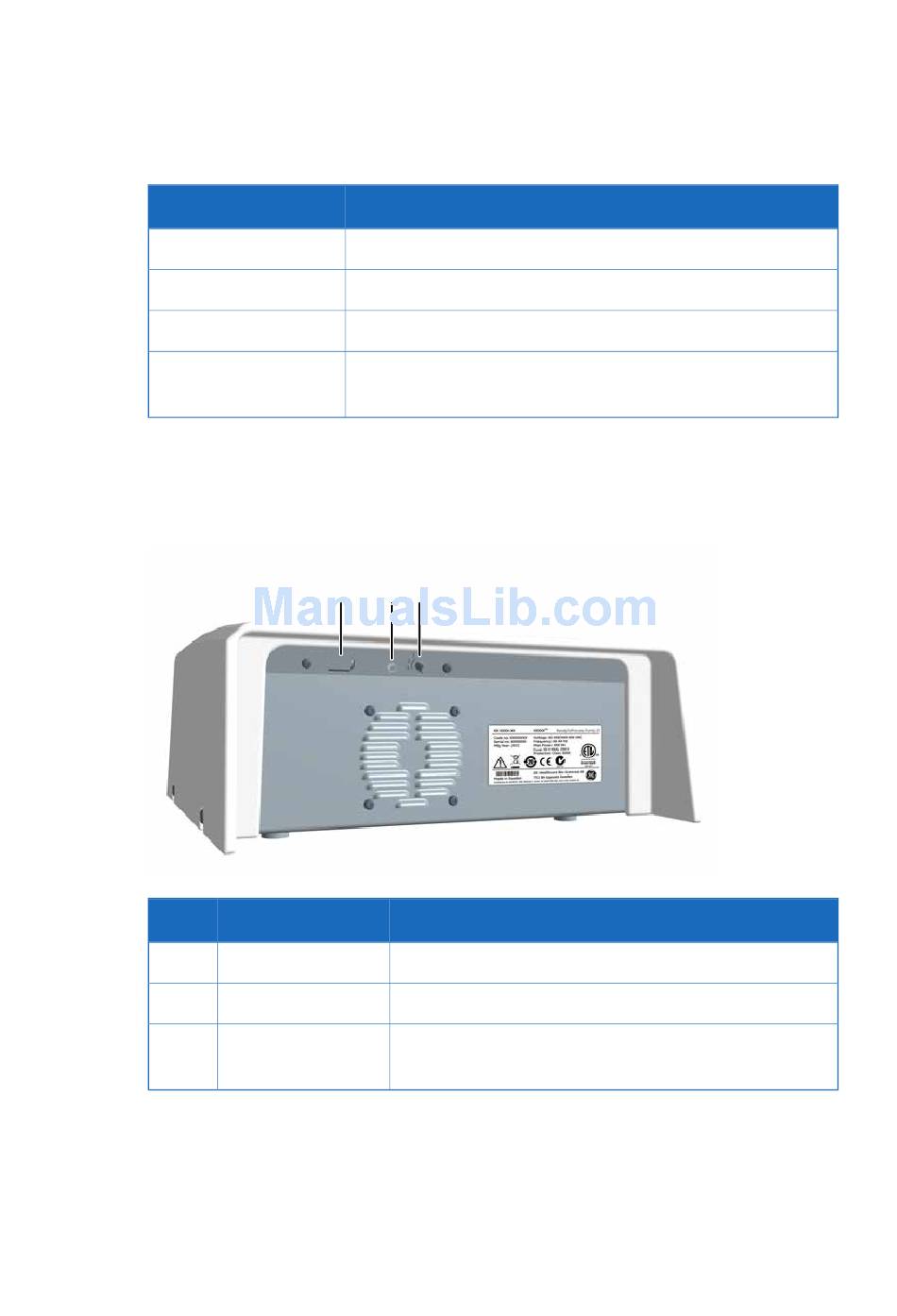

Rear view of the pump
The illustration below shows the rear panel of the pump.
Part
1
2
3
56
Description
The pumping function is ready for operation.
Pumping is ongoing.
Indicates an internal error, but the pump is still operating.
Indicates an internal error, and the pump is not operating
properly.
1 2
Component
UniNet-9 port
CAN indicator LED
CAN ID switch
3
Description
Power connection to the rocker.
Indicates system connection status.
Shows the unit number of the pump for recognition
by the system.
ReadyToProcess WAVE 25 Operating Instructions 29009597 AD
