Vega VEGAPULS 63 Operating Instructions Manual

Radar sensor for continuous level measurement of liquids
Hide thumbs Also See for VEGAPULS 63:
Table of Contents

Advertisement

Quick Links

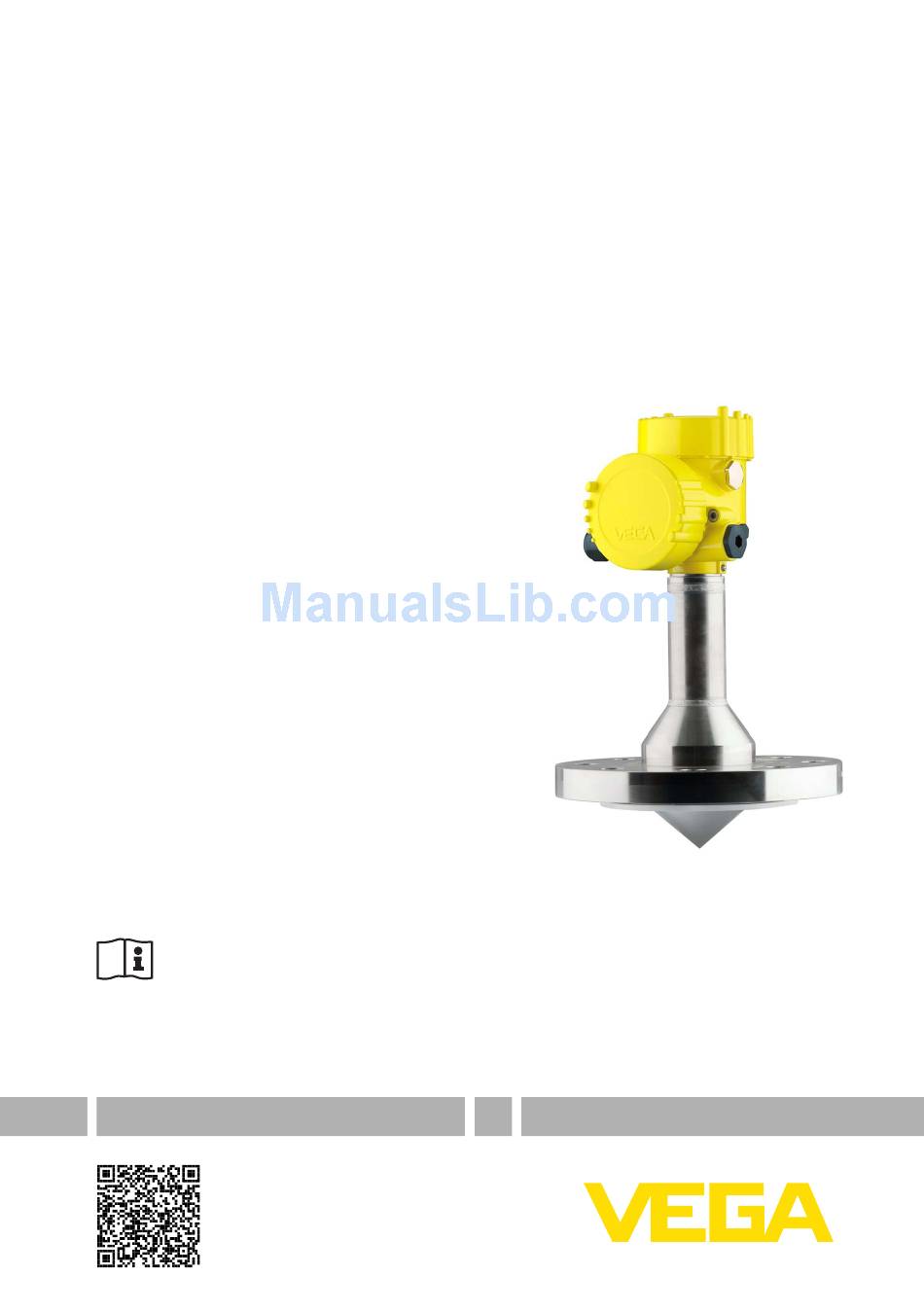

Operating Instructions
Radar sensor for continuous level
measurement of liquids
VEGAPULS 63
Modbus and Levelmaster protocol
Document ID: 41364

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 63 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAPULS 63

Summary of Contents for Vega VEGAPULS 63

  • Page 1 Operating Instructions Radar sensor for continuous level measurement of liquids VEGAPULS 63 Modbus and Levelmaster protocol Document ID: 41364...

  • Page 2: Table Of Contents

    Setting up sensor and Modbus interface with PACTware Connect the PC ......................55 Parameter adjustment ....................56 Set instrument address ....................58 Saving the parameterisation data ................... 59 Setup with PACTware Connect the PC ......................60 VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 3 11.9 Trademark ........................101 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2017-07-07 VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 4: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGAPULS 63 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Eu Conformity

    For operation inside of closed vessels, the following conditions must be fulfilled: • The instrument must be permanently mounted on a closed vessel made of metal, reinforced concrete, or comparable attenuating materials VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 7: Radio License For Usa

    Operation is subject to the following conditions: • This device may not cause interference, and • This device must accept any interference, including interference that may cause undesired operation of the device VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 8 Cet appareil est homologué pour une utilisation dans les cuves fer- mées et les environnements ouverts avec les restrictions suivantes : VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 9: Installation And Operation In The Usa And Canada

    This information is only valid for USA and Canada. Hence the follow- ing text is only available in the English language. Installations in the US shall comply with the relevant requirements of the National Electrical Code (ANSI/NFPA 70). VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 10: Environmental Instructions

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 11: Product Description

    Alternatively, you can access the data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •...
  • Page 12 DVD "DTM Collection", included therein – PACTware – DTM Collection – Instrument master files (GSD) for Profibus PA – FDT certificates Information: The optional instrument features are described in the operating instructions manual. The respective scope of delivery results from the order specification. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 13: Principle Of Operation

    3 Product description Principle of operation Application area The VEGAPULS 63 is a radar sensor for continuous level measure- ment of aggressive liquids or with hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors.

  • Page 14: Accessories And Replacement Parts

    The antenna impedance cone is a replacement part used for optimum transmission of microwaves and for sealing against the process. You find further information in the operating instructions "Antenna impedance cone VEGAPULS 62 and 68" (Document-ID 31381). Bluetooth function with VEGADIS 82 can only be used at a later date. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 15: Mounting

    DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. Cable glands Metric threads In the case of instrument housings with metric thread, the cable glands are screwed in at the factory. They are sealed with plastic plugs as transport protection. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 16: Mounting Instructions

    To seal effectively, the following requirements must be fulfilled: 1. Make sure the number of flange screws corresponds to the num- ber of flange holes 2. Use of disc springs as previously described Fig. 3: Use of disc springs Disc spring Sealing surface 3. Tighten screws with the necessary torque (see chapter "Technical data") VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 17 Fig. 4: Position of the polarisation Marking hole When mounting the VEGAPULS 63, keep a distance of at least Installation position 200 mm (7.874 in) to the vessel wall. If the sensor is installed in the center of dished or round vessel tops, multiple echoes can arise.
  • Page 18 Fig. 6: Mounting of the radar sensor on vessels with conical bottom Reference plane The measuring range of VEGAPULS 63 begins physically at the end of the antenna; the adjustment, however, begins at the reference plane. The reference plane is different depending on the sensor ver- sion.
  • Page 19 Fig. 9: Deviating socket dimensions The below charts specify the max. socket length h depending on the diameter d. Socket diameter d Socket length h 50 mm ≤ 100 mm 80 mm ≤ 300 mm 100 mm ≤ 400 mm VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 20 Small, inclined sheet metal baffles above the installations scatter the radar signals and prevent direct interfering reflections. Fig. 11: Cover flat, large-area profiles with deflectors Agitators If there are agitators in the vessel, a false signal suppression should be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 21: Measurement Setup - Pipes

    Under these prerequisites, the measurement of products with low dielectric values (ε value ≤ 1.6) is possible. Note the following illustrations and instructions for measurement in a surge pipe. Information: Measurement in a surge pipe is not recommended for extremely adhesive products. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 22 4 Mounting Configuration surge pipe 100% Fig. 13: Configuration surge pipe VEGAPULS 63 Radar sensor Polarisation marking 3 Thread or flange on the instrument Vent hole Holes 6 Welding connection through U-profile Ball valve with complete opening Surge pipe end 9 Reflector sheet 10 Fastening of the surge pipe VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 23 • A false signal suppression with the installed sensor is recom- mended but not mandatory • The measurement through a ball valve with unrestricted channel is possible VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 24 • An extension via welding neck flanges or pipe collars is not recom- mended. Measurement in the An alternative to measurement in a surge pipe is measurement in a bypass tube bypass tube outside of the vessel. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 25 • A false signal suppression with the installed sensor is recom- mended but not mandatory • The measurement through a ball valve with unrestricted channel is possible VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 26 Flanges are welded to the tube according to the orientation of the polarisation • Gap size with junctions ≤ 0.1 mm, for example, when using a ball valve or intermediate flanges with single pipe sections • The antenna diameter of the sensor should correspond to the inner diameter of the tube • Diameter should be constant over the complete length VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 27: Connecting To Power Supply And Bus System

    On plastic housings, the NPT cable gland or the Conduit steel tube must be screwed into the threaded insert without grease. Max. torque for all housings, see chapter "Technical data". VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 28: Connecting

    4. Insert the cable into the sensor through the cable entry Fig. 16: Connection steps 5 and 6 5. Insert the wire ends into the terminals according to the wiring plan VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 29: Wiring Plan, Double Chamber Housing

    When inserting the terminal block again, you should hear it snap in. Wiring plan, double chamber housing Overview Fig. 17: Position of connection compartment (Modbus electronics) and electron- ics compartment (sensor electronics) Terminal compartment Electronics compartment VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 30 Fig. 19: Terminal compartment USB interface 2 Slide switch for integrated termination resistor (120 Ω) Modbus signal Voltage supply Terminal Function Polarity Voltage supply Voltage supply Modbus signal D0 Modbus signal D1 Function ground when installing ac- cording to CSA (Canadian Standards Association) VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 31: Double Chamber Housing With Vegadis-Adapter

    Pin 3 Blue Pin 4 Black Switch-on phase After VEGAPULS 63 is connected to the bus system, the instrument carries out a self-test for approx. 30 seconds. The following steps are carried out: • Internal check of the electronics •...
  • Page 32 5 Connecting to power supply and bus system Then the actual measured value is outputted to the signal cable. The value takes into account settings that have already been carried out, e.g. default setting. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 33: Set Up The Sensor With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 22: Insertion of the display and adjustment module Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 34: Adjustment System

    The pen oper- ates the four keys of the display and adjustment module right through the closed lid (with inspection window) of the sensor housing. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 35: Measured Value Indication - Selection Of National Language

    In the third view, the selected measured value as well as a second se- lectable value, e.g. the temperature of the electronics, are displayed. During the initial setup of an instrument shipped with factory settings, use the "OK" key to get to the menu "National language". VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 36: Parameter Adjustment

    You can enter an unambiguous designation for the sensor, e.g. the measurement loop name or the tank or product designation. In digital systems and in the documentation of larger plants, a singular desig- VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 37 With this menu item, the sensor can be adapted to the applications. The adjustment possibilities depend on the selection "Liquid" or "Bulk solid" under "Medium". The following options are available when "Liquid" is selected: VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 38 – High accuracy, because not set for max. speed – False signal suppression recommended Storage tank on ships (Cargo Tank): • Medium speed: slow filling and emptying • Vessel: – Installations in the bottom section (bracers, heating spirals) VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 39 – False signal suppression recommended Standpipe: • Medium speed: very fast filling and emptying • Vessel: – Vent hole – Joins like flanges, weld joints – Shifting of the running time in the tube • Process/measurement conditions: – Condensation – Buildup • Properties, sensor: – Measurement speed optimized through little averaging VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 40 Properties, sensor: – Quick adaptation to changing reflection conditions due to ves- sel change – False signal suppression required Open water (gauge measurement): • Rate of level change: slow level change • Process/measurement conditions: – Large distance from sensor to water surface VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 41 – High sensitivity to interference, because virtually no averaging Caution: If liquids with different dielectric constants separate in the vessel, for example through condensation, the radar sensor can detect under certain circumstances only the medium with the higher dielectric constant. Keep in mind that layer interfaces can cause faulty meas- urements. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 42 To perform the adjustment, enter the distance with full and empty ves- sel, see the following example: VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 43 2. Edit the percentage value with [OK] and set the cursor to the requested position with [->]. 3. Set the requested percentage value with [+] and save with [OK]. The cursor jumps now to the distance value. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 44 Depending on the sensor type, the factory setting is 0 s or 1 s. Setup - Current output, In the menu item "Current output mode" you determine the output mode characteristics and reaction of the current output in case of fault. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 45 When the PIN is active, adjustment via PACTware/DTM as well as other systems is also blocked. In delivery status, the PIN is "0000". Display - Language This menu item enables the setting of the requested national lan- guage. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 46 The respective min. and max. measured values of the electronics tem- temperature perature are saved in the sensor. These values as well as the current temperature value are displayed in the menu item "Peak values". VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 47 Diagnosis - Curve indica- The "Echo curve" shows the signal strength of the echoes over the tion measuring range in dB. The signal strength enables an evaluation of the quality of the measurement. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 48 Instrument units the temperature unit. Additional settings - False The following circumstances cause interfering reflections and can signal suppression influence the measurement: • High mounting sockets • Vessel internals such as struts • Agitators • Buildup or welded joints on vessel walls VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 49 This is useful if the saved false signal suppression no longer matches the metrological conditions in the vessel. Extend: is used to extend an already created false signal suppres- sion. This is useful if a false signal suppression was carried out with VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 50 "Setup". In delivery status, the PIN is "0000". Additional settings - Date/ In this menu item, the internal clock of the sensor is set. Time VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 51 Max. adjustment 0,000 m(d) Damping 0.0 s Current output mode 4 … 20 mA, < 3.6 mA Current output, min./max. Min. current 3.8 mA, max. current 20.5 mA Lock adjustment Released VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 52 In the menu "Additional settings" the items "Distance unit, tem- perature unit and linearization" • The values of the user-programmable linearisation curve The 4 … 20 mA signal of the sensor is switched off. The sensor uses a constant current of 4 mA. The measuring signal is transmitted exclusively as a digital HART signal. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 53 PC. Instrument features In this menu item, the features of the sensor such as approval, pro- cess fitting, seal, measuring range, electronics, housing and others are displayed. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 54: Saving The Parameterisation Data

    If it is necessary to exchange a sensor, the display and adjustment module is inserted into the replacement instrument and the data are likewise written into the sensor via the menu item "Copy device settings". VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 55: Setting Up Sensor And Modbus Interface With Pactware

    Interface adapter VEGACONNECT Sensor To the Modbus electron- Connection of the PC to the Modbus electronics is carried out via a USB cable. Scope of the parameter adjustment: • Sensor electronics • Modbus electronics VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 56: Parameter Adjustment

    For parameter adjustment of the instrument via a Windows PC, the configuration software PACTware and a suitable instrument driver (DTM) according to FDT standard are required. The latest PACTware version as well as all available DTMs are compiled in a DTM Collec- VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 57 The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 58: Set Instrument Address

    7 Setting up sensor and Modbus interface with PACTware Set instrument address The VEGAPULS 63 requires an address for participating as a Slave in the Modbus communication. The addess setting is carried out via a PC with PACTware/DTM or Modbus RTU.

  • Page 59: Saving The Parameterisation Data

    7 Setting up sensor and Modbus interface with PACTware Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware. That way the data are available for multiple use or service purposes. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 60: Setup With Pactware

    Further setup steps are described in the operating instructions manu- al "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip- tions are available in the online help of PACTware and the DTMs. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 61: Saving The Parameterisation Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware.

  • Page 62: Diagnosis, Asset Management And Service

    Changes in the measure- ment conditions during operation or buildup on the sensor can thus be recognized. The echo curve of the setup is stored via: • PC with PACTware/DTM • Control system with EDD • Display and adjustment module VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 63: Asset Management Function

    Plan in maintenance for the instrument because a failure is expected in the near future (e.g. due to buildup). This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 64 Adjustment not within the vessel Check or correct installation Bit 10 height/measuring range and/or parameter settings Installation/Setup • • Max. measuring range of the Use an instrument with bigger error instrument not sufficient measuring range VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 65 Error in the non- active linearisation table • • M502 Hardware error EEPROM Exchanging the electronics Bit 2 of • Send instrument for repair Byte 14 … 24 Error in the diag- nostics memory VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 66: Rectify Faults

    The images in column "Error pattern" show the real level as a broken line and the level displayed by the sensor as a continuous line. time Real level Level displayed by the sensor VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 67 Echo from the tank bottom Check parameters Medium, mains in the bottom larger than the level echo, for Vessel height and Floor form, section during filling example, with products with adapt if necessary ε < 2.5 oil-based, solvents time VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 68 In case of interferences due to installations in the close range: Change polarisation direction • After eliminating the false sig- nals, the false signal suppres- sion must be deleted. Carry out a new false signal suppression VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 69: Exchanging The Electronics Module

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.

  • Page 70: Software Update

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 71: Dismount

    Pass the instrument directly on to a spe- cialised recycling company and do not use the municipal collecting points. These may be used only for privately used products according to the WEEE directive. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 72: Supplement

    60 Nm (44.25 lbf ft) Recommended torque for tightening the 60 … 100 Nm (44.25 … 73.76 lbf ft) flange screws Max. torque for NPT cable glands and Conduit tubes Ʋ Plastic housing 10 Nm (7.376 lbf ft) VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 73 Flange DN 50, 2" up to 15 m (49.21 ft) Flange DN 80, 3" up to 35 m (114.8 ft) Output variable Output Ʋ Physical layer Digital output signal according to standard EIA-485 VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 74 The propagation speed of the radar impulses in gas or vapour above the medium is reduced by high pressure. This effect depends on the type of superimposed gas or vapour and is especially large at low temperatures. The following table shows the resulting deviation for some typical gases and vapours. The specified values refer to the distance. Positive values mean that the measured distance is too large, negative values that the measured distance is too small. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 75 Ʋ Max. power density at a distance of < 1 µW/cm² Time span after a sudden measuring distance change by max. 0.5 m in liquid applications, max 2 m with bulk solids applications, until the output signal has taken for the first time 90 % of the final value (IEC 61298-2). Outside the specified beam angle, the energy level of the radar signal is 50% (-3 dB) less. EIRP: Equivalent Isotropic Radiated Power. VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 76: Process Conditions

    Clamp 3", 3½", 4" PN 10 PN 16 Remaining hygienic fittings -1 … 16 bar (-100 … 1600 kPa/-14.5 … 232 psig) Vibration resistance 4 g at 5 … 200 Hz according to EN 60068-2-6 (vibration with resonance) Shock resistance 100 g, 6 ms according to EN 60068-2-27 (mechanical shock) VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 77 4 … 20 mA/HART 50 m ● – – Profibus PA, Founda- 25 m – ● ● tion Fieldbus Integrated clock Date format Day.Month.Year Time format 12 h/24 h Time zone, factory setting Max. rate deviation 10.5 min/year VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 78 Connection of the feeding power supply Networks of overvoltage category III unit Altitude above sea level Ʋ by default bis 2000 m (6562 ft) Ʋ with connected overvoltage protection up to 5000 m (16404 ft) VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 79: Basics Modbus

    Instruments with approvals can have different technical specifications depending on the version. For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "Instrument search (serial number)" as well as in the download area. 11.2 Basics Modbus Bus description The Modbus protocol is a communication protocol for the communication between instruments.

  • Page 80: Modbus Register

    (4 bytes) according to IEEE 754 are transmitted with individually selectable order of the data bytes (byte transmission order). This "Byte transmission order" is determined in the parameter "Format Code". Hence the RTU knows the registers of the VEGAPULS 63 which must be contacted for the variables and status information.
  • Page 81 Quarternary Variable in Byte Order of Register 3000 Status 1400 DWord See Register 100 1402 Primary Variable in Byte Order CDAB Status 1412 DWord See Register 100 1414 Secondary Variable in Byte Order CDAB VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 82 Quarternary Variable in Byte Order BACD (Middle Endian) Unit Codes for Register 104, 108, 112, 116 Unit Code Measurement Unit Degree Celsius Degree Fahrenheit US Gallon Liters Imperial Gallons Cubic Meters Feet Meters Barrels Inches Centimeters Millimeters Cubic Yards VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 83: Modbus Rtu Commands

    Response: Parameter Length Code/Data Function Code 1 Byte 0x04 Start Address 2 Bytes Register Value N*2 Bytes Data FC6 Write Single Register With this function code an individual holding register can be written. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 84 With this function code, several holding registers can be writen. Only registers can be written in an enquiry which are immediately consecutive. If there are gaps (registers do not exist) between the registers, then they cannot be written in a telegram. VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 85 1 Byte FC43 Sub 14, Read Device Identification With this function code, the Device Identification can be queried. Request: Parameter Length Code/Data Function Code 1 Byte 0x2B MEI Type 1 Byte 0x0E Read Device ID Code 1 Byte 0x01 to 0x04 Object ID 1 Byte 0x00 to 0xFF VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 86: Levelmaster Commands

    List of Object value 1 Byte Depending on the Object ID 11.5 Levelmaster commands The VEGAPULS 63 is also suitable for connection to the following RTUs with Levelmaster protocol. The Levelmaster protocol is often called "Siemens" "Tank protocol". Protocol ABB Totalflow...
  • Page 87 Report Unit Number 5 characters ASCII U**N? Response: Parameter Length Code/Data Report Level (and Temperature) 6 characters ASCII UuuNnn Assign Unit Number Request: Parameter Length Code/Data Assign Unit Number 6 characters ASCII UuuNnn VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 88 Change instrument on address 1 to baudrate 9600, parity even, 7 data bits, 1 stop bit Set Receive to Transmit Delay Request: Parameter Length Code/Data Set Receive to Transmit 7 characters ASCII UuuRmmm Delay mmm = milliseconds (50 up to 250), default = 127 ms VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 89 = milliseconds (50 up to 250), default = 127 ms Error codes Error Code Name EE-Error Error While Storing Data in EEPROM FR-Error Erorr in Frame (too short, too long, wrong data) LV-Error Value out of limits VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 90: Configuration Of Typical Modbus Hosts

    11 Supplement 11.6 Configuration of typical Modbus hosts Fisher ROC 809 Wiring plan (Rx/Tx -) (Rx/Tx +) +30 Vdc Fig. 50: Connection of VEGAPULS 63 to RTU Fisher ROC 809 VEGAPULS 63 RTU Fisher ROC 809 Voltage supply Parameter Parameter Value Baud Rate 9600...
  • Page 91 11 Supplement ABB Total Flow Wiring plan Bus + Bus - VBAT Fig. 51: Connection of VEGAPULS 63 to RTU ABB Total Flow VEGAPULS 63 RTU ABB Total Flow Parameter Parameter Value Baud Rate 9600 Floating Point Format Code RTU Data Type...
  • Page 92 11 Supplement Thermo Electron Autopilot Wiring plan Rx - +30 Vdc Fig. 52: Connection of VEGAPULS 63 to RTU Thermo Electron Autopilot VEGAPULS 63 RTU Thermo Electron Autopilot Voltage supply Parameter Parameter Value Baud Rate 9600 Floating Point Format Code...
  • Page 93 3 TX- 4 GND 5 RXT 6 TXT 7 not used 8 not used +30 Vdc Fig. 53: Connection of VEGAPULS 63 to RTU Bristol ControlWave Micro VEGAPULS 63 RTU Bristol ControlWave Micro Voltage supply Parameter Parameter Value Baud Rate...

  • Page 94: Dimensions

    11 Supplement ScadaPack Wiring plan COM Part 3 (C3) RS485 TXD- TXD+ +30 Vdc Fig. 54: Connection of VEGAPULS 63 to RTU ScadaPack VEGAPULS 63 RTU ScadaPack Voltage supply Parameter Parameter Value Baud Rate 9600 Floating Point Format Code RTU Data Type...
  • Page 95 Fig. 55: Dimensions of housing - with integrated display and adjustment module the housing is 9 mm/0.35 inches higher Plastic single chamber Aluminium/Stainless steel single chamber VEGAPULS 63, flange version ø 44 mm (1.73") ø 75 mm (2.95") Fig. 56: VEGAPULS 63, flange version DN 50 and 2" DN 80 … DN 150 and 3" … 6" Diameter and number of holes in the flange VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 96 11 Supplement VEGAPULS 63, flange version, low temperature ø 44 mm ø 75 mm (1.73") (2.95") Fig. 57: VEGAPULS 63, flange version, low temperature DN 50 and 2" DN 80 … DN 150 and 3" … 6" Diameter and number of holes in the flange VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 97 11 Supplement VEGAPULS 63, hygienic fitting 1 ø 50 mm (1.97") ø 90 mm ø 66 mm (3.54") (2.60") ø 90 mm ø 78 mm (3.54") (3.07") Fig. 58: VEGAPULS 63, hygienic fitting 1 NeumoBiocontrol Tuchenhagen Varivent DN 25 Hygienic fitting LA Hygienic fitting LB VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 98 Clamp 2" (ø 64 mm), 2½" (ø 77.5 mm), 3" (ø 91 mm) according to DIN 32676, ISO 2852/316L 3½" (ø 106 mm), 4½" (ø 119 mm) according to DIN 32676, ISO 2852/316L VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 99 ø 133 mm (5.24") Fig. 60: VEGAPULS 63, hygienic fitting 3 Slotted nut DIN 11851, DN 50, 2" and 3" Slotted nut DIN 11851, DN 80, 4" Slotted nut DIN 11864-2, DN 50 Slotted nut DIN 11864-2, DN 80 VEGAPULS 63 • Modbus and Levelmaster protocol...
  • Page 100 11 Supplement VEGAPULS 63, hygienic fitting 4 ø 84 mm ø 65 mm (3.31") (2.56") ø 105 mm (4.13") ø 114 mm (4.49") Fig. 61: VEGAPULS 63, hygienic fitting 4 SMS DN 51 SMS DN 76 VEGAPULS 63 • Modbus and Levelmaster protocol...

  • Page 101: Industrial Property Rights
