Operating Instructions

VEGAPULS 63
4 ... 20 mA/HART
Radar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 63 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAPULS 63

Summary of Contents for Vega VEGAPULS 63

  • Page 1: Operating Instructions

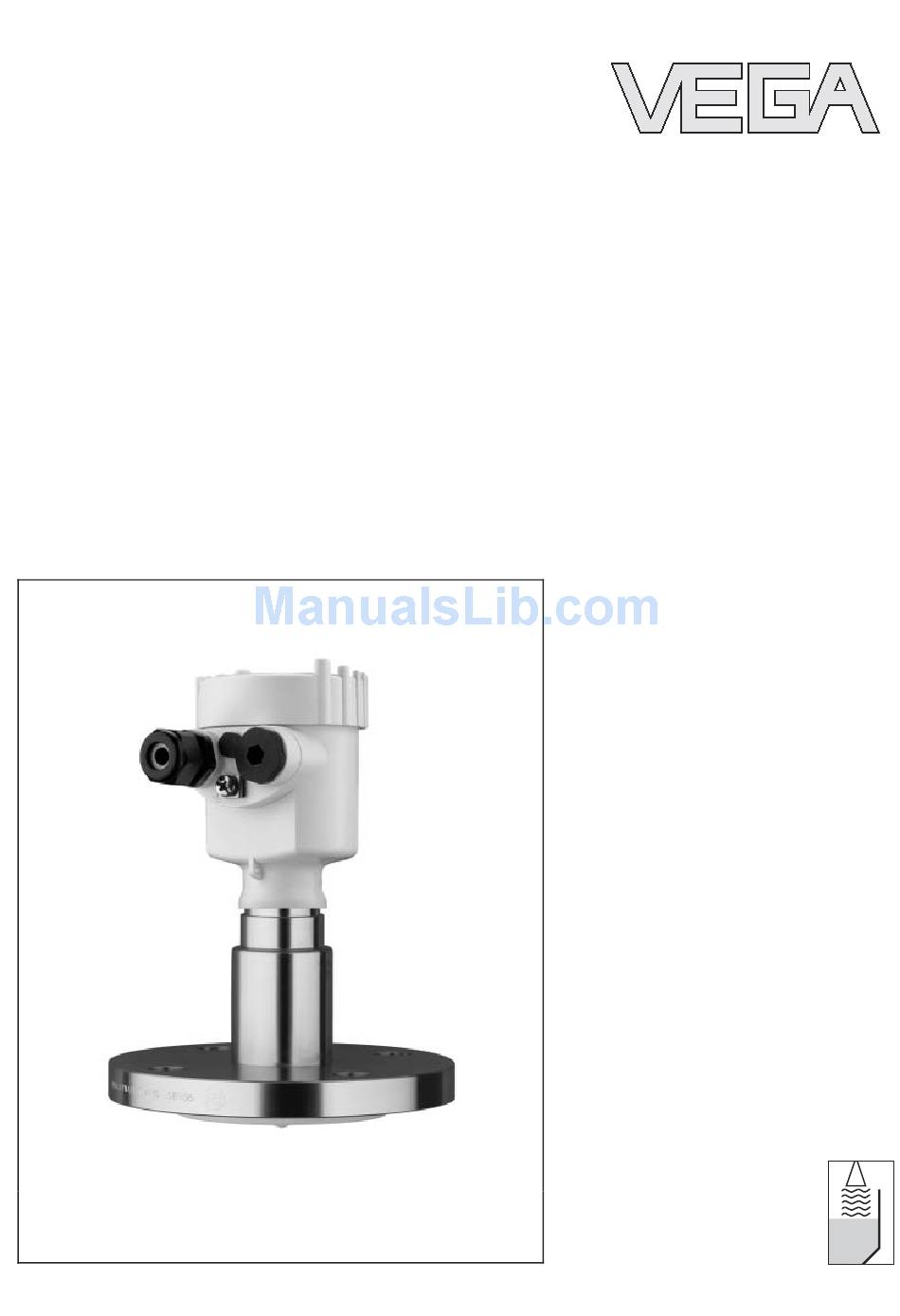

    Operating Instructions VEGAPULS 63 4 ... 20 mA/HART Radar...

  • Page 2: Table Of Contents

    Insert indicating and adjustment module ..Adjustment system ..... VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 3 10.3 Industrial property rights....10.4 Trademark ......VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 4 Contents Supplementary operating instructions manuals Information: VEGAPULS 63 is available in many versions and is therefore supplied according to customer order. Depending on the selected version, supplementary operating instructions man- uals also come with the delivery. You will find the supple- mentary operating instructions manuals in chapter "Product...

  • Page 5: About This Document

    This symbol indicates special instructions for Ex applications. List The dot set in front indicates a list with no implied sequence. à Action This arrow indicates a single action. Sequence Numbers set in front indicate successive steps in a procedure. VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 6: For Your Safety

    2.2 Appropriate use VEGAPULS 63 is a sensor for continuous level measurement. You can find detailed information on the application range of VEGAPULS 63 in chapter "Product description".

  • Page 7: Fulfilling Namur Recommendations

    NAMUR recommendation NE 53 in respect to compat- ibility. VEGA instruments are generally upward and downward compatible: Sensor software to DTM VEGAPULS 63 HART, PA or FF DTM VEGAPULS 63 for adjustment software PACTware™ Indicating and adjustment module for sensor software The parameter adjustment of the basic sensor functions is independent of the software version.

  • Page 8: Safety Instructions For Ex Areas

    Modifications not expressly approved by VEGA will lead to expiry of the operating licence according to FCC/IC. VEGAPULS 63 is in conformity with part 15 of the FCC directives and fulfills the RSS-210 regulations. Note the corresponding regulations for operation:...

  • Page 9: Functional Range Of Approved Instruments

    The environment man- agement system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environ- mental instructions in this manual: Chapter "Packaging, transport and storage" Chapter "Disposal" VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 10: Product Description

    Product description 3 Product description 3.1 Configuration The VEGAPULS 63 radar sensor is available in two electronics Versions versions: Standard electronics type PS60KH Electronics with increased sensitivity type PS60KD The respective version can be determined by means of the type label on the electronics.

  • Page 11: Principle Of Operation

    It is particularly suitable for small vessels that contain aggressive liquids under easy process conditions. The electronics version "Increased sensitivity" enables the use of VEGAPULS 63 also in applications with very bad reflective properties or products with low e value.

  • Page 12: Operation

    "Heating for indicating and adjustment module". This function is generally not available for approved instruments. 3.3 Operation VEGAPULS 63 can be adjusted with different adjustment media: with the indicating and adjustment module with the suitable VEGA DTM in conjunction with an adjustment software according to the FDT/DTM standard, e.g.

  • Page 13: Mounting

    Use the recommended cables (see chapter "Connecting to Moisture power supply") and tighten the cable gland. You can give your VEGAPULS 63 additional protection against moisture penetration by leading the connection cable down- ward in front of the cable entry. Rain and condensation water can thus drain off.

  • Page 14: Mounting Instructions

    (max. measuring distance) Measuring range Reference plane Make sure that the wetted parts of VEGAPULS 63, especially Wetted materials the seal and process fitting, are suitable for the existing process conditions such as pressure, temperature etc. as well as the chemical properties of the medium.
  • Page 15 Fig. 5: Vessel with conical bottom Do not mount the instruments in or above the filling stream. Inflowing medium Make sure that you detect the product surface and not the inflowing product. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 16 Mounting on socket If the reflective properties of the medium are good, you can mount VEGAPULS 63 on a socket piece. You will find recommended values for socket heights in the following illustration. The socket end should be smooth and burr-free, if possible also rounded.
  • Page 17 If there are agitators in the vessel, a false echo storage should Agitators be carried out with the agitators in motion. This ensures that the interfering reflections from the agitators are saved with the blades in different positions. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 18 Make sure you provide the necessary upper vent hole in the surge pipe. The hole must be aligned so that it and the polarisation marking on the sensor are in the same plane (see illustration: "Pipe antenna system in a tank"). VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 19 Align the sensor in such a way that the polarisation marking on the process fitting is in the same plane as the tube holes or the tube connection openings (see illustration: "VEGAPULS in a bypass tube"). VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 20 Mounting 100% Fig. 12: VEGAPULS 63 in a bypass tube. The polarisation marking on the process fitting must be in one plane to the tube holes or the tube connection openings. Marking of the polarisation direction When the sensor is mounted on a bypass tube, the distance from VEGAPULS 63 to the upper tube connection should be approx.

  • Page 21: Connecting To Power Supply

    EN 61326 for industrial areas, screened cable should be used. For HART multidrop operation we recommend as standard practice the use of screened cable. On VEGAPULS 63 with cable gland ½ NPT and plastic Cable gland ½ NPT housing, a metal ½" threaded insert is moulded in the plastic housing.

  • Page 22: Connection Steps - Instrument Housing

    5 Insert the cable into the sensor through the cable entry 6 Lift the opening levers of the terminals with a screwdriver (see following illustration) 7 Insert the wire ends into the open terminals according to the wiring plan VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 23: Wiring Plan, Single Chamber Housing

    12 Screw the housing cover back on The electrical connection is finished. 5.3 Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex ia version. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 24 Fig. 15: Electronics and connection compartment, single chamber housing Plug connector for VEGACONNECT (I²C interface) Spring-loaded terminals for connection of the external indication VEGADIS Ground terminal for connection of the cable screen Spring-loaded terminals for voltage supply VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 25: Wiring Plan, Double Chamber Housing

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 26 Terminals for VEGADIS 61 Connection compartment I ² C Fig. 19: Connection compartment, double chamber housing Plug connector for VEGACONNECT (I²C interface) Ground terminal for connection of the cable screen Spring-loaded terminals for voltage supply VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 27: Wiring Plan, Double Chamber Housing Exd

    Housing cover, electronics compartment Filter element for pressure compensation or blind stopper with version IP 66/ IP 68, 1 bar Cable entry or plug Version IP 66/IP 68, 1 bar not with four-wire instruments VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 28 Internal connection cable to the connection compartment Terminals for VEGADIS 61 Connection compartment Fig. 23: Connection compartment, double chamber housing Exd Spring-loaded terminals for power supply and cable screen Ground terminal for connection of the cable screen VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 29: Wiring Plan, Version Ip 66/Ip 68, 1 Bar

    (+) and blue (-) to power supply or to the processing system Screen 5.7 Switch-on phase After connecting VEGAPULS 63 to power supply or after a Switch-on phase voltage recurrence, the instruments carries out a self-check for approx. 30 seconds: Internal check of the electronics Indication of the instrument type, the firmware as well as...

  • Page 30: Set Up With The Indicating And Adjustment Module Plicscom

    - each displaced by 90°) 3 Press the indicating and adjustment module onto the electronics and turn it to the right until it snaps in. 4 Screw housing cover with inspection window tightly back VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 31 Fig. 26: Installation of the indicating and adjustment module Note: If you intend to retrofit VEGAPULS 63 with an indicating and adjustment module for continuous measured value indication, a higher cover with an inspection glass is required.

  • Page 32: Adjustment System

    The functions of the individual keys are shown in the above illustration. Approx. 10 minutes after the last pressing of a key, an automatic reset to measured value indication is triggered. Any values not confirmed with [OK] will not be saved. VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 33: Setup Procedure

    PACTware™ or DTM. HART mode Standard Address 0 As VEGAPULS 63 is a distance measuring instrument, the Parameter adjustment distance from the sensor to the product surface is measured. To have the real product level displayed, an allocation of the measured distance to the percentage height must be made.
  • Page 34 Keep in mind that the max. level must lie below the dead band. 3 Save the settings with [OK] and move to "Medium selection" with [->]. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 35 first select "Liquid" or "Solid". Medium Liquid Information: With VEGAPULS 63 with electronics version "Increased safety", "Solid" is preset as factory setting. However, the instrument should be used preferably in liquids. In such cases, the medium selection should be set to "Liquid" during setup.
  • Page 36 [->] key. Caution: Note the following, if VEGAPULS 63 is used as part of an overfill protection system according to WHG: If a linearisation curve is selected, the measuring signal is no longer compulsorily linear proportional to the level.
  • Page 37 The menu item "Extended setting" offers the possibility to Extended setting/Quick level change optimise VEGAPULS 63 for applications with quick level changes. For this purpose select the function "Quick level change >1 m/min.". Extended setting None Note: Since with the function "Quick level change >1 m/min."...

  • Page 38: Basic Adjustment

    30 m(d) (VEGAPULS 61, 63, 65, 67) Min. adjustment 35 m(d) (VEGAPULS 62, 66) 70 m(d) (VEGAPULS 68) Medium Liquid Vessel form not known Damping Linearization linear Sensor-TAG Sensor Displayed value Distance Extended settings None Sensor-specific basic adjustment. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 39 You will find a detailed description of these menu items in the operating instructions manual "Indicating and adjustment module". Special parameters are parameters which are set customer-specifically on the service level with the adjustment software PACTware™. VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 40: Menu Schematic

    Diagnostics Service Info Displayed value Display unit Scaling Lighting ▼ Scaled Volume 0 % = 0.0 m³ Switched off m³ 100 % = 100 m³ Diagnostics Basic adjustment Display ▶ Diagnostics Service Info VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 41 Basic adjustment Display Diagnostics Service ▶ Info Sensor type Date of manufacture Last change using PC Sensor characteristics VEGAPULS 6x 15. December 2006 Software version Display now? Serial number 3.32 15. December 2006 12345678 VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 42: Saving The Parameter Adjustment Data

    They are hence available for multiple use or service purposes. If VEGAPULS 63 is equipped with an indicating and adjust- ment module, the most important data can be read out of the sensor into indicating and adjustment module. The procedure is described in the operating instructions manual "Indicating...

  • Page 43: Setup With Pactware™ And Other Adjustment Programs

    RS232 connection VEGAPULS 63 I²C adapter cable for VEGACONNECT 3 Necessary components: VEGAPULS 63 PC with PACTware™ and suitable VEGA DTM VEGACONNECT 3 with I²C adapter cable (article no. 2.27323) Power supply unit VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 44: Parameter Adjustment With Pactware

    With power supply units with integrated HART resistance (internal resistance approx. 250 Ohm), an additional external resistance is not necessary. This applies, e.g. to the VEGA instruments VEGATRENN 149A, VEGADIS 371, VEGAMET 381). Also usual Ex separators are most of the time equipped with a sufficient current limitation resistor.

  • Page 45: Parameter Adjustment With Ams™ And Pdm

    All currently available VEGA DTMs are provided in the DTM Collection on CD and can be obtained from the responsible VEGA agency for a token fee. This CD includes also the up-to- date PACTware™ version. The basic version of this DTM Collection incl.

  • Page 46: Maintenance And Fault Rectification

    Maintenance and fault rectification 8 Maintenance and fault rectification 8.1 Maintenance When used as directed in normal operation, VEGAPULS 63 is completely maintenance free. 8.2 Remove interferences VEGAPULS 63 offers maximum reliability. Nevertheless faults Causes of malfunction can occur during operation. These may be caused by the following, e.g.:...
  • Page 47 E036 no operable sensor software à Carry out a software update or send the instrument for repair E041, E042, E043 Hardware error, electronics defective à Exchange instrument or return instrument for repair VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 48: Exchange Of The Electronics Module

    PS-E.60KHD (D = approvals KX, KF according to VEGA product list) PS-E.60KHE (E = approvals CX, DX, CK, CI, DM, XM, CM, DI, EX, GI, GX, UX, UF according to VEGA product list) Oscillator PS-E.60KD is suitable for K band VEGAPULS 61, 4 … 20 mA/HART with in- creased sensitivity 62, 63 - 4 …...

  • Page 49: Instrument Repair

    PS-E.60KDD (D = approvals KX, KF according to VEGA product list) PS-E.60KDE (E = approvals CX, DX, CK, CI, DM, XM, CM, DI, EX, GI, GX, UX, UF according to VEGA product list) 8.4 Instrument repair If a repair is necessary, please proceed as follows: You can download a return form (23 KB) from the Internet on our homepage www.vega.com under: "Downloads - Forms...

  • Page 50: Dismounting

    Correct disposal avoids negative effects to persons and environment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you cannot dispose of the instrument properly, please contact us about disposal methods or return. VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 51: Supplement

    Power supply Damping (63 % of the input variable) 0 … 999 s, adjustable Fulfilled NAMUR recommendations NE 43 Input variable Parameter distance between process fitting and product surface VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 52 >1 s (dependent on the parameter adjustment) Max. level change adjustable up to 1 m/min. (dependent on the parameter adjustment) Time to output the correct level (with max. 10 % deviation) after a sudden level change. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 53 10 mm 3 mm 0,5 m 20 m -3 mm -10 mm Fig. 30: Accuracy VEGAPULS 63 in mm, measuring range in m 0.394 in 0.118 in 1.640 ft 65.62 ft - 0.118 in -0.394 in Fig. 31: Accuracy VEGAPULS 63 in Inch, measuring range in ft Incl.
  • Page 54 30 mm 15 mm 1,0 m 20 m -15 mm -30 mm Fig. 32: Accuracy VEGAPULS 63 with increased sensitivity in mm, measuring range in m 1.180 in 0.590 in 3.280 ft 65.62 ft - 0.590 in - 1.180 in Fig.
  • Page 55 -40 … +130 °C (-40 … +266 °F) lated, process seal EPDM Vibration resistance mechanical vibrations with 4 g and 5 … 100 Hz Not suitable for SIL applications Tested according to the regulations of German Lloyd, GL directive 2 VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 56 - wire resistance <0.036 Ohm/m - Tensile strength >1200 N (270 lbf) - Standard length 5 m (16.404 ft) Depending on the version M12x1, according to DIN 43650, Harting, Am- phenol-Tuchel, 7/8" FF. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 57 20 … 30 V DC - EExd ia instrument 20 … 36 V DC Permissible residual ripple - <100 Hz <1 V - 100 Hz … 10 kHz <10 mV Load see diagram VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 58 20 … 30 V DC - EExd ia instrument 20 … 36 V DC Permissible residual ripple - <100 Hz <1 V - 100 Hz … 10 kHz <10 mV Load see diagram VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 59 ATEX II 1G, 1/2G, 2G EEx ia IIC T5 + ATEX II 1/ 2D IP6X T6 Prerequisite for maintaining the protection is a suitable cable. Available or applied for, depending on the order specification. Deviating data with Ex applications: see separate safety instructions. VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 60 III, Div 1 (IS); FM CI.I-III, Div 1 (IS)+Cl.I-III, Div 1 Gr.C-G(XP) CSA CI.I, Div2 (NI)+CI.II, III, Div1 (DIP);CSA CI. I-III, Div 1 (IS); CSA CI.I-III, Div 1 (IS)+Cl.I-III, Div 1 Gr.C-G(XP) Ship approvals GL, LRS, ABS, CCS, RINA Others VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 61: Dimensions

    M20x1,5/ ½ NPT Fig. 37: Housing versions in protection IP 66/IP 68, 1 bar (with integrated PLICSCOM the housing is 9 mm/0.35 in higher) Stainless steel housing Aluminium double chamber housing Aluminium housing VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 62 1" " 8xø " " " Fig. 38: VEGAPULS 63, flange version DN 50 and 2" DN 80 … DN 150 and 3" … 6" Diameter and number of holes in the flange VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 63 241,3 8xø22,4 215,9 6" 150 lb Fig. 39: VEGAPULS 63, low temperature flange version DN 50 and 2" DN 80 … DN 150 and 3" … 6" Diameter and number of holes in the flange VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 64 ø 66mm ø 50mm ") ") ø 90mm ") ø 78mm ø 90mm ") ") Fig. 40: VEGAPULS 63, hygienic fitting 1 NeumoBiocontrol Tuchenhagen Varivent DN 25 Hygienic fitting LA Hygienic fitting LB VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 65 DN 80 / 3,5” ø 106 DN 100 / 4” ø 119 Fig. 41: VEGAPULS 63, hygienic fitting 2 Tri-Clamp DN 50, 2", 2½", DN 65, 3" Tri-Clamp DN 80, 3½", DN 100, 4" VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 66 ") ø 94mm ") ø 133mm ") Fig. 42: VEGAPULS 63, hygienic fitting 3 Bolting DIN 11851, DN 50, 2" and 3" Bolting DIN 11851, DN 80, 4" Bolting DIN 11864-2, DN 50 Bolting DIN 11864-2, DN 80 VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 67 Supplement VEGAPULS 63, hygienic fitting 4 ø 84mm ") ø 114mm ") Fig. 43: VEGAPULS 63, hygienic fitting 4 SMS DN 51 SMS DN 76 VEGAPULS 63 - 4 ... 20 mA/HART...

  • Page 68: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellectuelle. Pour plus d'informations, on pourra se référer au site http://www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad industrial. Para mayor información revise la pagina web http://www.vega.com.
  • Page 69 Supplement VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 70 Supplement VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 71 Supplement VEGAPULS 63 - 4 ... 20 mA/HART...
  • Page 72 All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information avail- able at the time of printing. © VEGA Grieshaber KG, Schiltach/Germany 2007 Subject to change without prior notice 28436-EN-070412...
