8 | StorageGRID Webscale 10.4 Appliance Installation and Maintenance Guide

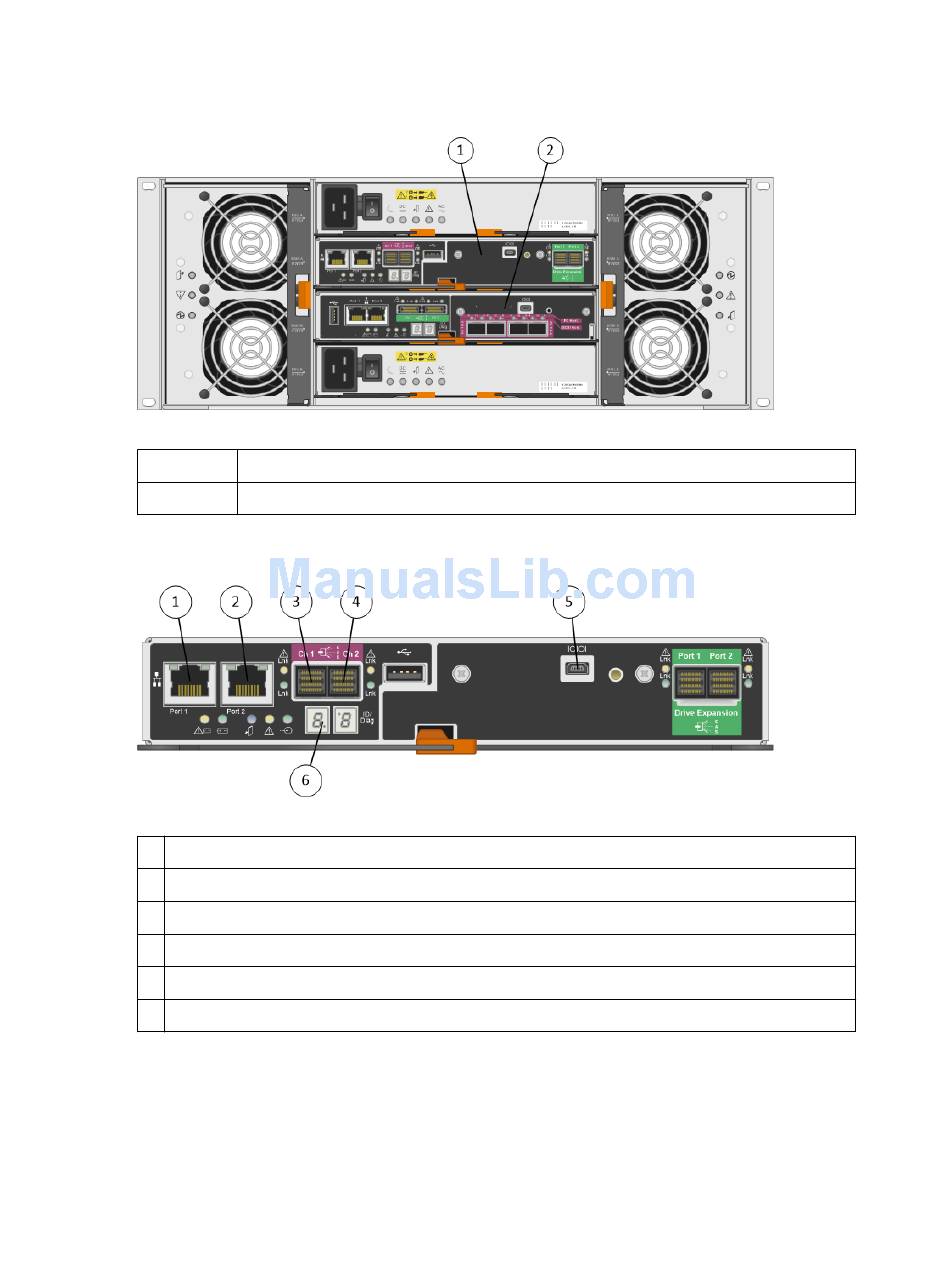

Model SG5660 4U: Rear view of the E2700 controller and E5600SG controller
The E2700 controller is above the E5600SG controller.
1
E2700 controller
2
E5600SG controller
Rear view of the E2700 controller
1 Management port 1 (connects to the network where SANtricity Storage Manager is installed)
2 Management port 2 (used during installation to connect to a laptop)
3 SAS interconnect port 1
4 SAS interconnect port 2
5 Serial connection port
6 Seven-segment display
Note:
The two SAS ports labeled Drive Expansion (green) on the rear of the E2700 controller are
not used. The StorageGRID Webscale appliance does not support expansion drive shelves.
Rear view of the E5600SG controller
