16 | StorageGRID Webscale 10.4 Appliance Installation and Maintenance Guide

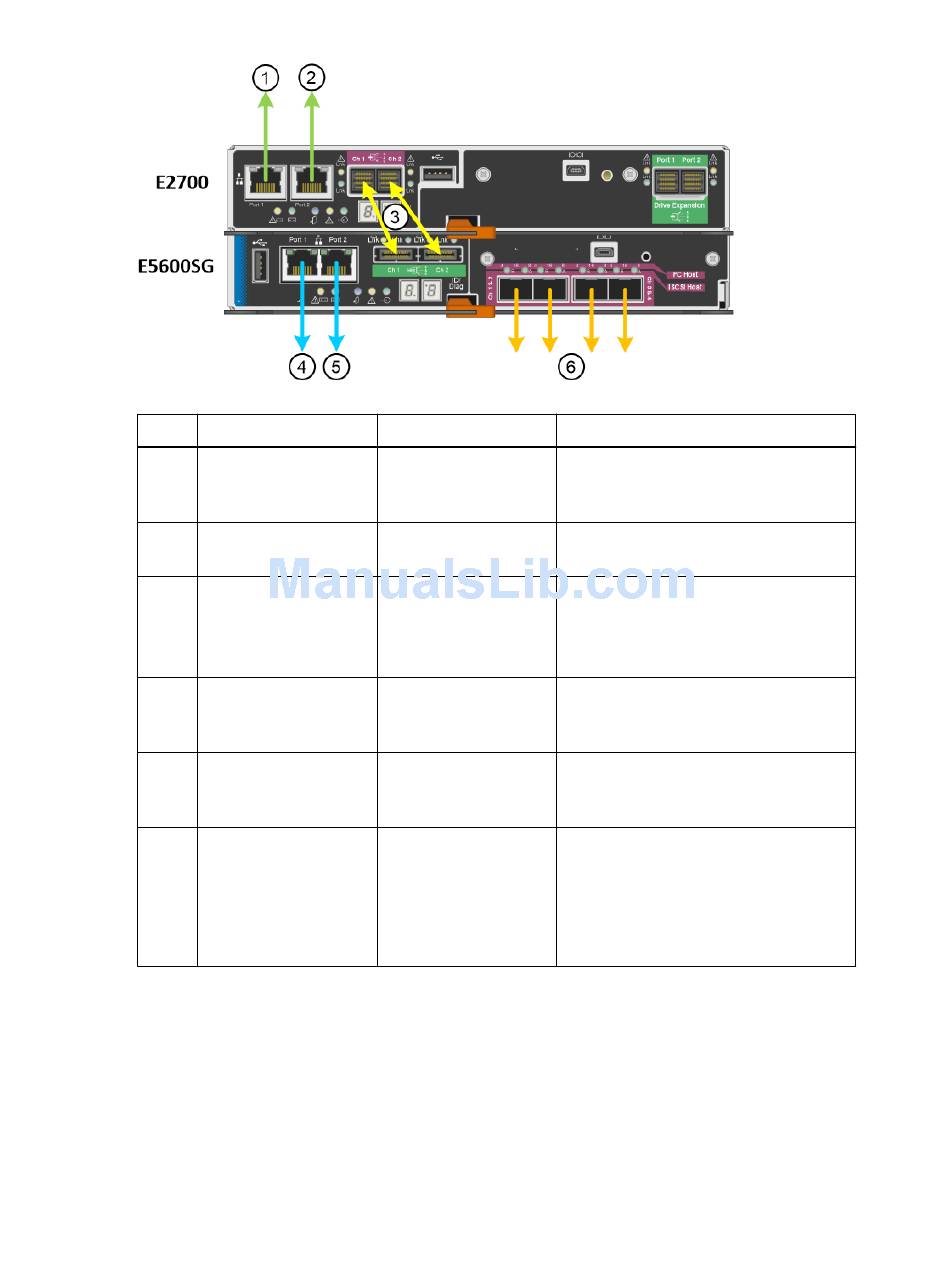

Item Port
1 Management port 1 on
the E2700 controller
2 Management port 2 on
the E2700 controller
3 Two SAS interconnect
ports on each
controller, labelled Ch
1 and Ch 2
4 Management port 1 on
the E5600SG
controller
5 Management port 2 on
the E5600SG
controller
6 Four network ports on
the E5600SG
controller
Connections for the 10-GbE ports on the E5600SG controller
The four network ports on the E5600SG controller are bonded together to provide redundant paths to
the controller, as follows:
• Fixed Port Configuration (default) – Ports 2 and 4 control the Grid network, and ports 1 and 3
control the Client network, if enabled. The ports can be bonded in active-backup mode or in Link
Aggregation Control Protocol mode (LACP IEEE 802.3ad).
◦
In active-backup mode (default), only one port is active at a time. If the active port fails, its
backup port automatically provides a failover connection. When you use fixed port
configuration, port 4 provides a backup path for port 2 (Grid network), and port 3 provides a
backup path for port 1 (Client network).
Type of port Function
1-Gb (RJ-45) Ethernet Connects the E2700 controller to the
network where SANtricity Storage
Manager is installed.
1-Gb (RJ-45) Ethernet Connects the E2700 controller to a
service laptop during installation.
E2700 controller: Connect the two controllers to each
mini-SAS-HD other.
E5600SG controller:
mini-SAS
1-Gb (RJ-45) Ethernet Connects the E5600SG controller to the
Admin network for StorageGRID
Webscale.
1-Gb (RJ-45) Ethernet Connects the E5600SG controller to a
service laptop during installation.
10-GbE (optical) Connect the E5600SG controller to the
Grid network and to the Client network
(if used) for StorageGRID Webscale.
The ports can be bonded together to
provide redundant paths to the
controller.
