PCI-DAS4020/12 User's Guide
GND
+5V
GND
NC
GND
NC
GND
NC
GND
FIRSTPORTB BIT 1
FIRSTPORTB BIT 2
FIRSTPORTB BIT 3
FIRSTPORTB BIT 4
FIRSTPORTB BIT 5
FIRSTPORTB BIT 6
FIRSTPORTB BIT 7
NC

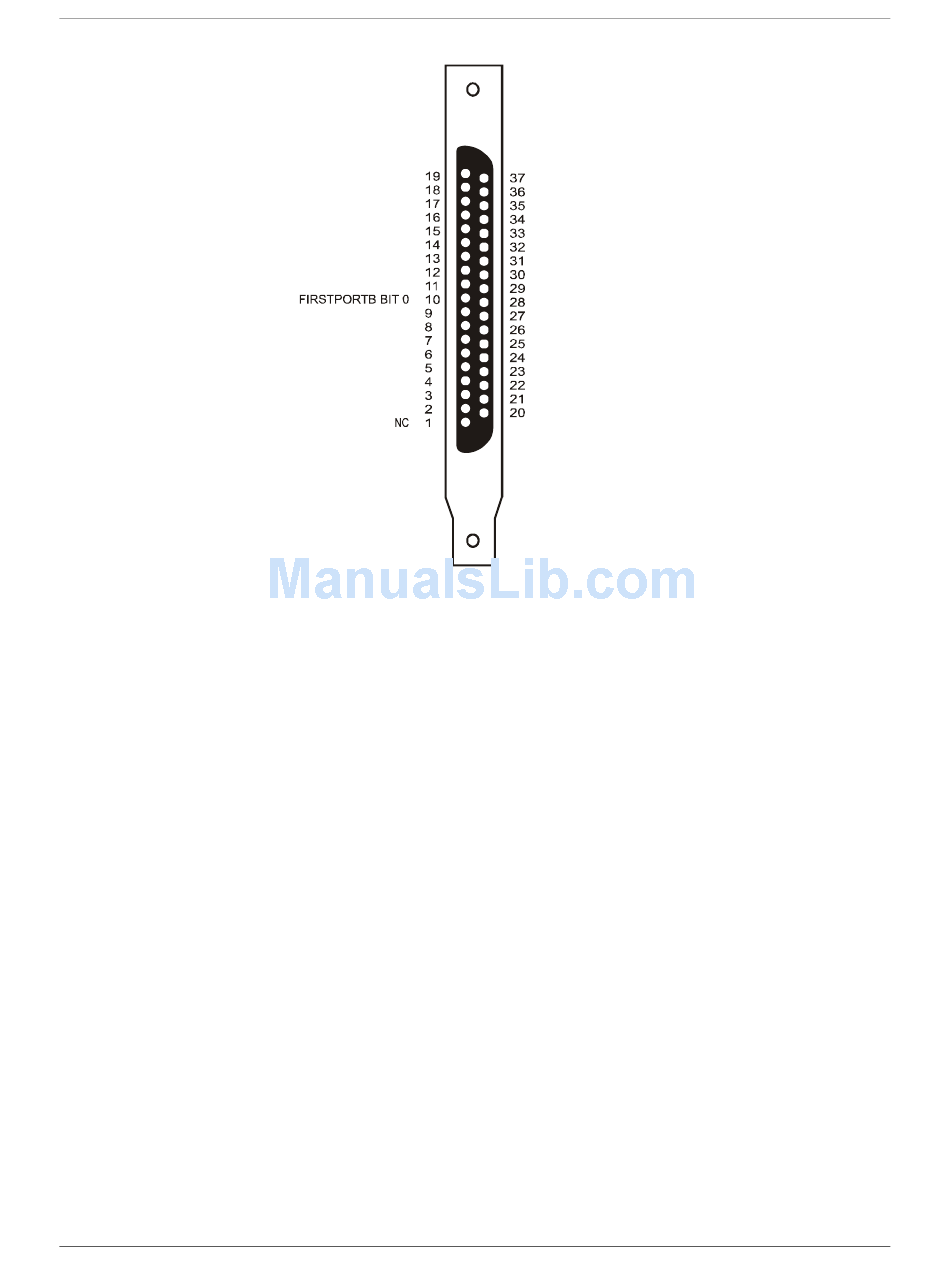

Figure 5. BP40-37 cable pin out
14
Installing the PCI-DAS4020/12
FIRSTPORTA BIT 0
FIRSTPORTA BIT 1
FIRSTPORTA BIT 2
FIRSTPORTA BIT 3
FIRSTPORTA BIT 4
FIRSTPORTA BIT 5
FIRSTPORTA BIT 6
FIRSTPORTA BIT 7
FIRSTPORTC BIT 0
FIRSTPORTC BIT 1
FIRSTPORTC BIT 2
FIRSTPORTC BIT 3
FIRSTPORTC BIT 4
FIRSTPORTC BIT 5
FIRSTPORTC BIT 6
FIRSTPORTC BIT 7
GND
+5V
