PCI-DAS4020/12 User's Guide
Pin out – auxiliary connector
The pin out for the board's 40-pin on-board auxiliary connector (labeled
is identified by a beveled edge on the board silkscreen.
FIRSTPORTC Bit 5 (Start Trigger In/Ext Clock)
FIRSTPORTC Bit 6 (A/D Stop Trigger In)
FIRSTPORTC Bit 7 (A/D Pacer Gate)
* Pin 1 and pin 3 have 10 K pull-up resistors installed.
Use pin 38 for analog output return
When using the analog output pins D/A OUT 0 (pin 39) and D/A OUT 1 (pin 40), use D/A GND only (pin 38)
for the return.

Cabling

For signal connections and termination, you can use the CIO-MINI40 screw terminal board and C40FF-x cable.
For connections to 37-pin screw terminal boards, you can use the C40-37F-x cable.
2
40
40-pin Female
IDC Connector
40-pin auxiliary connector P3
Signal Name Pin
D/A OUT 1 40
D/A GND 38
FIRSTPORTA Bit 0 36
FIRSTPORTA Bit 1 34
FIRSTPORTA Bit 2 32
FIRSTPORTA Bit 3 30
FIRSTPORTA Bit 4 28
FIRSTPORTA Bit 5 26
FIRSTPORTA Bit 6 24
FIRSTPORTA Bit 7 22
FIRSTPORTC Bit 0 20
FIRSTPORTC Bit 1 18
FIRSTPORTC Bit 2 16
FIRSTPORTC Bit 3 14
FIRSTPORTC Bit 4 12
10
8
6
GND 4
+5V 2
↓
PCI slot
1
39

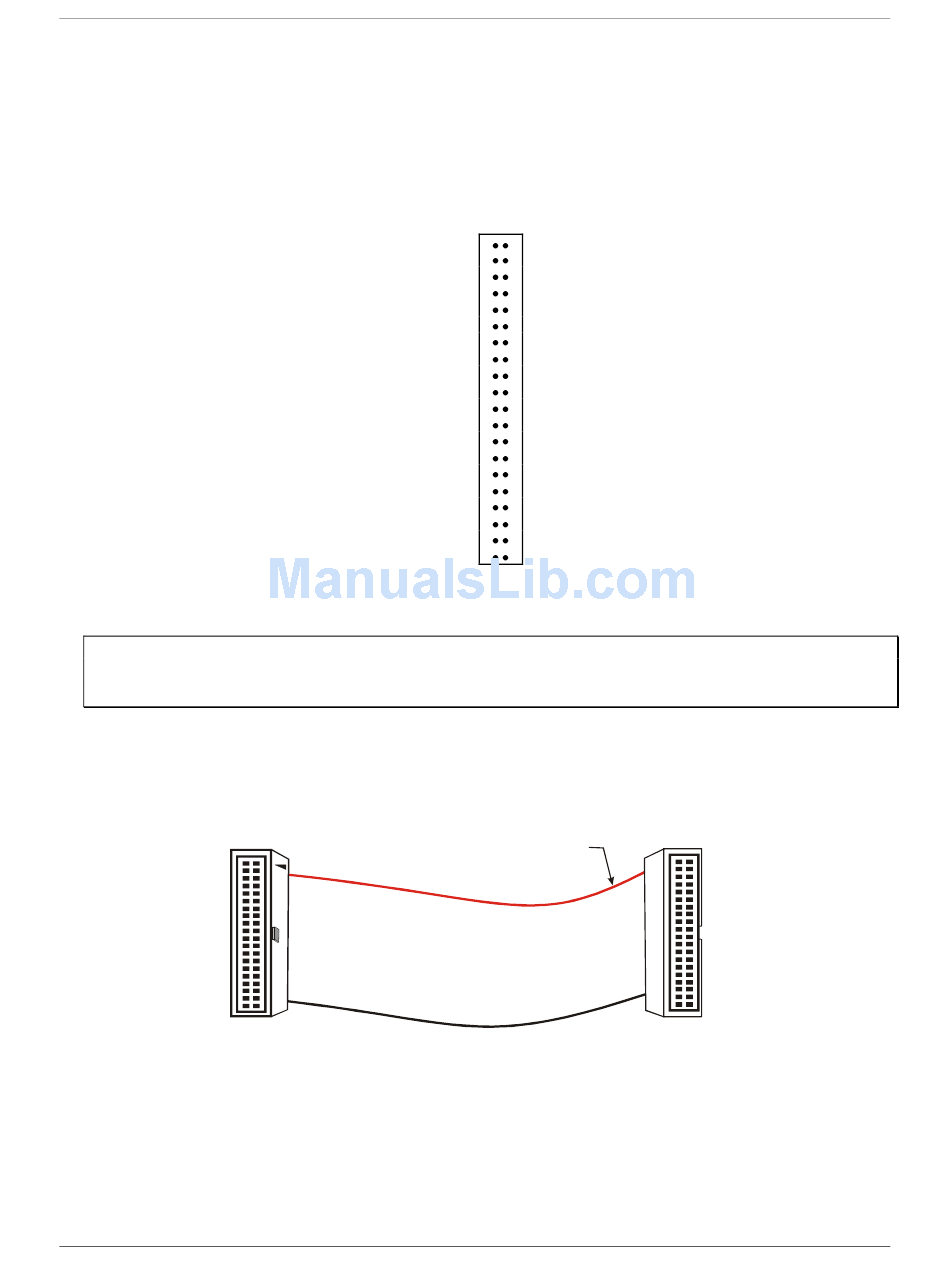

Figure 2. C40FF-x cable
12
on the board) is listed below. Pin 1
P3
Pin Signal Name
39 D/A OUT 0
37 GND
35 +5V
33 GND
31 n/c
29 GND
27 n/c
25 GND
23 n/c
21 GND
19 FIRSTPORTB Bit 0
17 FIRSTPORTB Bit 1
15 FIRSTPORTB Bit 2
13 FIRSTPORTB Bit 3
11 FIRSTPORTB Bit 4
9 FIRSTPORTB Bit 5
7 FIRSTPORTB Bit 6
5 FIRSTPORTB Bit 7
3 INTERRUPT ENABLE *
1 INTERRUPT IN *
The red stripe
identifies pin # 1
2
40
40-pin Female
IDC Connector
Installing the PCI-DAS4020/12
1
39
