5. Menu Operations

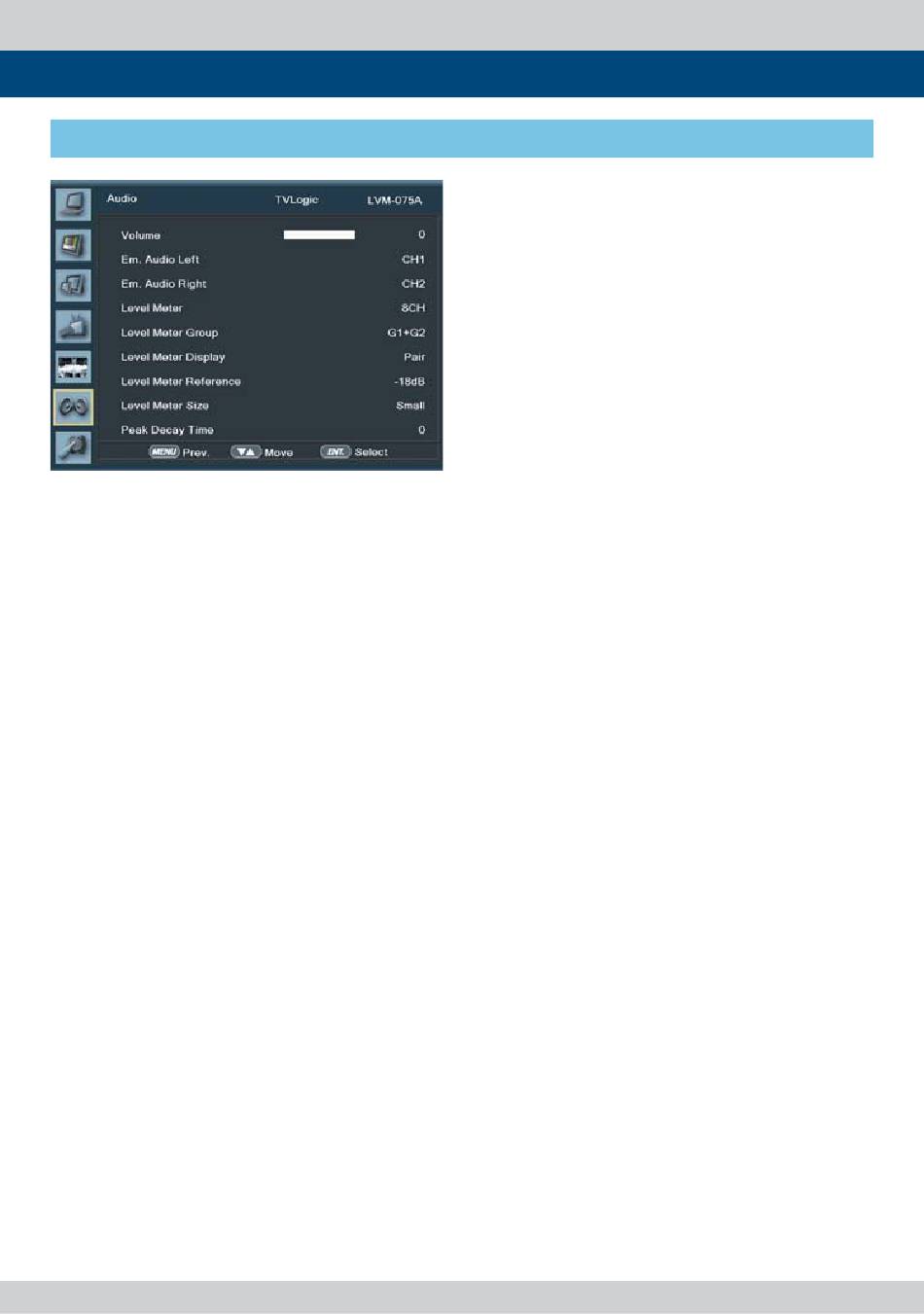

[6] Audio

• • Volume
- Used to control the output volume for the
internal speakers or [AUDIO OUT] on the back
of the monitor.
- Control range is from 0 to 30.
• • Em. Audio Left/Right
- Used to set embedded audio channel for
internal speaker or [AUDIO OUT] terminal on
the back of the monitor.
- In SDI mode one of the Off or CH1~CH16 can
be selected. In HDMI mode, Left and Right
are set to CH1 and CH2 respectivley.
- HDMI Input: Channel 1 is displayed on the top
left and Channel 2 is displayed on the top
right.
• • Level Meter
- Used to set the Level Meter for the embedded
audio.
- Available options are OFF, 4 CH(HOR.) and 4
CH(VER.)
- SDI Input : [Off ]-[4CH(Hor.)]-[4CH(Ver.)]
- HDMI Input: [Off ]-[2CH(Hor.)]-[2CH(Ver.)]
* 4 CH(HOR.) : Displays 2 channels on top
left and 2 channels on top right of the screen
horizontally.
* 4 CH(VER.) : Displays 2 channels on center
left and 2 channels on top right of the screen
vertically.
• • Level Meter Group
- Used to set the level meter group.
- Available modes are as below.
• • Level Meter Display (SDI Only)
- Used to set the display method for audio level
meter.
- Activates only in SDI mode.
- Available modes are Group and Pair.
• • Level Meter Reference
- Display the default audio level meter value,
Available options are -18dB and -20dB.
- Audio level meter within selected value turns
to green and exceeded audio level is displayed
in yellow.
- Audio level exceeding -4dB is displayed in red.
• • Level Meter Size
- Used to control the size of the audio level
meters.
- Available options are NORMAL and LAGRE.
• • Peak Decay Time
- Sets the reduction time for max value
indication of audio signals.
- Control range is from MIN 0 to MAX 100. Bigger
number means a longer display time for max
value.
