IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
1. PRODUCT OVERVIEW Welcome to Binary™. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This device extends HDMI over a single category cable using HDBaseT technology allowing video and audio transmission to remote displays.

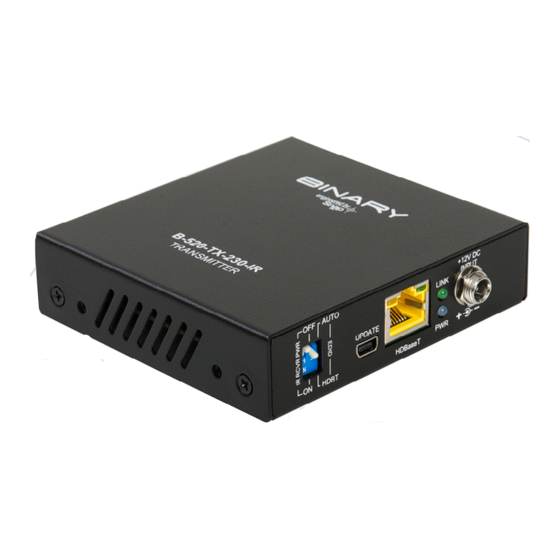

4. DEVICE LAYOUT 4.1. B-520-TX-230-IR/B-520-TX-330-IR Transmitter 12V DC AUTO INPUT Flasher Receiver HDMI IN HDMI OUT HDBT HDBaseT FIGURE 1: Transmitter Layout A. IR Flasher IR output to connect to IR Flasher B. IR Receiver IR input to connect to IR Receiver or to output of a control system C.
CAUTION: Do not connect power to the device until all other connections are made and the unit is installed. 5.1. B-520-TX-230-IR / B-520-TX-330-IR Installation 1. Run category cable from the location of the transmitter to the remote location of the receiver.
The transmission path may include a maximum of two keystones and two patch cables, as long as the total length does not exceed certain lengths. For B-520-TX-230-IR, max. is 200' for Cat5e/6 and 230' for Cat6a/7. For B-520-TX-330-IR, max. is 330' for Cat5e/6/6a/7...
Page 8
HDMI Source IR Processor / Controller IR Inputs IR Outputs B-520-TX-x30-IR Transmitter Flasher Receiver HDMI IN HDMI OUT Back Front HDBaseT B-520-RX-x30-IR Receiver Back Front IR Flasher HDTV IR Receiver FIGURE 4: IR Connections NOTE: Arrow direction indicates signal flow. A IR Receiver In 3.5 mm (1/8") Mono - See Section 6.2.2 B IR Receiver In 3.5 mm (1/8") Stereo - See Section 6.2.1 C IR Flasher Out 3.5mm Mono - See Section 6.2.3...
CAUTION: Do not connect a mono cable to this connection as damage may occur. AUTO 9V DC(Sleeve) GND (Ring) IR Signal (Tip) Pinout Configuration HDBT DIP Switches FIGURE 5: Point-to-Point IR Settings 6.2.2. Control System - Mono (3.5mm) IR When using a control system that generates the signal through a mono jack, the IR RCVR PWR switch should be in the OFF position.
6.5. EDID Configuration There are two EDID operating modes available for HDMI loopout. The EDID setting determines if the source connected to the HDMI input chooses the EDID from the display connected to the HDMI out on the transmitter and/or the display connected to the HDMI out on the HDBaseT receiver.
9. WARRANTY 2-Year Limited Warranty This Binary™ product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
