3. Connect the HDMI Out of a source component using an HDMI cable.
4. Connect the RS-232 DB-9 from a control system if being used.
5. Connect an IR control system to the IR receiver and/or IR flasher if being used. Refer to Section 6.2.
6. Connect the patch cable from the router or network switch to the ethernet port (RJ45).
7. Connect the 12V DC, 2A power supply to the latch-locking power jack, unless PoC is being
used to send power from the receiver. DO NOT plug the power supply into an AC outlet
until Receiver Installation is completed.

5.2. B-520-EXT-330-RS-IP Receiver Installation

1. Run category cable from the location of the transmitter to the remote location of the receiver.
2. Mount the receiver in the desired location.
3. Connect the category cable to the receiver.
4. Connect an IR flasher and/or IR receiver if being used. Refer to Section 6.2.
5. Connect an HDMI cable from the HDMI Out of receiver to the display.
6. Connect the RS-232 DB9 to an RS-232 controllable source if being used.
7. Connect the ethernet RJ45 to an ethernet enabled device if being used.
8. Connect the 12V DC, 2A power supply to the latch-locking power jack, unless PoC is being
used to send power from the transmitter.
9. Connect the power supply to the AC outlet.

6. APPLICATIONS

AC
Power
Note: When a power supply is connected to either the transmitter or receiver, the HDBaseT
link sends power to the other unit. Only one unit requires a power supply to be connected.
B-520-EXT-330-RS- IP Transmitter
Back
B-520-EXT-330-RS-IP Receiver
HDTV

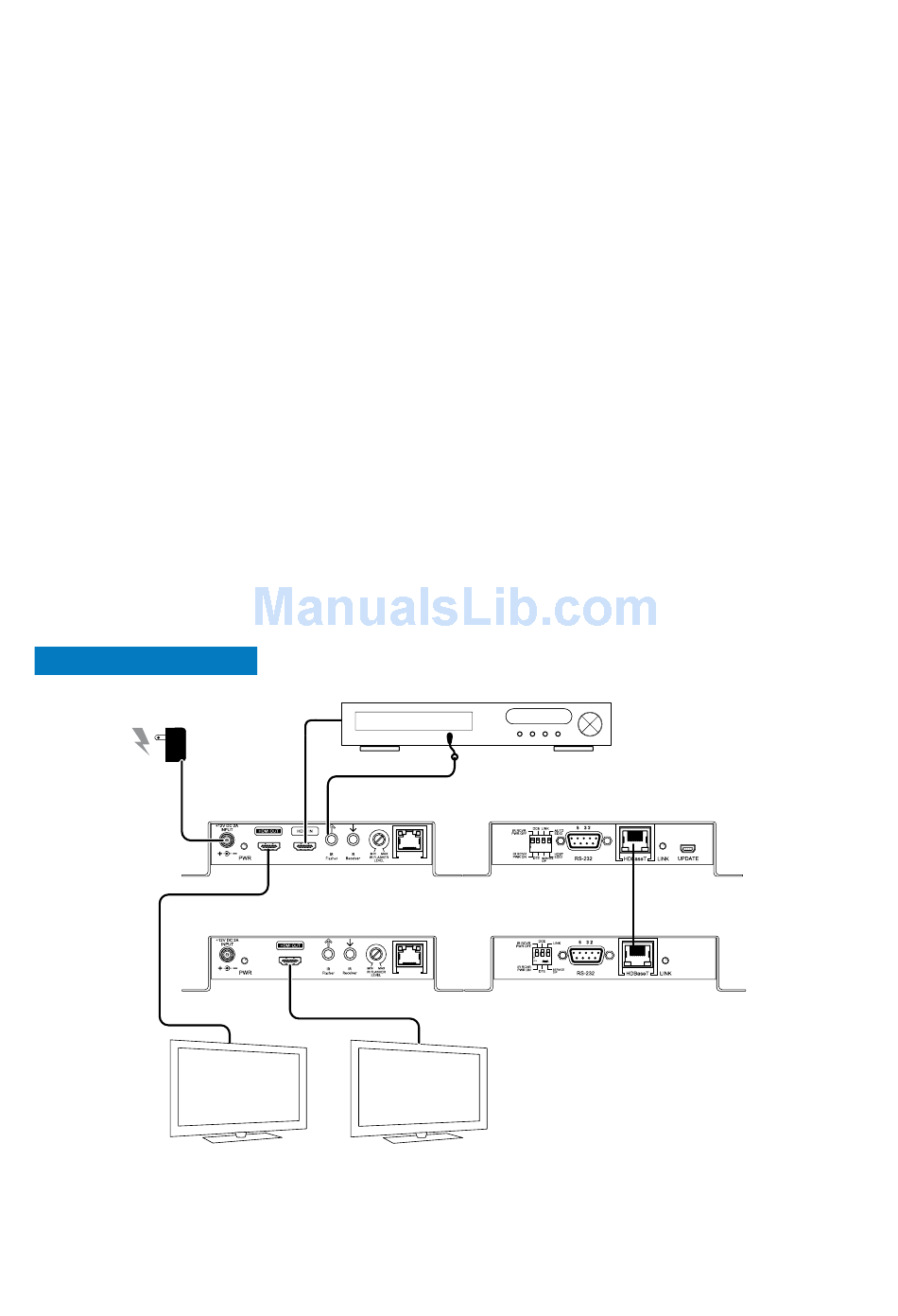

FIGURE 3 : Application Diagram
HDMI Source
PLAY
1 2 3 4
ON
Ethernet
1 2 3
Ethernet
HDTV
7
Front
