6.2.1. Point-to-Point IR Control - Stereo (3.5mm) IR Receiver

When using a powered IR receiver, the DIP switch for IR RCVR PWR should be set to ON. In
this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to the receiver.
CAUTION: DO NOT connect a mono cable to this connection as damage may occur.

6.2.2. Control System - Mono (3.5mm) IR Receiver

When using a control system which generates the signal through a mono jack, the IR RCVR
PWR switch should be in the OFF position.
1 2 3 4
ON
TRANSMITTER
9V DC (Sleeve)
GND (Ring)
IR Signal (Tip)
Pinout Configuration

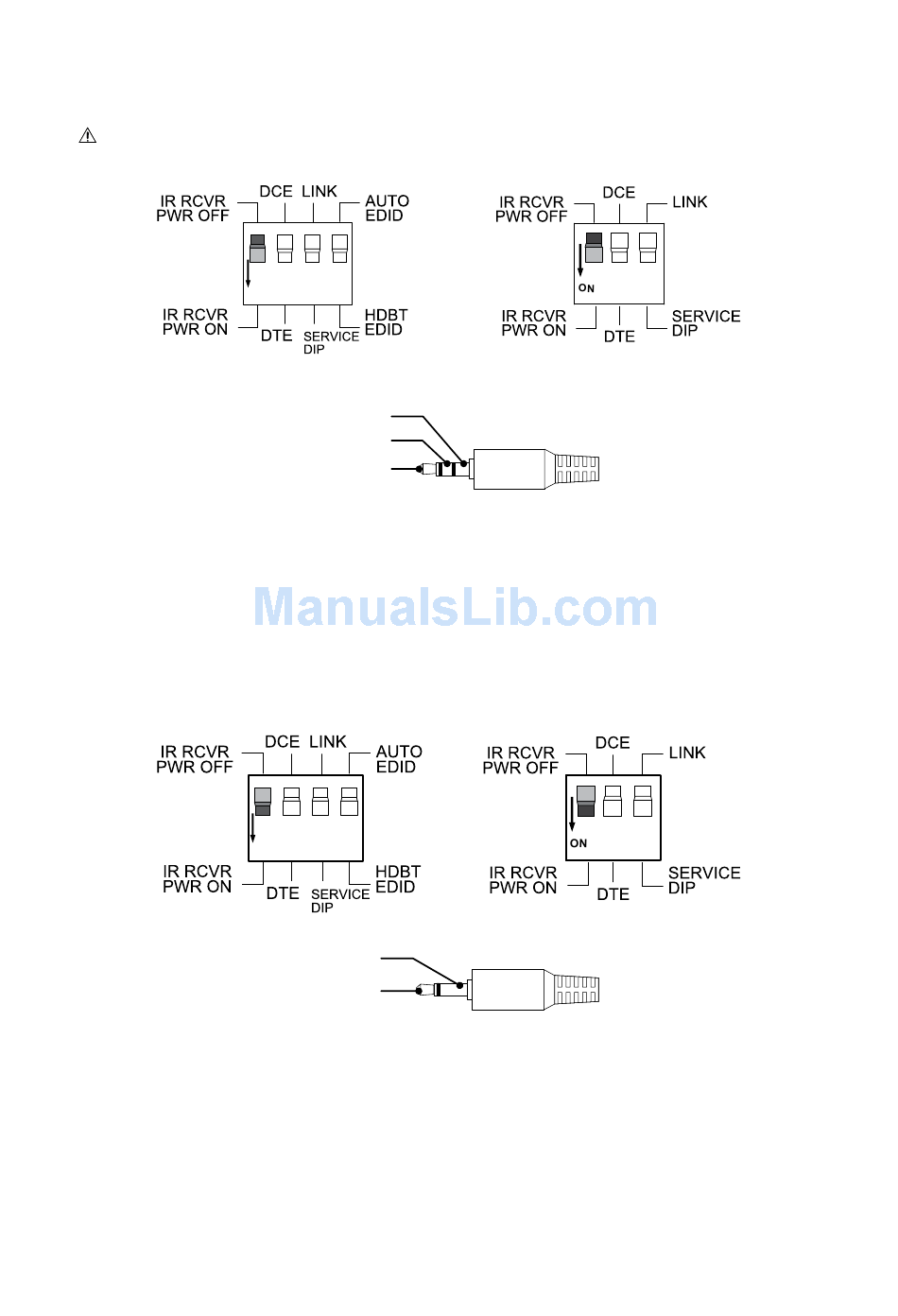

FIGURE 6: Point-to-Point IR settings
1 2 3 4
ON
TRANSMITTER
GND (Sleeve)
IR Signal (Tip)
Pinout Configuration
FIGURE 7 : Control System IR settings
1 2
RECEIVER
1 2
RECEIVER
