Summary of Contents for Binary B-520-EXT-230-RS-W

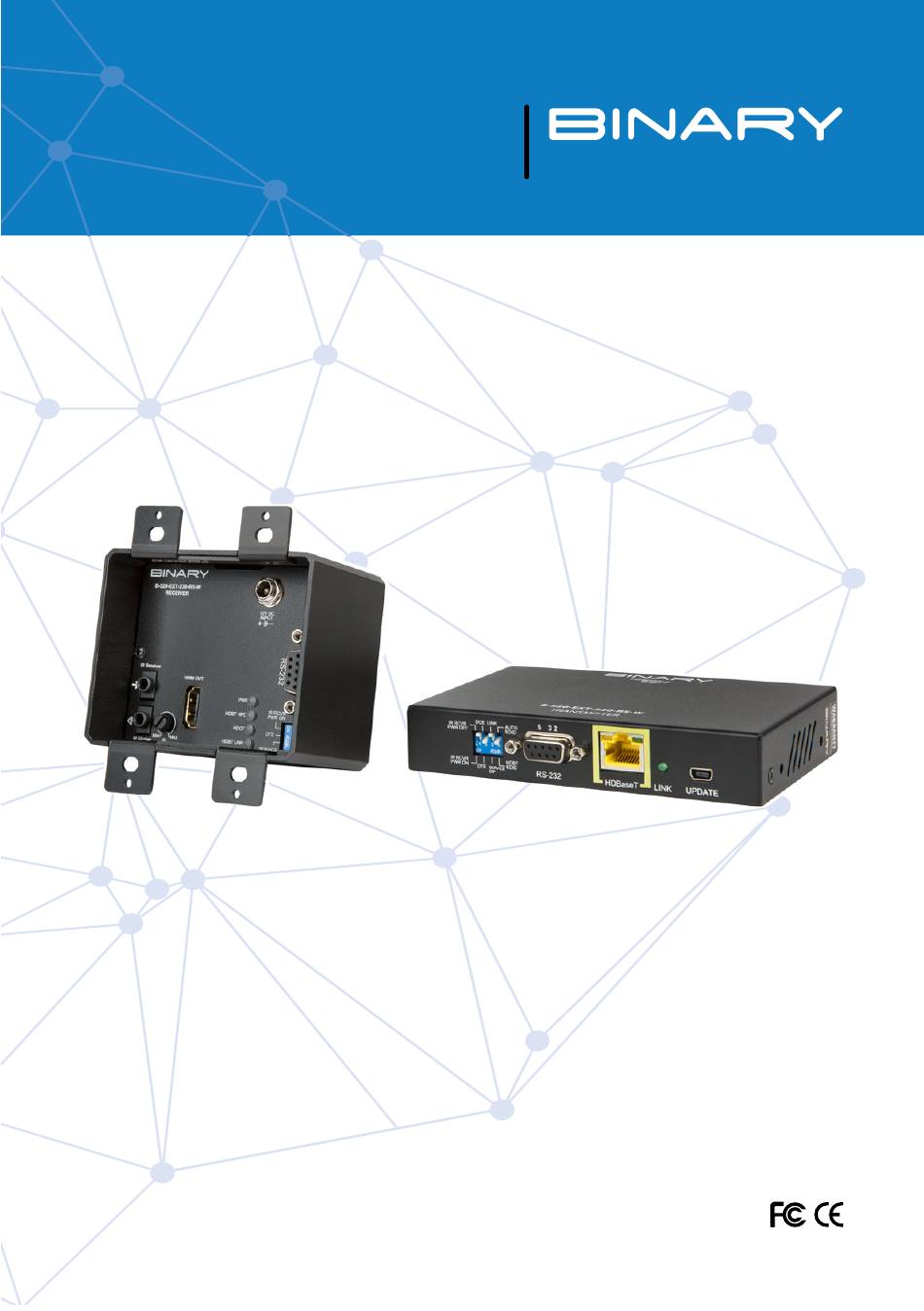

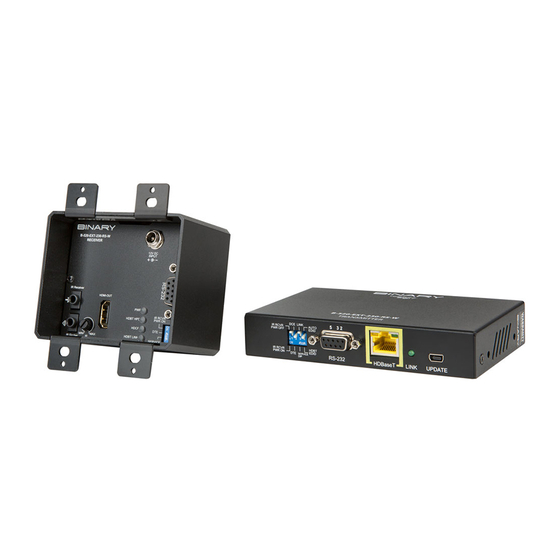

- Page 1 HDBaseT EXTENDER B-520-EXT-230-RS-W INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
-
Page 3: Table Of Contents
3. Package Contents ................................4 4. Device Layout ..................................5 4.1. B-520-EXT-230-RS-W Transmitter ......................5 4.2. B-520-EXT-230-RS-W Receiver .........................6 5. Installation ..................................7 5.1. B-520-EXT-230-RS-W Transmitter Installation ...................7 5.2. B-520-EXT-230-RS-W Receiver Installation ..................7 6. Applications ..................................8 6.1. HDBaseT Link (RJ45) Connection ......................8 6.2. IR Control Connections ..........................9 6.2.1. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This device extends HDMI over a single category cable using HDBaseT technology allowing video and audio transmission to remote displays. -
Page 5: Device Layout
4. DEVICE LAYOUT 4.1. B-520-EXT-230-RS-W Transmitter E F G Front Back FIGURE 1: Transmitter Layout A. Thread-locking Power Connector Connect to the included 12V DC, 2A power supply B. Power LED Lights up blue when the unit has power C. HDMI IN HDMI Input to connect to the HDMI output of a source D. -
Page 6: B-520-Ext-230-Rs-W Receiver
4.2. B-520-EXT-230-RS-W Receiver Front Back FIGURE 2: Receiver Layout A. HDMI Out HDMI Output to connect to the HDMI input of a sink(display) B. IR Receiver IR input to connect to IR Receiver or to output of a control system C. -
Page 7: Installation
M. HDBaseT (RJ45 ) To connect to the HDBaseT RJ45 port on transmitter 5. INSTALLATION 5.1. B-520-EXT-230-RS-W Transmitter Installation CAUTION: Do not connect power to the device until all other connections are made and the unit is installed. 1. Run category cable from the location of the transmitter to the remote location of the receiver. -
Page 8: Applications
6. APPLICATIONS HDMI Source PLAY HDMI Power B-520-EXT-230-RS-W Transmitter Back Front HDMI CAT5 B-520-EXT-230-RS-W Receiver Back Front HDMI HDTV HDTV FIGURE 3 : Application Diagram Note: When a power supply is connected to either the transmitter or receiver, the HDBaseT link sends power to the other unit. -
Page 9: Ir Control Connections
CAUTION: Pinout configurations for IR receivers and control systems vary. Before connecting to this input, review this section carefully in order to match the pinouts for the device. HDMI Source IR Processor/ Controller PLAY IR Inputs IR Outputs B-520-EXT-230-RS-W Transmitter HDBaseT Front Back Front Back B-520-EXT-230-RS-W Receiver HDTV FIGURE 5: IR Connections Note: Arrow direction indicates signal flow. -
Page 10: Point-To-Point Ir Control - Stereo (3.5Mm) Ir Receiver
6.2.1. Point-to-Point IR Control — Stereo (3.5mm) IR Receiver When using a powered IR receiver, the DIP switch for IR RCVR PWR should be set to ON. In this case a 3.5mm (1/8") stereo jack has to be used to send 9V DC power to the receiver. CAUTION: DO NOT connect a mono cable to this connection as damage may occur. -
Page 11: Ir Flasher Out - Mono (3.5Mm)
Bidirectional RS-232 signals are transmitted between the device transmitter and receiver over the category cable. The transmitter may be connected to a control system, and the receiver may be connected to an RS-232 controllable device. B-520-EXT-230-RS-W Transmitter B-520-EXT-230-RS-W Receiver Front... -
Page 12: Rs-232 Control (Db-9) Connection
6.3.1. RS-232 Control (DB-9) Connection To eliminate the need to make crossover or null modem cables, the RS-232 pinouts can be configured for DCE or DTE. Set switch 2 to DCE if the connected device is DCE, and to DTE if the connected device is DTE. -
Page 13: Hdmi Out (Transmitter)
6.4. HDMI Out (Transmitter) We recommend using an HDMI cable that is 1 meter or less to ensure the highest signal quality. This HDMI Out is used to connect to local TV/displays. 6.5. EDID Configuration There are two EDID operating modes available for HDMI loopout. The EDID setting determines if the source connected to the HDMI input chooses the EDID from the display connected to the HDMI out on the transmitter and/or the display connected to the HDMI out on the receiver... -
Page 14: Thread-Locking Power Connector
6.7 Optional Remote Power (Receiver Only) Power for the B-520-EXT-230-RS-W receiver can be supplied via a remote power source when use of the Latch-Locking Power Jack is not desired. The connection is a 2 conductor removable plug located on the rear of the B-520-EXT-230-RS-W receiver. -
Page 15: Specifications
7. SPECIFICATIONS Technical Transmitter Receiver HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 10.2 Gbps HDMI over UTP Transmission Cat 5e/6 1080i/720p 24-bit color: 200' Full HD 1080p 24-bit color: 200' Full HD 1080p 36-bit color: 200' Ultra HD 4K2K@30 Hz 115' Cat 6a/7 1080i/720p 24-bit color 230' Full HD 1080p 24-bit color 230'... -
Page 16: Support
9. WARRANTY 2-Year Limited Warranty This Binary product has a 2-Year limited warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified or disassembled.
