4.2. B-520-EXT-330-RS-IP Receiver

A B
Back of Receiver
A. Thread-locking Power Connector
Connect to the included 12V DC, 2A power Supply
B. Power LED
Lights up blue when the unit has power
C. HDMI Out
HDMI Output which could be connected to the HDMI input of a sink (display)
D. IR Flasher
IR output to connect to IR Flasher
E. IR Receiver
IR input to connect to IR Receiver or to output of a control system
F. IR Flasher level
Adjusts the intensity of the IR Flasher output
G. Ethernet (RJ45)
To communicate IP data between Transmitter and Receiver
H. DIP Switches
IR RCVR PWR OFF/ON
OFF to connect to control system | ON to connect to IR Receiver
DCE/DTE
To select if serial (RS232) communication via DB-9 is in DCE or DTE mode
LINK/SERVICE DIP
LINK for passthrough (normal) operation | SERVICE for firmware operation
I. RS-232
To communicate RS-232 command with the transmitter when connected to a control
system
J. HDBaseT (RJ45 )
To connect to the HDBaseT RJ45 port on transmitter
K. Link LED
Lights up green when synced with receiver

5. INSTALLATION

CAUTION: Do not connect power to the device until all other connections are made and the
unit is installed.

5.1. B-520-EXT-330-RS-IP Transmitter Installation

1. Run category cable from the location of the transmitter to the remote location of the receiver.
2. Mount the transmitter in the desired location.
C D E F G
Ethernet

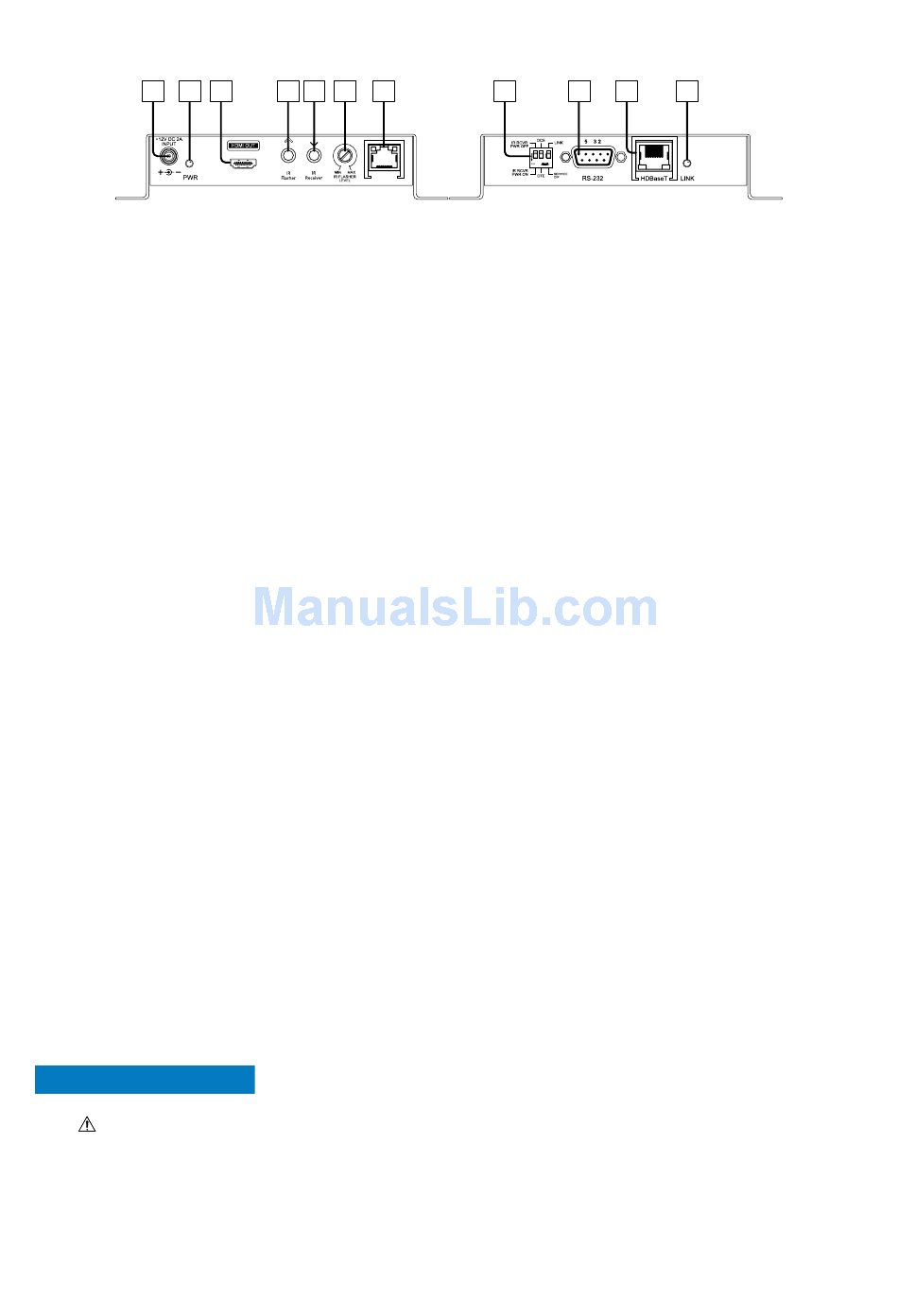

FIGURE 2: Receiver Layout
H I
1 2 3
Front of Receiver
6
J K
