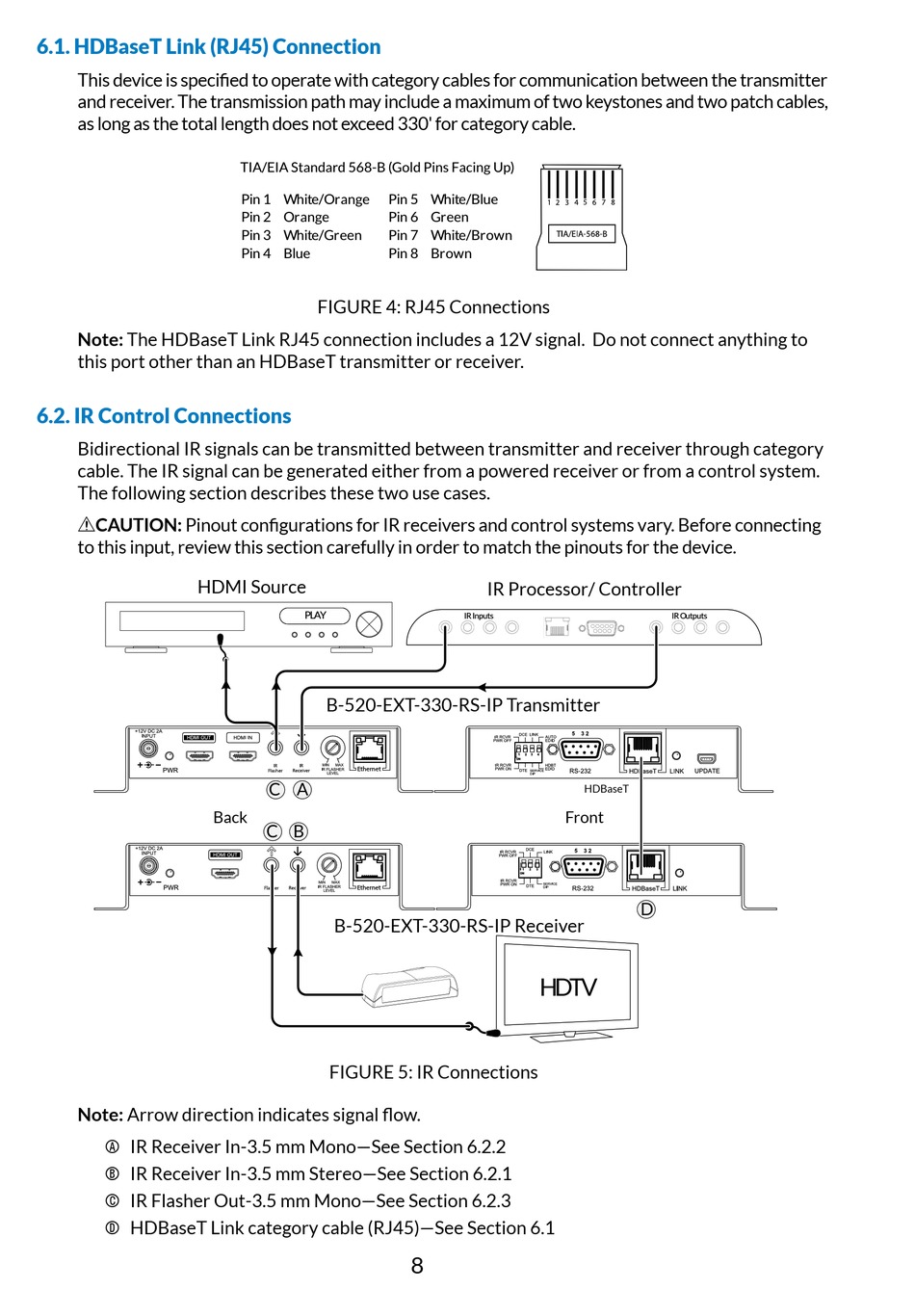

6.1. HDBaseT Link (RJ45) Connection

This device is specified to operate with category cables for communication between the transmitter
and receiver. The transmission path may include a maximum of two keystones and two patch cables,
as long as the total length does not exceed 330' for category cable.
Note: The HDBaseT Link RJ45 connection includes a 12V signal. Do not connect anything to
this port other than an HDBaseT transmitter or receiver.

6.2. IR Control Connections

Bidirectional IR signals can be transmitted between transmitter and receiver through category
cable. The IR signal can be generated either from a powered receiver or from a control system.
The following section describes these two use cases.
CAUTION: Pinout configurations for IR receivers and control systems vary. Before connecting
to this input, review this section carefully in order to match the pinouts for the device.
HDMI Source
Note: Arrow direction indicates signal flow.
 IR Receiver In-3.5 mm Mono—See Section 6.2.2
 IR Receiver In-3.5 mm Stereo—See Section 6.2.1
 IR Flasher Out-3.5 mm Mono—See Section 6.2.3
D HDBaseT Link category cable (RJ45)—See Section 6.1
TIA/EIA Standard 568-B (Gold Pins Facing Up)
Pin 1 White/Orange
Pin 2 Orange
Pin 3 White/Green
Pin 4 Blue
FIGURE 4: RJ45 Connections
PLAY
B-520-EXT-330-RS-IP Transmitter
Ethernet
C A
Back
C B
Ethernet
B-520-EXT-330-RS-IP Receiver
FIGURE 5: IR Connections
Pin 5 White/Blue
Pin 6 Green
Pin 7 White/Brown
Pin 8 Brown
IR Processor/ Controller
IR Inputs
1 2 3 4
ON
1 2 3
HDTV
8
IR Outputs
HDBaseT
Front
D
