CAUTION!
Risk of pinching
– There must not be any pressure on the amputee
support when adjusting the settings.
B
The amputee legrest for Azalea Max are adjustable in
angle, depth, sideways and in height.
1. Loosen the handwheel A and adjust to the required
angle.
2. Re-tighten the handwheel.
3. Loosen the handwheel B and adjust the calf pad to
the required depth.
4. Re-tighten the handwheel.
5. Loosen the screws C and adjust the calf pad sideways.
Do not forget to tighten the screws and the
handles properly.
6. Loosen the handle D and adjust the amputee legrest
in height.
7. Re-tighten the handle.

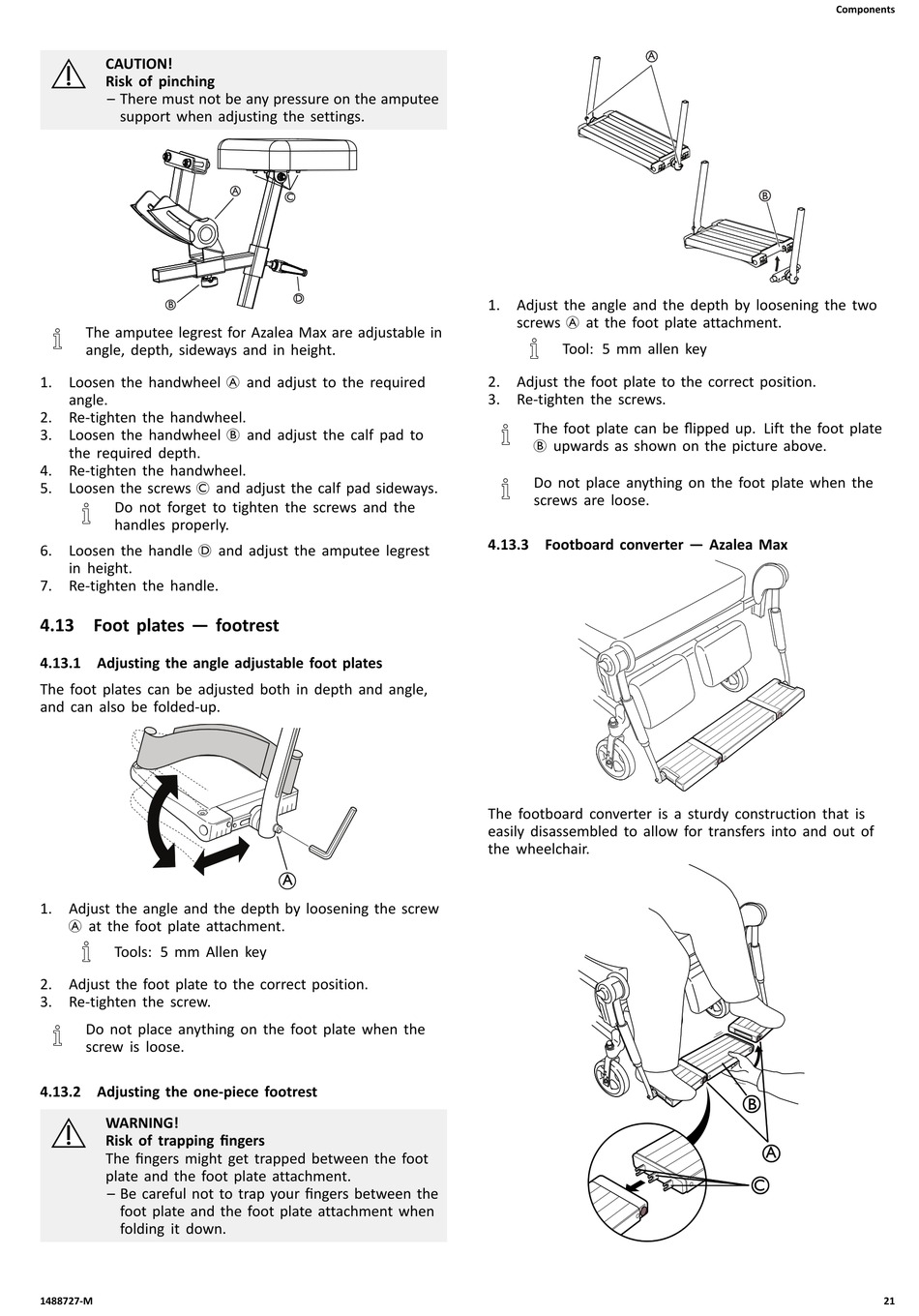

4.13 Foot plates — footrest

4.13.1 Adjusting the angle adjustable foot plates

The foot plates can be adjusted both in depth and angle,
and can also be folded-up.
1. Adjust the angle and the depth by loosening the screw
A at the foot plate attachment.
Tools: 5 mm Allen key
2. Adjust the foot plate to the correct position.
3. Re-tighten the screw.
Do not place anything on the foot plate when the
screw is loose.

4.13.2 Adjusting the one-piece footrest

WARNING!
Risk of trapping fingers
The fingers might get trapped between the foot
plate and the foot plate attachment.
– Be careful not to trap your fingers between the
foot plate and the foot plate attachment when
folding it down.
1488727-M
A
C
D
A
A
1. Adjust the angle and the depth by loosening the two
screws A at the foot plate attachment.
Tool: 5 mm allen key
2. Adjust the foot plate to the correct position.
3. Re-tighten the screws.
The foot plate can be flipped up. Lift the foot plate
B upwards as shown on the picture above.
Do not place anything on the foot plate when the
screws are loose.
4.13.3 Footboard converter — Azalea Max
The footboard converter is a sturdy construction that is
easily disassembled to allow for transfers into and out of
the wheelchair.
Components
B
B
A
C
