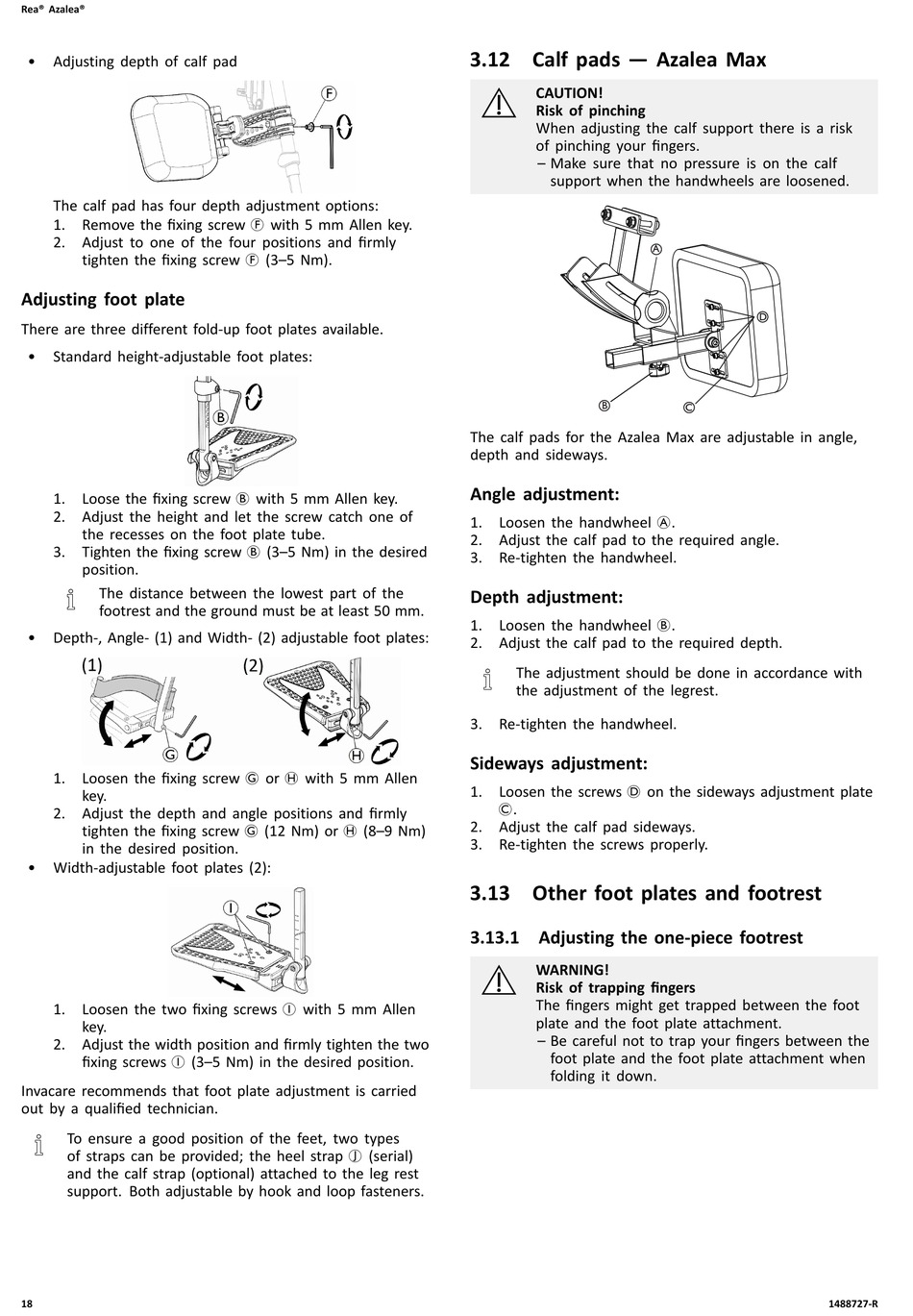

Rea® Azalea®
• Adjusting depth of calf pad
The calf pad has four depth adjustment options:
1. Remove the fixing screw F with 5 mm Allen key.
2. Adjust to one of the four positions and firmly
tighten the fixing screw F (3–5 Nm).
Adjusting foot plate
There are three different fold-up foot plates available.
• Standard height-adjustable foot plates:
1. Loose the fixing screw B with 5 mm Allen key.
2. Adjust the height and let the screw catch one of
the recesses on the foot plate tube.
3. Tighten the fixing screw B (3–5 Nm) in the desired
position.
The distance between the lowest part of the
footrest and the ground must be at least 50 mm.
• Depth-, Angle- (1) and Width- (2) adjustable foot plates:
1. Loosen the fixing screw G or H with 5 mm Allen
key.
2. Adjust the depth and angle positions and firmly
tighten the fixing screw G (12 Nm) or H (8–9 Nm)
in the desired position.
• Width-adjustable foot plates (2):
1. Loosen the two fixing screws I with 5 mm Allen
key.
2. Adjust the width position and firmly tighten the two
fixing screws I (3–5 Nm) in the desired position.
Invacare recommends that foot plate adjustment is carried
out by a qualified technician.
To ensure a good position of the feet, two types
of straps can be provided; the heel strap J (serial)
and the calf strap (optional) attached to the leg rest
support. Both adjustable by hook and loop fasteners.
18
3.12 Calf pads — Azalea Max
CAUTION!
Risk of pinching
When adjusting the calf support there is a risk
of pinching your fingers.
– Make sure that no pressure is on the calf
support when the handwheels are loosened.
B
The calf pads for the Azalea Max are adjustable in angle,
depth and sideways.
Angle adjustment:
1. Loosen the handwheel A.
2. Adjust the calf pad to the required angle.
3. Re-tighten the handwheel.
Depth adjustment:
1. Loosen the handwheel B.
2. Adjust the calf pad to the required depth.
The adjustment should be done in accordance with
the adjustment of the legrest.
3. Re-tighten the handwheel.
Sideways adjustment:
1. Loosen the screws D on the sideways adjustment plate
C.
2. Adjust the calf pad sideways.
3. Re-tighten the screws properly.

3.13 Other foot plates and footrest

3.13.1 Adjusting the one-piece footrest

WARNING!
Risk of trapping fingers
The fingers might get trapped between the foot
plate and the foot plate attachment.
– Be careful not to trap your fingers between the
foot plate and the foot plate attachment when
folding it down.
A
D
C
1488727-R
