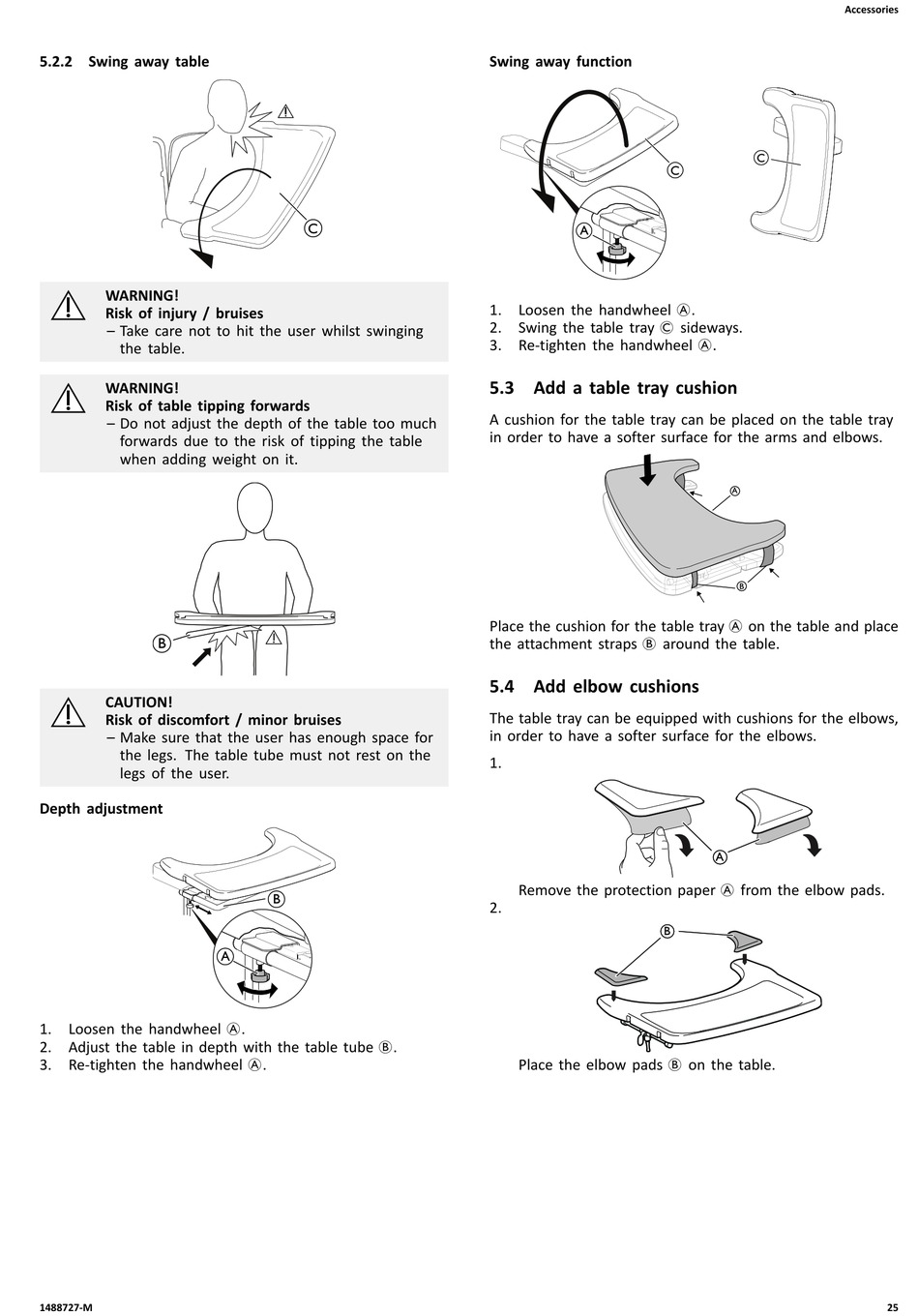

5.2.2 Swing away table

WARNING!
Risk of injury / bruises
– Take care not to hit the user whilst swinging
the table.
WARNING!
Risk of table tipping forwards
– Do not adjust the depth of the table too much
forwards due to the risk of tipping the table
when adding weight on it.
CAUTION!
Risk of discomfort / minor bruises
– Make sure that the user has enough space for
the legs. The table tube must not rest on the
legs of the user.
Depth adjustment
1. Loosen the handwheel A.
2. Adjust the table in depth with the table tube B.
3. Re-tighten the handwheel A.
1488727-M
B
A
Swing away function
A
1. Loosen the handwheel A.
2. Swing the table tray C sideways.
3. Re-tighten the handwheel A.

5.3 Add a table tray cushion

A cushion for the table tray can be placed on the table tray
in order to have a softer surface for the arms and elbows.
Place the cushion for the table tray A on the table and place
the attachment straps B around the table.

5.4 Add elbow cushions

The table tray can be equipped with cushions for the elbows,
in order to have a softer surface for the elbows.
1.
Remove the protection paper A from the elbow pads.
2.
Place the elbow pads B on the table.
C
A
B
A
Accessories
