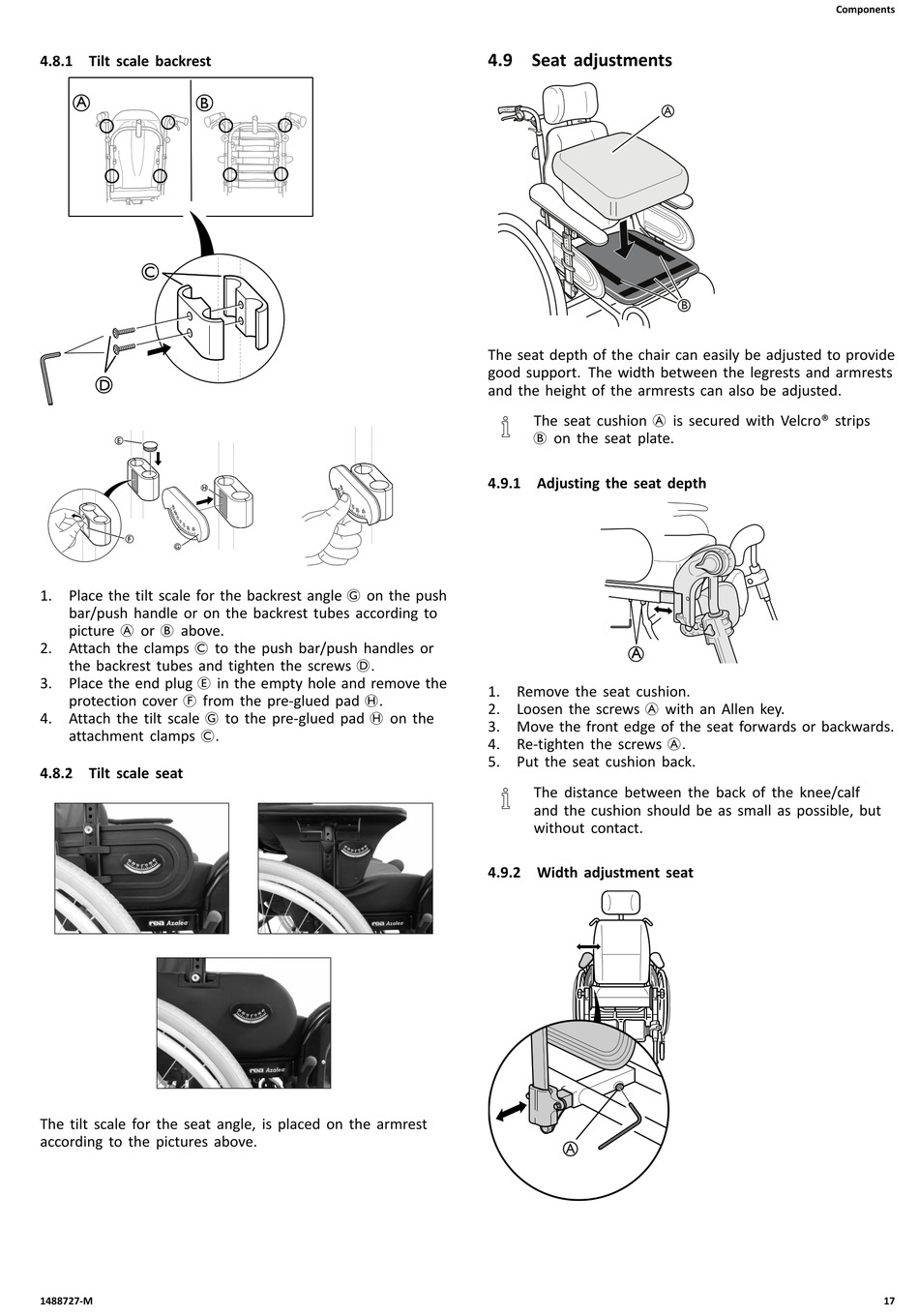

4.8.1 Tilt scale backrest

A
B
C
D
1. Place the tilt scale for the backrest angle G on the push
bar/push handle or on the backrest tubes according to
picture A or B above.
2. Attach the clamps C to the push bar/push handles or
the backrest tubes and tighten the screws D.
3. Place the end plug E in the empty hole and remove the
protection cover F from the pre-glued pad H.
4. Attach the tilt scale G to the pre-glued pad H on the
attachment clamps C.

4.8.2 Tilt scale seat

The tilt scale for the seat angle, is placed on the armrest
according to the pictures above.
1488727-M

4.9 Seat adjustments

The seat depth of the chair can easily be adjusted to provide
good support. The width between the legrests and armrests
and the height of the armrests can also be adjusted.
The seat cushion A is secured with Velcro® strips
B on the seat plate.

4.9.1 Adjusting the seat depth

A
1. Remove the seat cushion.
2. Loosen the screws A with an Allen key.
3. Move the front edge of the seat forwards or backwards.
4. Re-tighten the screws A.
5. Put the seat cushion back.
The distance between the back of the knee/calf
and the cushion should be as small as possible, but
without contact.

4.9.2 Width adjustment seat

A
Components
A
B
