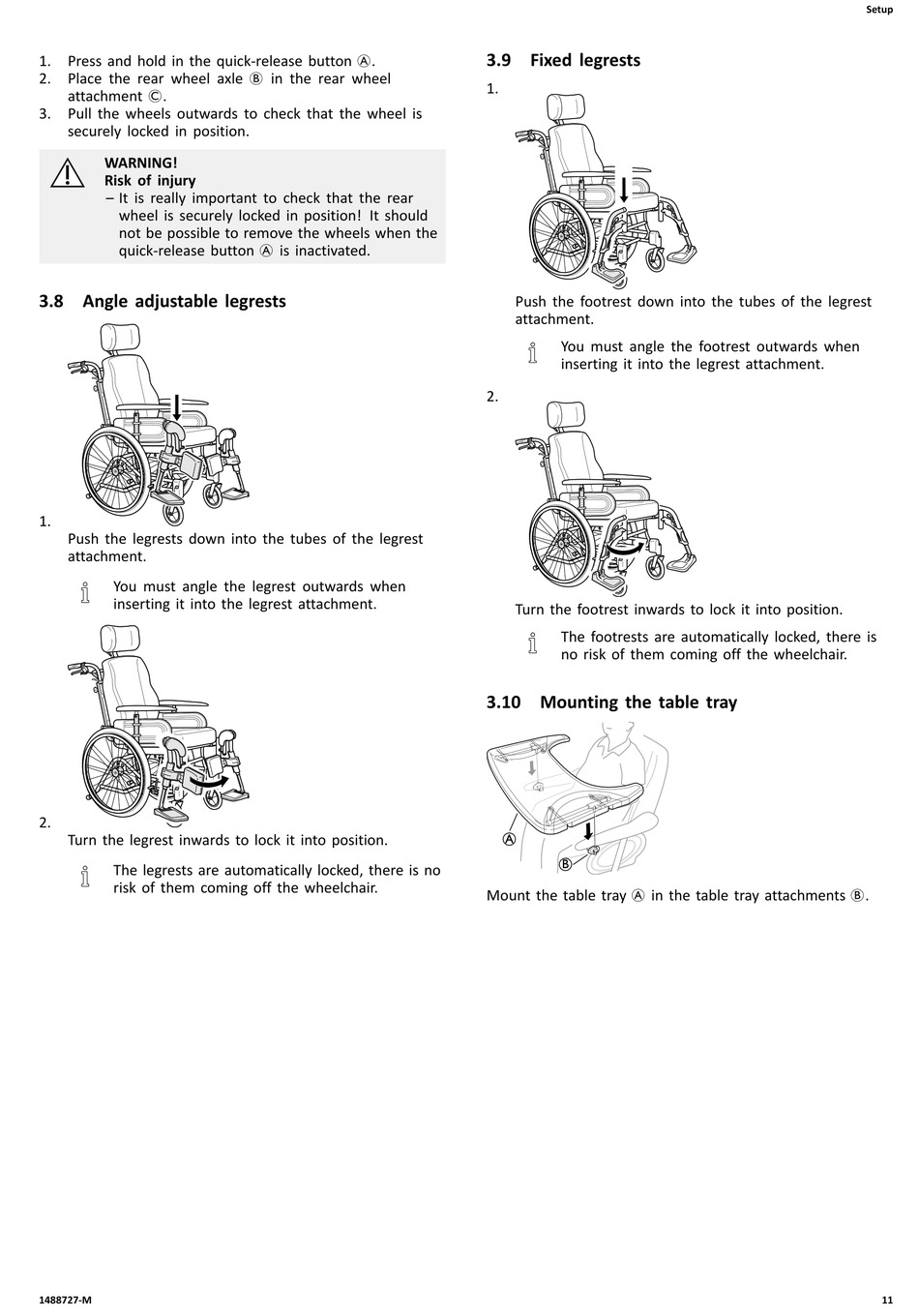

Angle Adjustable Legrests; Fixed Legrests; Mounting The Table Tray - Invacare rea azalea assist User Manual

1. Press and hold in the quick-release button A.
2. Place the rear wheel axle B in the rear wheel
attachment C.
3. Pull the wheels outwards to check that the wheel is
securely locked in position.
WARNING!
Risk of injury
– It is really important to check that the rear
wheel is securely locked in position! It should
not be possible to remove the wheels when the
quick-release button A is inactivated.

3.8 Angle adjustable legrests

1.
Push the legrests down into the tubes of the legrest
attachment.
You must angle the legrest outwards when
inserting it into the legrest attachment.
2.
Turn the legrest inwards to lock it into position.
The legrests are automatically locked, there is no
risk of them coming off the wheelchair.
1488727-M

3.9 Fixed legrests

1.
Push the footrest down into the tubes of the legrest
attachment.
You must angle the footrest outwards when
inserting it into the legrest attachment.
2.
Turn the footrest inwards to lock it into position.
The footrests are automatically locked, there is
no risk of them coming off the wheelchair.

3.10 Mounting the table tray

A
B
Mount the table tray A in the table tray attachments B.
