Rea® Azalea®

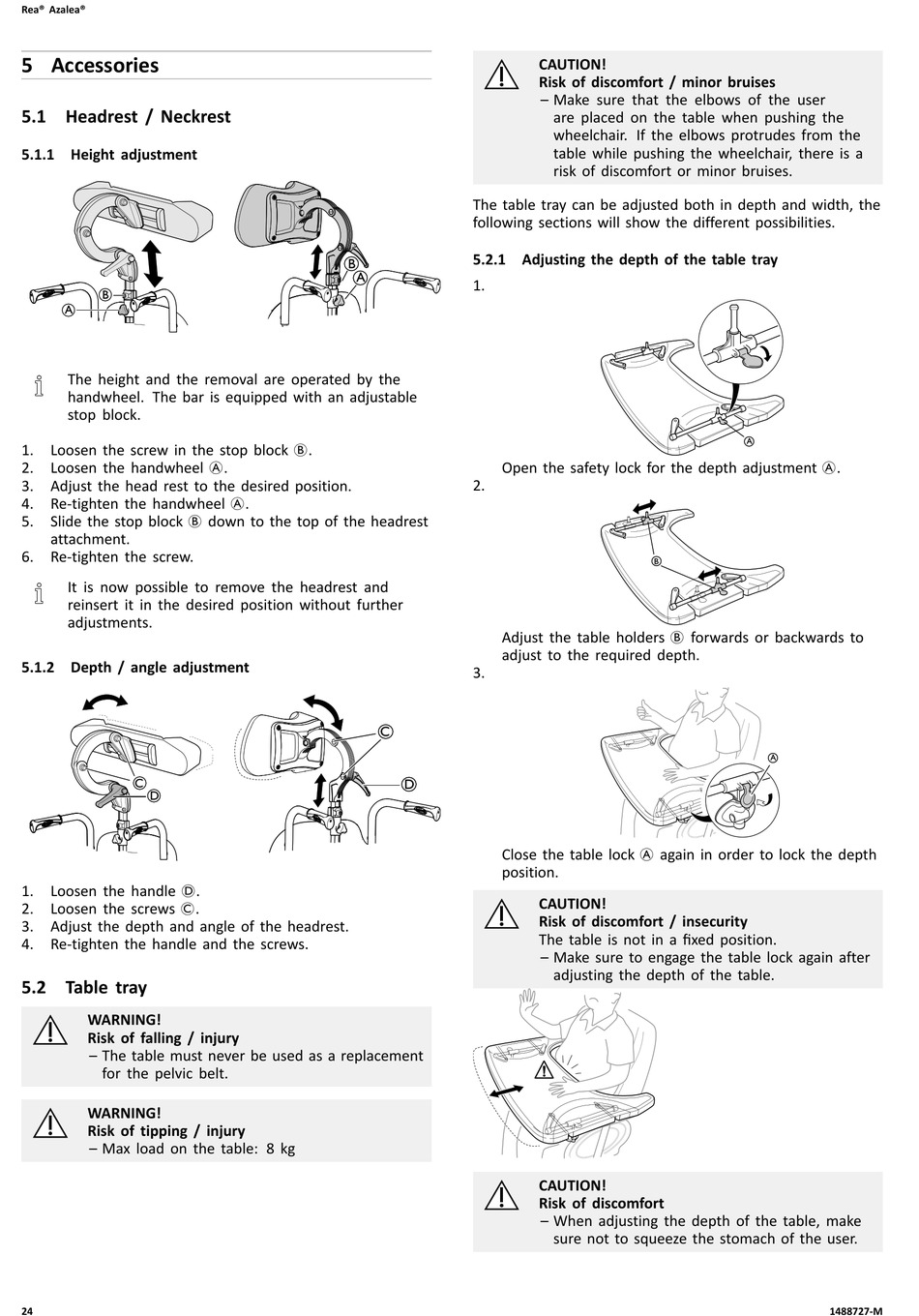

5 Accessories

5.1 Headrest / Neckrest

5.1.1 Height adjustment

B
A
The height and the removal are operated by the
handwheel. The bar is equipped with an adjustable
stop block.
1. Loosen the screw in the stop block B.
2. Loosen the handwheel A.
3. Adjust the head rest to the desired position.
4. Re-tighten the handwheel A.
5. Slide the stop block B down to the top of the headrest
attachment.
6. Re-tighten the screw.
It is now possible to remove the headrest and
reinsert it in the desired position without further
adjustments.

5.1.2 Depth / angle adjustment

1. Loosen the handle D.
2. Loosen the screws C.
3. Adjust the depth and angle of the headrest.
4. Re-tighten the handle and the screws.
5.2 Table tray
WARNING!
Risk of falling / injury
– The table must never be used as a replacement
for the pelvic belt.
WARNING!
Risk of tipping / injury
– Max load on the table: 8 kg
24
The table tray can be adjusted both in depth and width, the
following sections will show the different possibilities.

5.2.1 Adjusting the depth of the table tray

B
A
1.
Open the safety lock for the depth adjustment A.
2.
Adjust the table holders B forwards or backwards to
adjust to the required depth.
3.
Close the table lock A again in order to lock the depth
position.
CAUTION!
Risk of discomfort / minor bruises
– Make sure that the elbows of the user
are placed on the table when pushing the
wheelchair. If the elbows protrudes from the
table while pushing the wheelchair, there is a
risk of discomfort or minor bruises.
CAUTION!
Risk of discomfort / insecurity
The table is not in a fixed position.
– Make sure to engage the table lock again after
adjusting the depth of the table.
CAUTION!
Risk of discomfort
– When adjusting the depth of the table, make
sure not to squeeze the stomach of the user.
A
A
1488727-M
