Rea® Azalea®

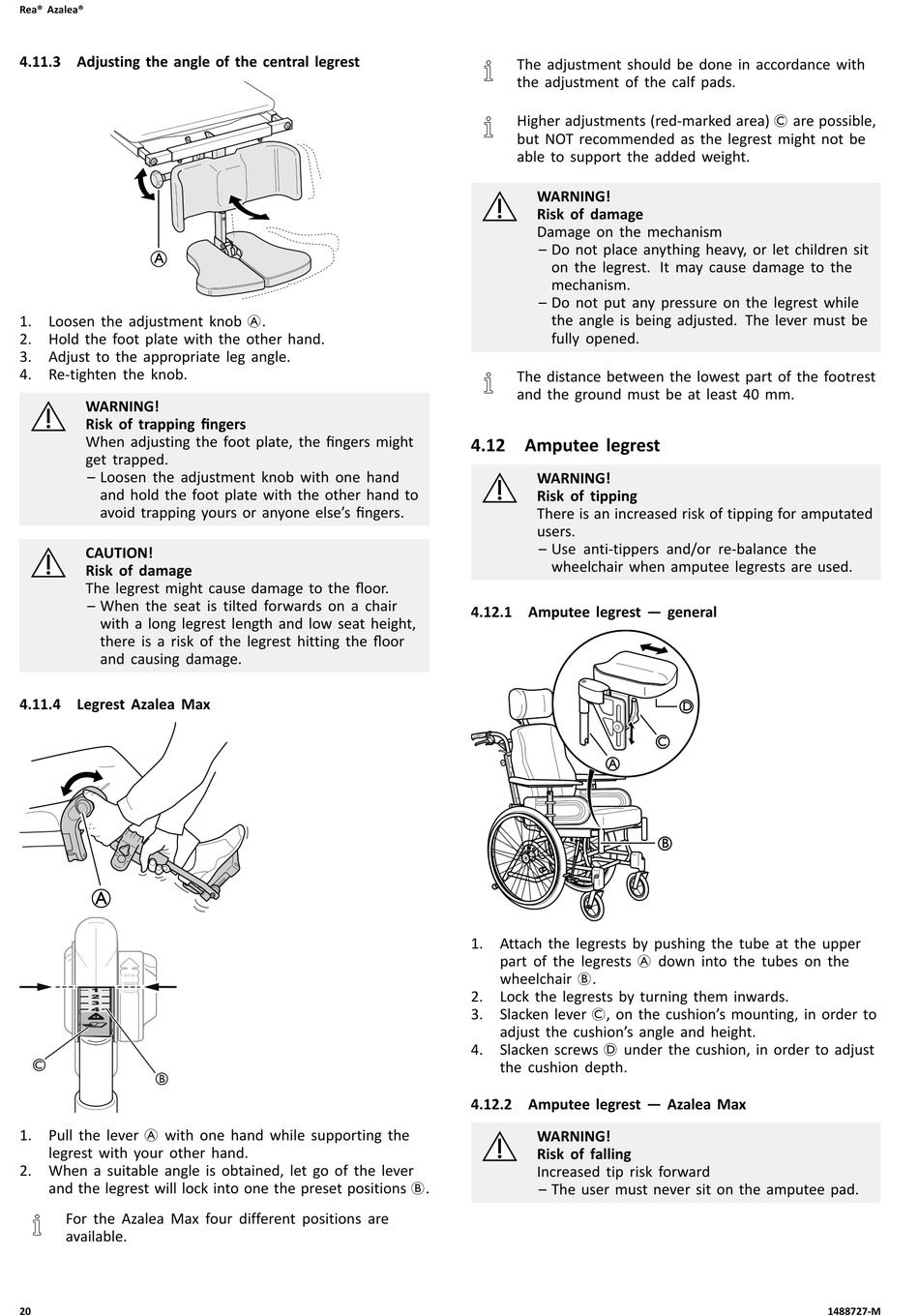

4.11.3 Adjusting the angle of the central legrest

A
1. Loosen the adjustment knob A.
2. Hold the foot plate with the other hand.
3. Adjust to the appropriate leg angle.
4. Re-tighten the knob.
WARNING!
Risk of trapping fingers
When adjusting the foot plate, the fingers might
get trapped.
– Loosen the adjustment knob with one hand
and hold the foot plate with the other hand to
avoid trapping yours or anyone else's fingers.
CAUTION!
Risk of damage
The legrest might cause damage to the floor.
– When the seat is tilted forwards on a chair
with a long legrest length and low seat height,
there is a risk of the legrest hitting the floor
and causing damage.

4.11.4 Legrest Azalea Max

A
1
2
3
4
1. Pull the lever A with one hand while supporting the
legrest with your other hand.
2. When a suitable angle is obtained, let go of the lever
and the legrest will lock into one the preset positions B.
For the Azalea Max four different positions are
available.
20
The adjustment should be done in accordance with
the adjustment of the calf pads.
Higher adjustments (red-marked area) C are possible,
but NOT recommended as the legrest might not be
able to support the added weight.
WARNING!
Risk of damage
Damage on the mechanism
– Do not place anything heavy, or let children sit
on the legrest. It may cause damage to the
mechanism.
– Do not put any pressure on the legrest while
the angle is being adjusted. The lever must be
fully opened.
The distance between the lowest part of the footrest
and the ground must be at least 40 mm.

4.12 Amputee legrest

WARNING!
Risk of tipping
There is an increased risk of tipping for amputated
users.
– Use anti-tippers and/or re-balance the
wheelchair when amputee legrests are used.
4.12.1 Amputee legrest — general
A
1. Attach the legrests by pushing the tube at the upper
part of the legrests A down into the tubes on the
wheelchair B.
2. Lock the legrests by turning them inwards.
3. Slacken lever C, on the cushion's mounting, in order to
adjust the cushion's angle and height.
4. Slacken screws D under the cushion, in order to adjust
the cushion depth.
4.12.2 Amputee legrest — Azalea Max
WARNING!
Risk of falling
Increased tip risk forward
– The user must never sit on the amputee pad.
D
C
B
1488727-M
