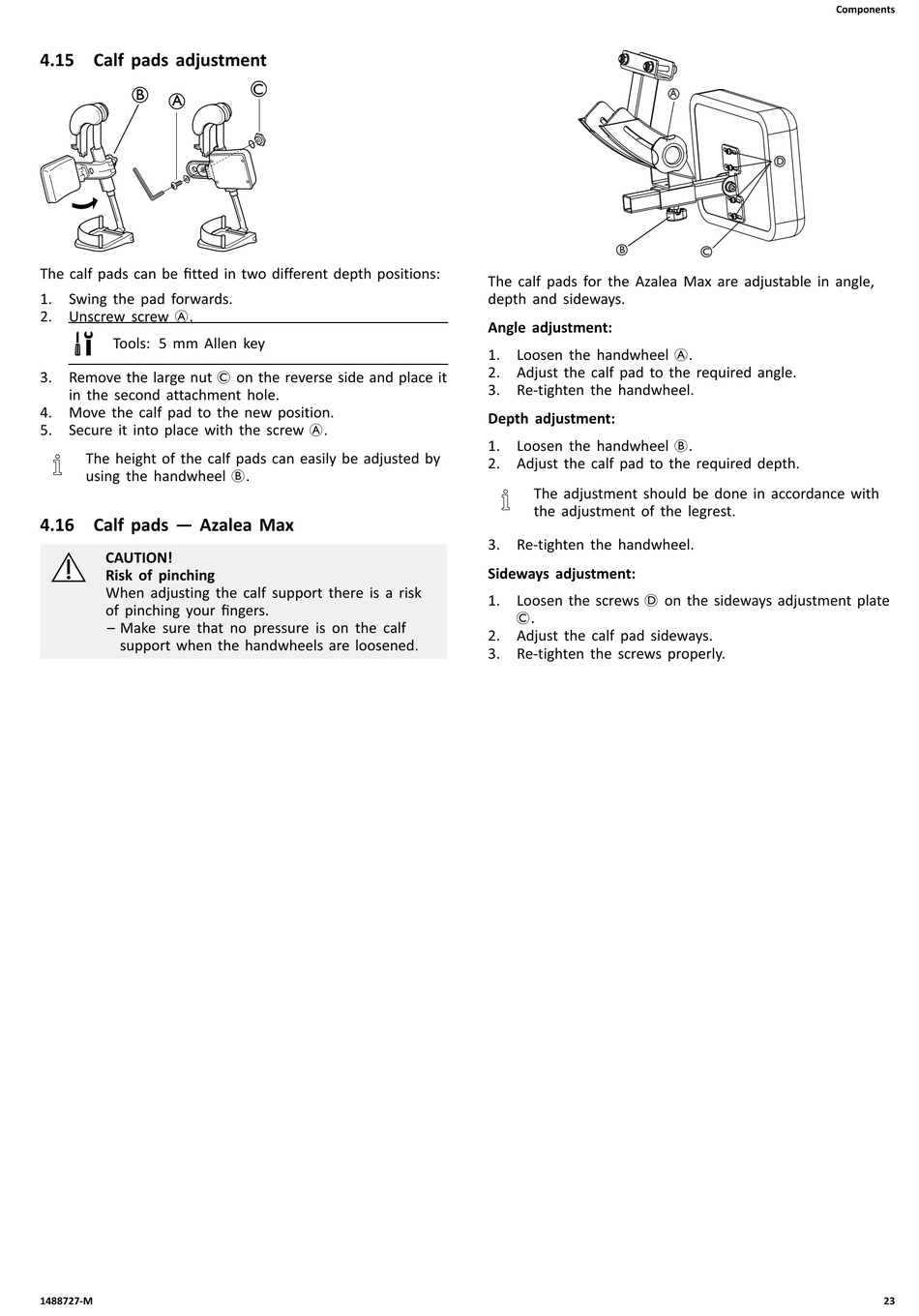

4.15 Calf pads adjustment

B
A
The calf pads can be fitted in two different depth positions:
1. Swing the pad forwards.
2. Unscrew screw A.
Tools: 5 mm Allen key
3. Remove the large nut C on the reverse side and place it
in the second attachment hole.
4. Move the calf pad to the new position.
5. Secure it into place with the screw A.
The height of the calf pads can easily be adjusted by
using the handwheel B.
4.16 Calf pads — Azalea Max
CAUTION!
Risk of pinching
When adjusting the calf support there is a risk
of pinching your fingers.
– Make sure that no pressure is on the calf
support when the handwheels are loosened.
1488727-M
C
B
The calf pads for the Azalea Max are adjustable in angle,
depth and sideways.
Angle adjustment:
1. Loosen the handwheel A.
2. Adjust the calf pad to the required angle.
3. Re-tighten the handwheel.
Depth adjustment:
1. Loosen the handwheel B.
2. Adjust the calf pad to the required depth.
The adjustment should be done in accordance with
the adjustment of the legrest.
3. Re-tighten the handwheel.
Sideways adjustment:
1. Loosen the screws D on the sideways adjustment plate
C.
2. Adjust the calf pad sideways.
3. Re-tighten the screws properly.
Components
A
D
C
