Rea® Azalea®

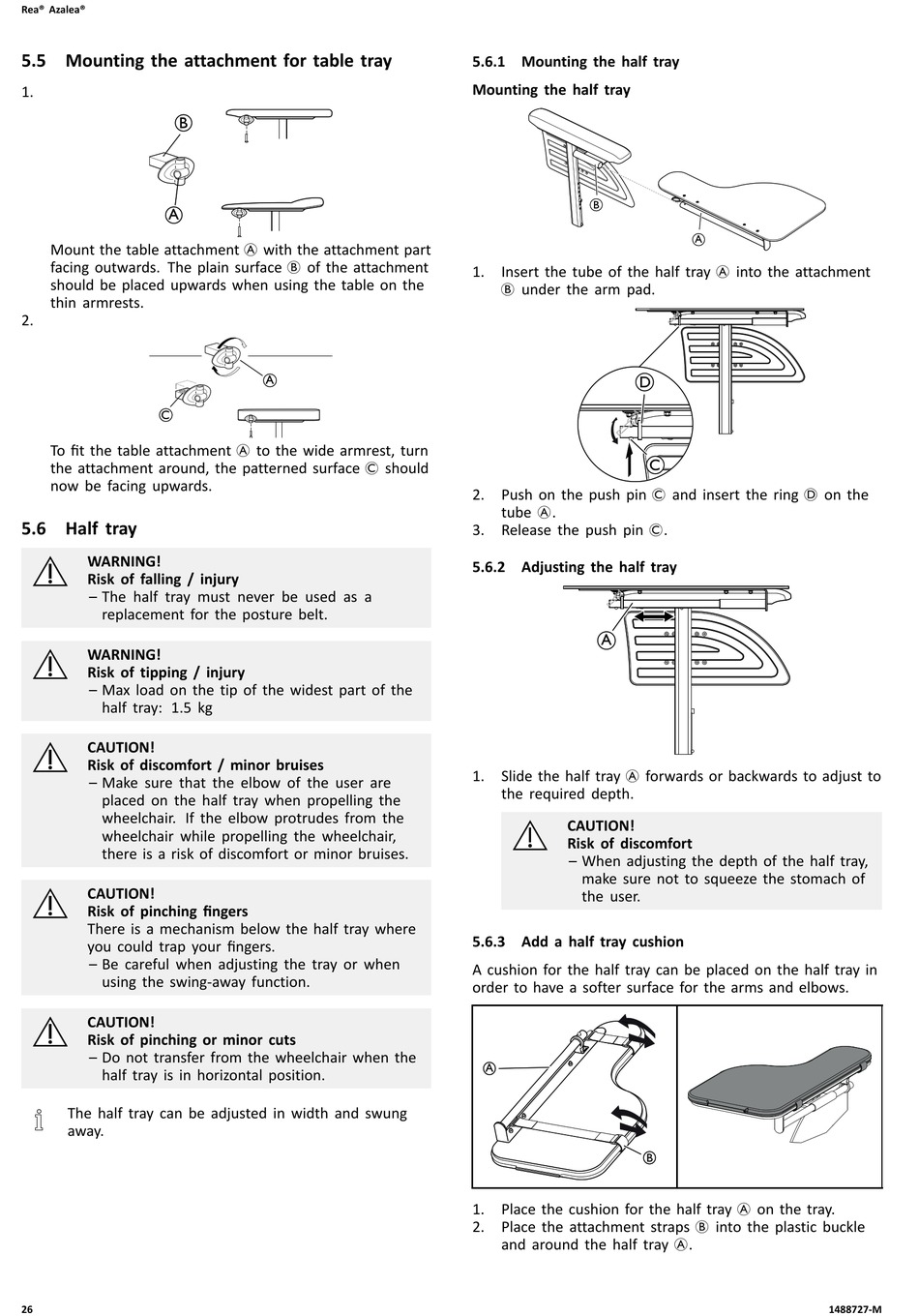

5.5 Mounting the attachment for table tray

1.
B
A
Mount the table attachment A with the attachment part
facing outwards. The plain surface B of the attachment
should be placed upwards when using the table on the
thin armrests.
2.
C
To fit the table attachment A to the wide armrest, turn
the attachment around, the patterned surface C should
now be facing upwards.

5.6 Half tray

WARNING!
Risk of falling / injury
– The half tray must never be used as a
replacement for the posture belt.
WARNING!
Risk of tipping / injury
– Max load on the tip of the widest part of the
half tray: 1.5 kg
CAUTION!
Risk of discomfort / minor bruises
– Make sure that the elbow of the user are
placed on the half tray when propelling the
wheelchair. If the elbow protrudes from the
wheelchair while propelling the wheelchair,
there is a risk of discomfort or minor bruises.
CAUTION!
Risk of pinching fingers
There is a mechanism below the half tray where
you could trap your fingers.
– Be careful when adjusting the tray or when
using the swing-away function.
CAUTION!
Risk of pinching or minor cuts
– Do not transfer from the wheelchair when the
half tray is in horizontal position.
The half tray can be adjusted in width and swung
away.
26
A

5.6.1 Mounting the half tray

Mounting the half tray
B
1. Insert the tube of the half tray A into the attachment
B under the arm pad.
2. Push on the push pin C and insert the ring D on the
tube A.
3. Release the push pin C.

5.6.2 Adjusting the half tray

A
1. Slide the half tray A forwards or backwards to adjust to
the required depth.
CAUTION!
Risk of discomfort
– When adjusting the depth of the half tray,
make sure not to squeeze the stomach of
the user.

5.6.3 Add a half tray cushion

A cushion for the half tray can be placed on the half tray in
order to have a softer surface for the arms and elbows.
A
B
1. Place the cushion for the half tray A on the tray.
2. Place the attachment straps B into the plastic buckle
and around the half tray A.
A
1488727-M
