Rea® Azalea®

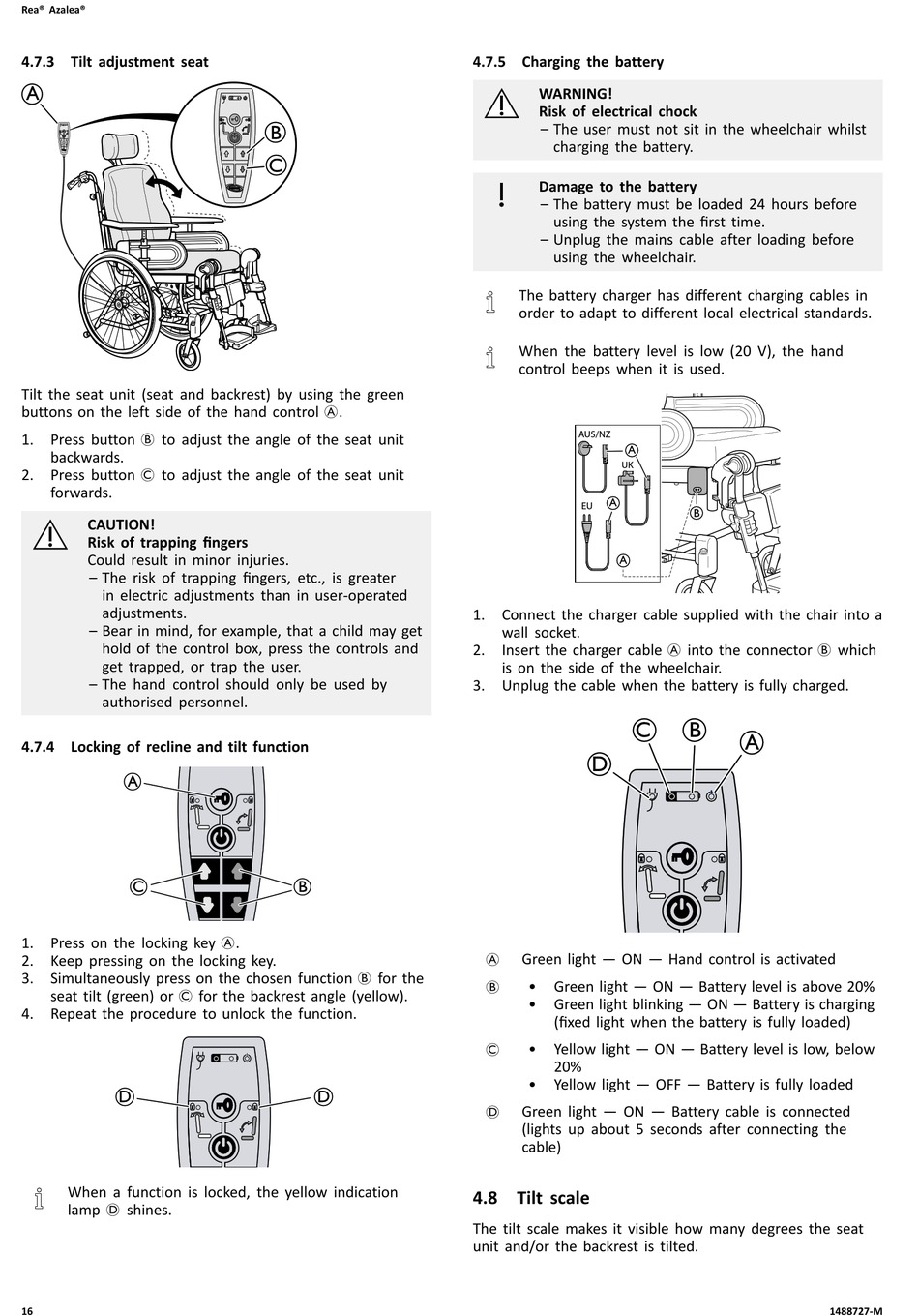

4.7.3 Tilt adjustment seat

A
Tilt the seat unit (seat and backrest) by using the green
buttons on the left side of the hand control A.
1. Press button B to adjust the angle of the seat unit
backwards.
2. Press button C to adjust the angle of the seat unit
forwards.
CAUTION!
Risk of trapping fingers
Could result in minor injuries.
– The risk of trapping fingers, etc., is greater
in electric adjustments than in user-operated
adjustments.
– Bear in mind, for example, that a child may get
hold of the control box, press the controls and
get trapped, or trap the user.
– The hand control should only be used by
authorised personnel.

4.7.4 Locking of recline and tilt function

A
C
1. Press on the locking key A.
2. Keep pressing on the locking key.
3. Simultaneously press on the chosen function B for the
seat tilt (green) or C for the backrest angle (yellow).
4. Repeat the procedure to unlock the function.
When a function is locked, the yellow indication
lamp D shines.
16
B
C
B

4.7.5 Charging the battery

WARNING!
Risk of electrical chock
– The user must not sit in the wheelchair whilst
charging the battery.
Damage to the battery
– The battery must be loaded 24 hours before
using the system the first time.
– Unplug the mains cable after loading before
using the wheelchair.
The battery charger has different charging cables in
order to adapt to different local electrical standards.
When the battery level is low (20 V), the hand
control beeps when it is used.
A
A
A
1. Connect the charger cable supplied with the chair into a
wall socket.
2. Insert the charger cable A into the connector B which
is on the side of the wheelchair.
3. Unplug the cable when the battery is fully charged.
C
D
Green light — ON — Hand control is activated
A
B • Green light — ON — Battery level is above 20%
• Green light blinking — ON — Battery is charging
(fixed light when the battery is fully loaded)
• Yellow light — ON — Battery level is low, below
C
20%
• Yellow light — OFF — Battery is fully loaded
Green light — ON — Battery cable is connected
D
(lights up about 5 seconds after connecting the
cable)

4.8 Tilt scale

The tilt scale makes it visible how many degrees the seat
unit and/or the backrest is tilted.
B
A
1488727-M
