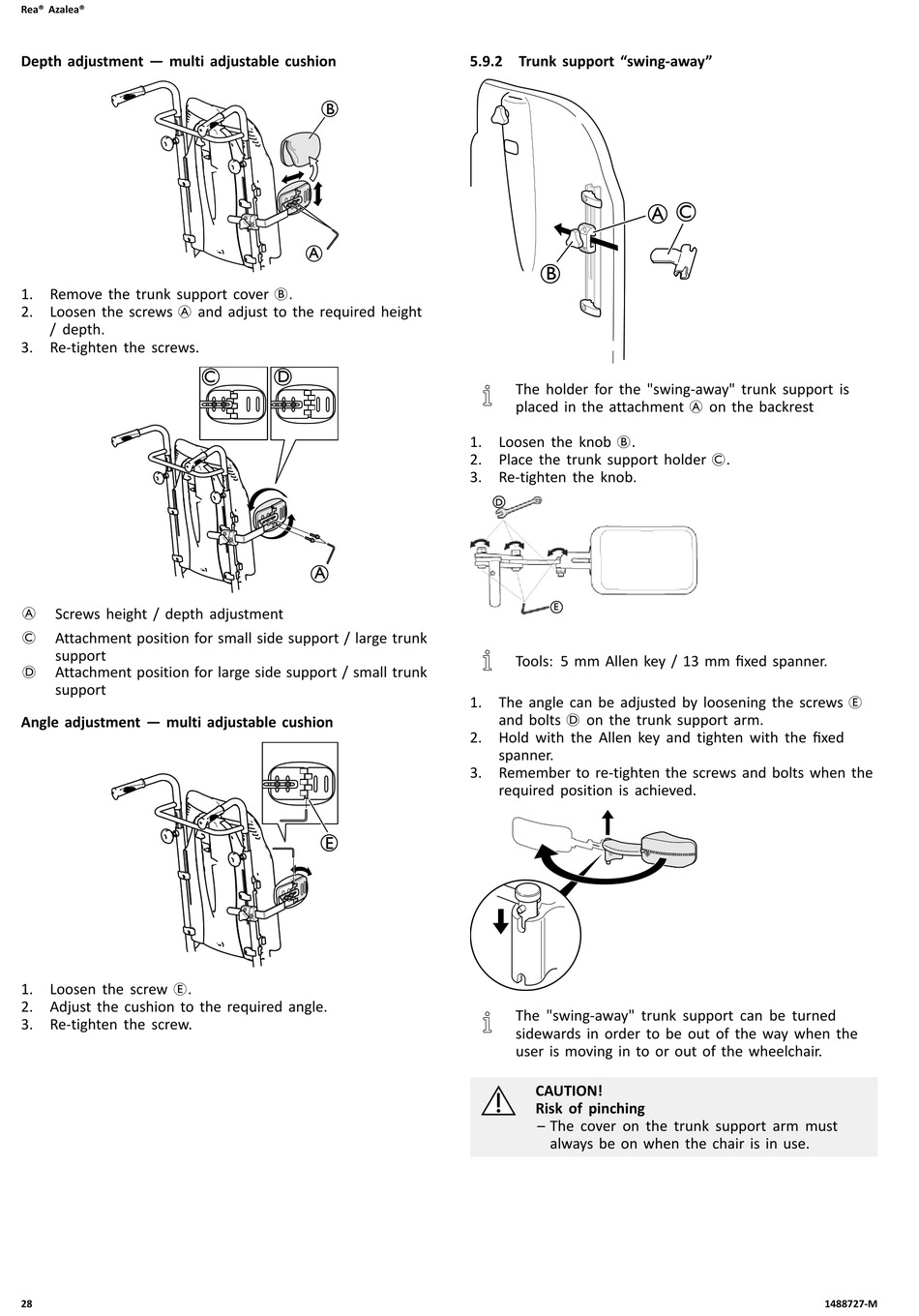

Rea® Azalea®
Depth adjustment — multi adjustable cushion
1. Remove the trunk support cover B.
2. Loosen the screws A and adjust to the required height
/ depth.
3. Re-tighten the screws.
A Screws height / depth adjustment
C Attachment position for small side support / large trunk
support
D Attachment position for large side support / small trunk
support
Angle adjustment — multi adjustable cushion
1. Loosen the screw E.
2. Adjust the cushion to the required angle.
3. Re-tighten the screw.
28
B
A
D
C
A

5.9.2 Trunk support "swing-away"

B
The holder for the "swing-away" trunk support is
placed in the attachment A on the backrest
1. Loosen the knob B.
2. Place the trunk support holder C.
3. Re-tighten the knob.
Tools: 5 mm Allen key / 13 mm fixed spanner.
1. The angle can be adjusted by loosening the screws E
and bolts D on the trunk support arm.
2. Hold with the Allen key and tighten with the fixed
spanner.
3. Remember to re-tighten the screws and bolts when the
required position is achieved.
The "swing-away" trunk support can be turned
sidewards in order to be out of the way when the
user is moving in to or out of the wheelchair.
CAUTION!
Risk of pinching
– The cover on the trunk support arm must
always be on when the chair is in use.
A C
