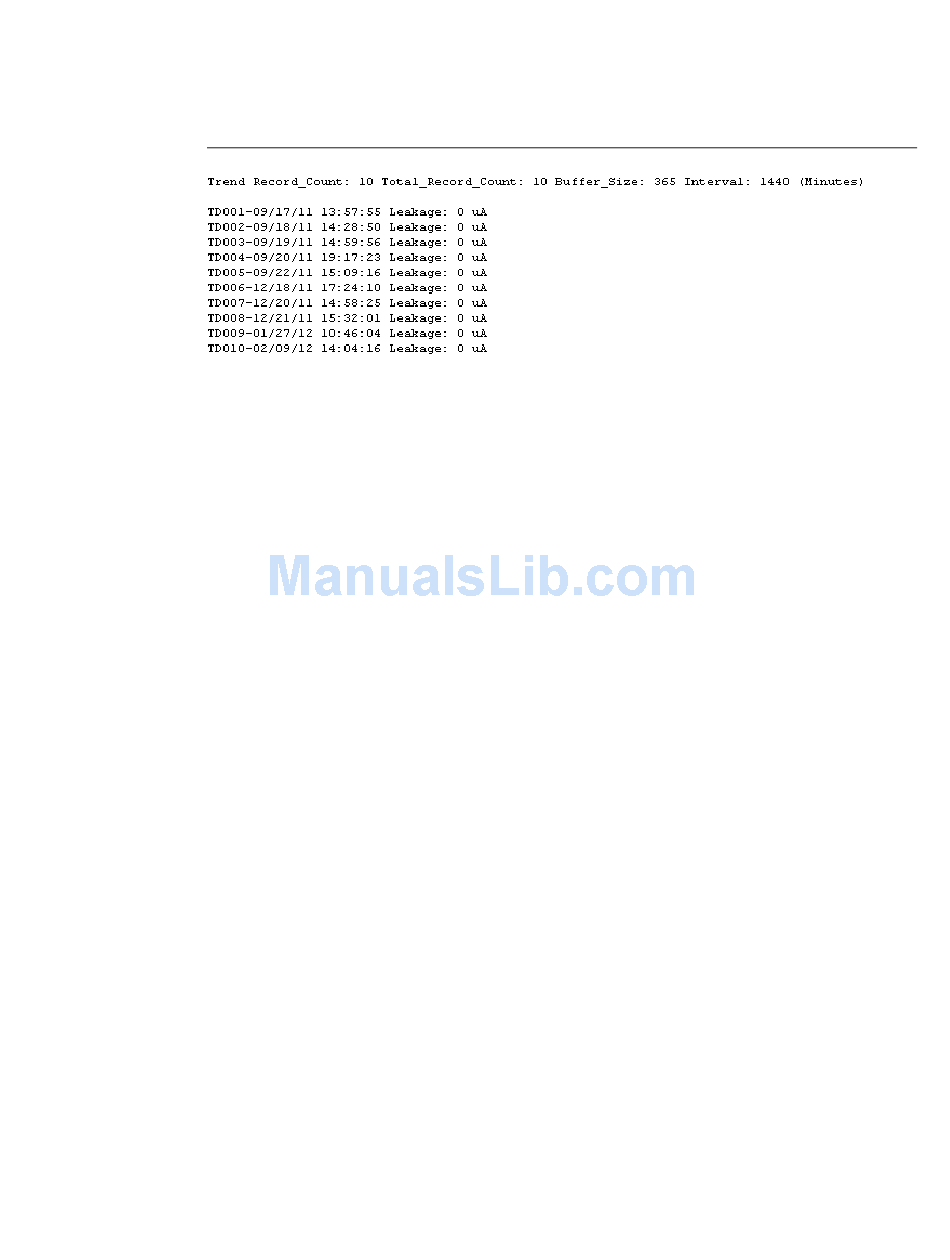

The Trend Log option provides a trending list of logged current leakage. This data provides
assistance in troubleshooting leaks and inaccurate readings. Click the Trend Log link to access
this information.
Figure 4.36
4.5
Refresh
Click the Refresh link to manually check for status updates. The LD5200 will refresh all its
data, and poll all connected devices for their most recent data. The Refresh link is especially
helpful if the system's refresh rate is set at a long interval, or when new equipment is
connected to the system. Instead of waiting for the LD5200 to refresh on its own, click the link
to force a system refresh.
To adjust the automatic refresh rate, refer to
page
60.
rletech.com
Trend Log
LD5200 User Guide
Figure 4.12, "Web Configuration Page" on
4
Web Interface
85
