3 LCD Touch Screen Interface

3.5.2 Virtual Zone

A virtual zone is a labeled reference point in a leak detection system. A virtual zone can consist
of a room, a drip pan containing a spot detector under an air handler unit, a combination of
rooms and components, or any other defined area whose identification would help in the
location of leaks.
The LD5200 allows you to establish
up to 32 virtual leak detection zones.
Dividing a leak detection system into
zones helps locate leaks quickly. It
simplifies troubleshooting by
allowing you to isolate different
sections of cable as separately
defined areas. Use the Virtual Zone
Settings page to configure the
LD5200's virtual zones
Use the Up, Down, Select and Return
buttons to navigate through the
virtual zone menus.
Push the Select button to choose the blue highlighted zone you wish to configure or edit. Use
the LCD keyboard to give the zone a descriptive identifier. Push the Return button and log the
end distance for that particular virtual zone. To delete a virtual zone, select the zone and delete
the text from all fields.
Option
#
Label
End Distance
Table 3.11
40
Description
A fixed number, 1 - 32, used to designate the Zone.
A descriptive label for the zone, 30 characters or less.
Record the sensing cable's distance measurement at the END
of the zone.
Zone 1 starts at 0 feet / meters, and you designate the end
point for Zone 1. Zone 2 starts at zone 1's ending distance; you
designate where Zone 2 ends. Each subsequent zone begins
where the previous zone ends.
LCD Virtual Zone Settings - Configurable Options
LD5200 User Guide

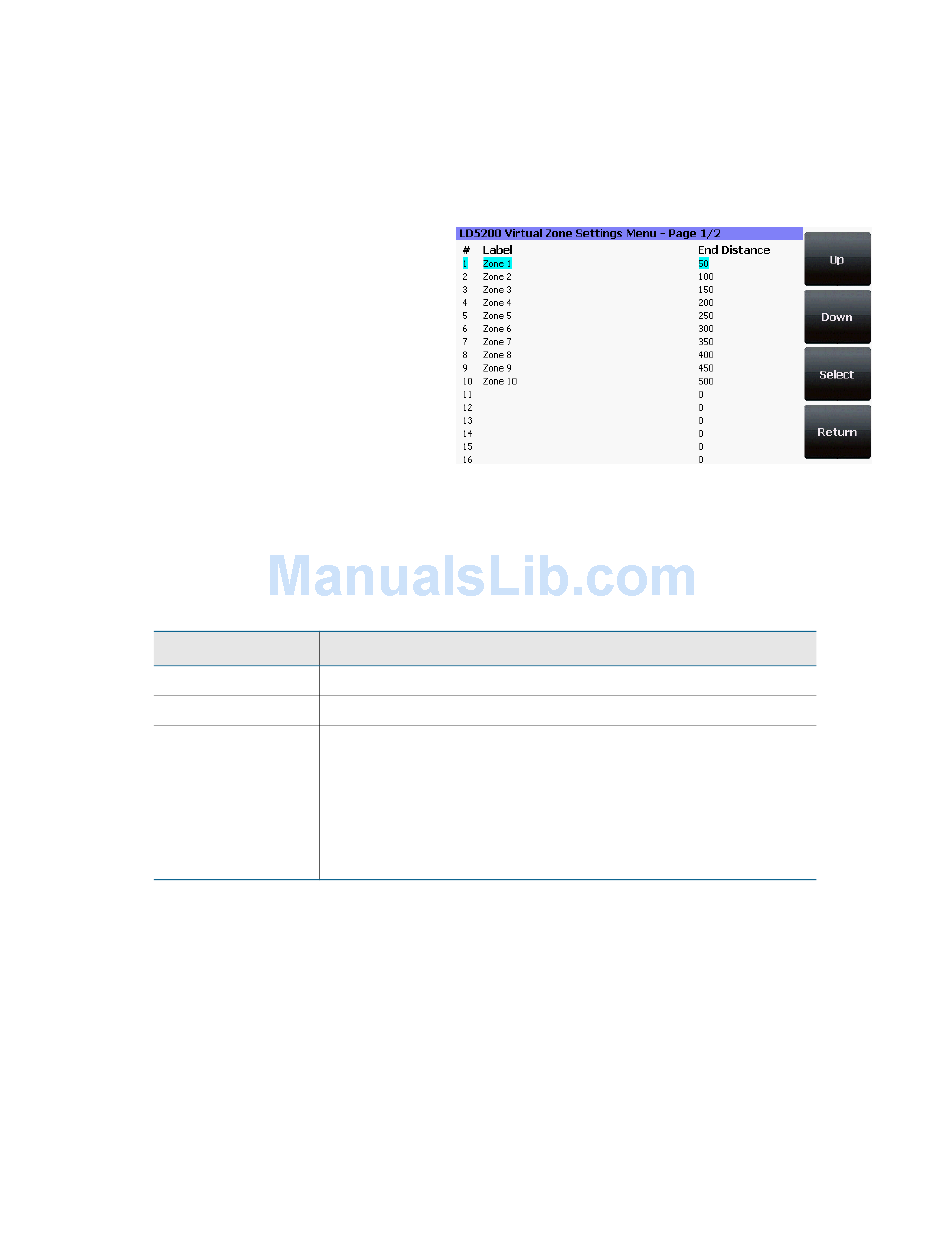

LCD - Virtual Zone Settings Menu
