4.3.2 Virtual Zone

A virtual zone is a labeled reference point in a leak detection system. A virtual zone can
consist of a room, a drip pan containing a spot detector under an air handler unit, a
combination of rooms and components, or any other defined area whose identification would
help in the location of leaks.
The LD5200 supports up to 32 virtual zones. Dividing a leak detection system into zones helps
locate leaks quickly. It simplifies troubleshooting by allowing you to isolate different sections
of cable as separately defined areas.

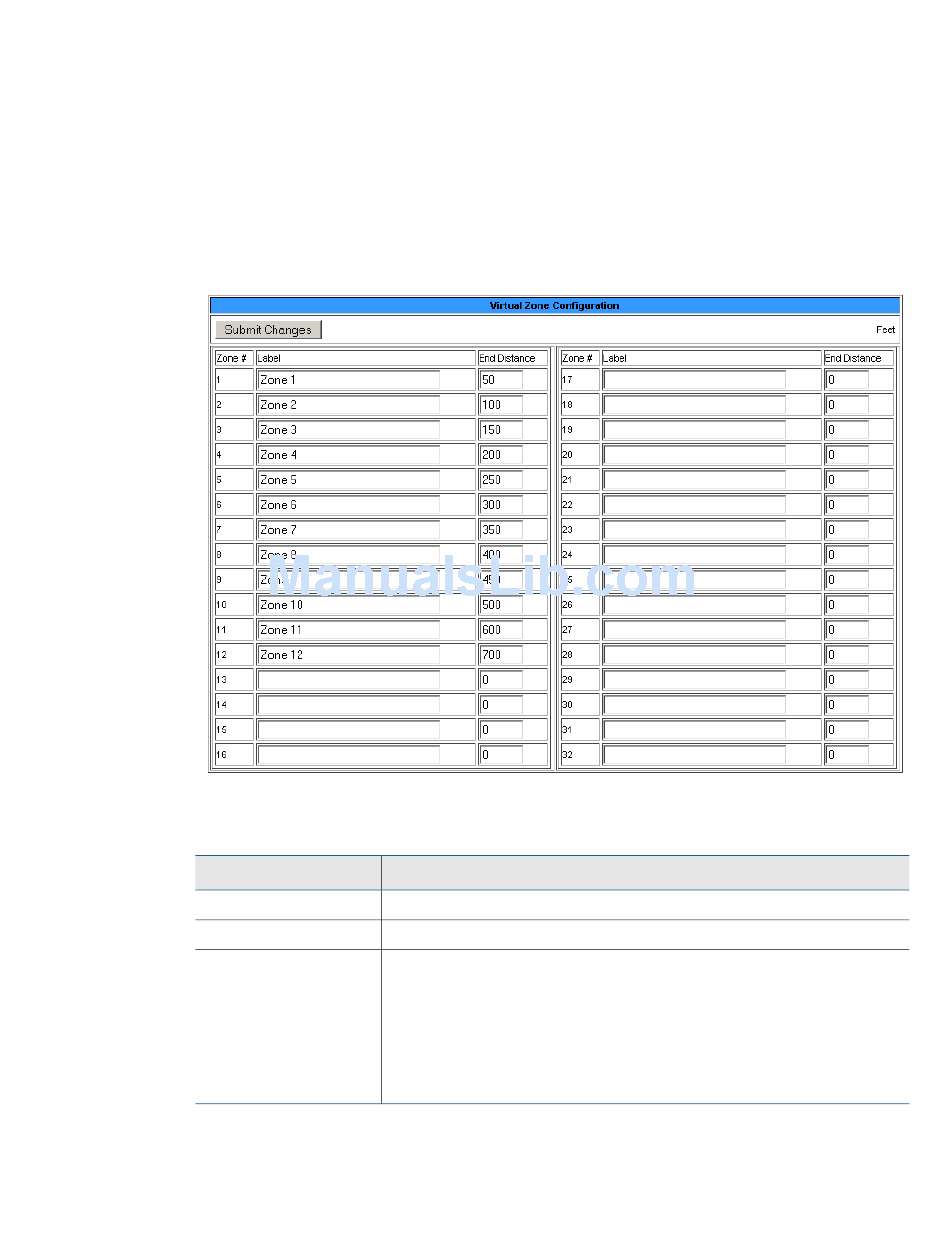

Figure 4.6
Option
Zone #
Label
End Distance
Table 4.2
rletech.com
Virtual Zone Configuration Page
Description
A fixed number, 1 - 32, used to designate the Zone.
Type a descriptive label for the zone, 30 characters or less.
Record the sensing cable's distance measurement at the END of
the zone.
Zone 1 starts at 0 feet / meters, and then you designate the end
point for Zone 1. Zone 2 starts at zone 1's ending distance; you
designate where Zone 2 ends. Each subsequent zone begins
where the previous zone ends.
Virtual Zone Configuration Options
