3 LCD Touch Screen Interface

3.3.1 History

Color
Red
Blue
Black
Table 3.5
Use the Next, Previous, and Return buttons to navigate through the alarm history.Four buttons
run down the right side of the LCD and function as follows:
Button
Next
Previous
Ack
Return
Table 3.6
32

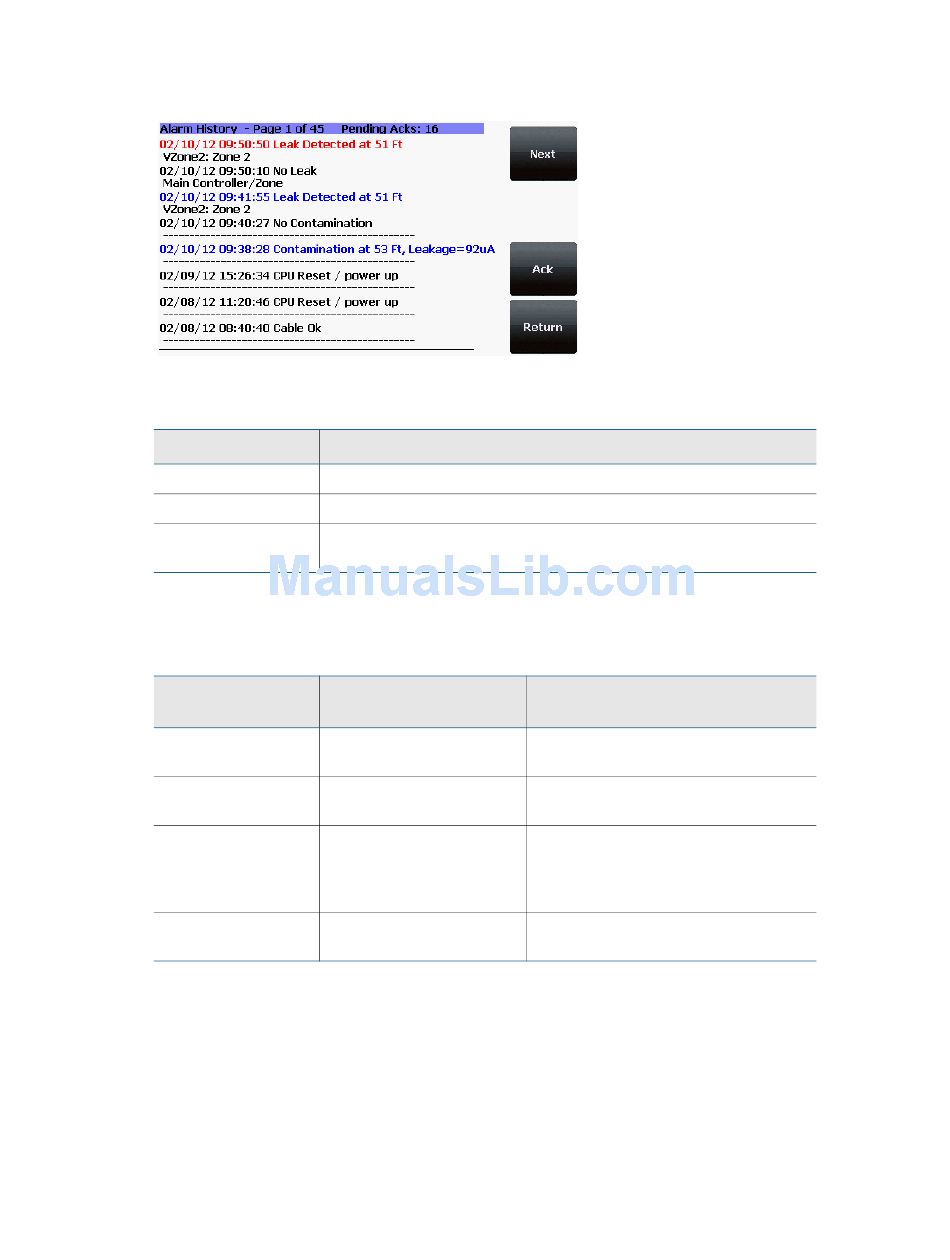

LCD - Alarm History
Description
Unacknowledged alarm
Acknowledged alarm
Alarm condition has returned to normal, or additional
information is provided regarding the LD5200's functionality
LCD Alarm History Color Codes
Function
Advance to the next
page of alarm history
Go back to the previous
page of alarm history
Acknowledge all
unacknowledged alarms
on the current alarm
history page
Return to the Current
Alarms page.
LCD Alarm History Buttons
LD5200 User Guide
Push this button to display the alarm
history. The LD5200 logs the last
1024 alarm events.
Alarm history data is color coded
as follows:
Additional Options Accessible
Through Sub-Menus
No additional options
No additional options
No additional options
No additional options
800.518.1519
