SA1 - Audible Alarm

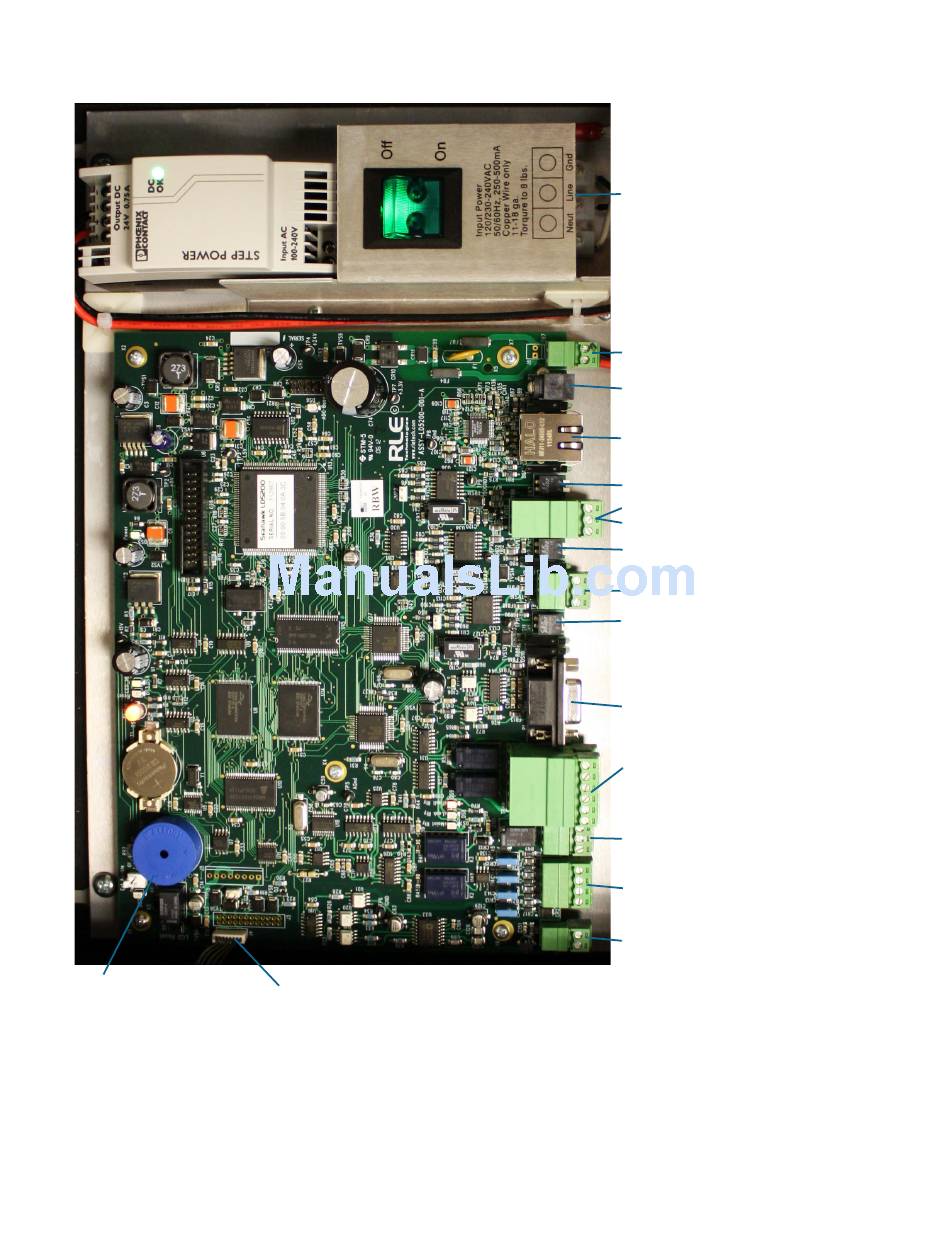

Figure 2.2
rletech.com
J4 - LCD Connection
LD5200 Physical Connections and Switches
LD5200 User Guide
Power Input Terminal Block
TB7 - Input Power
P3 - Optional Power Connection
P2 - Ethernet Jack
SW3 - EIA-485 Port 1 Termination
TB6 Top - EIA-485 Port 1
TB6 Bottom - EIA-485 Port 2
SW2 - EIA-485 Port 2 Termination
TB5 - EIA-485 Port 3
SW1 - EIA-485 Port 3 Termination
P1 - EIA-232 Connector
TB4 - (2) Form C Leak Relay Outputs
and
(2) Form C Fault Relay Outputs
TB3 - Form C Maintenance Relay
TB2 - Cable Interface (W-B-G-R)
TB1 - 4-20mA Output
2 Installation
17
