A Update Firmware
The path and name of the firmware file (.bin) displays in the field to the left of the Browse
button.

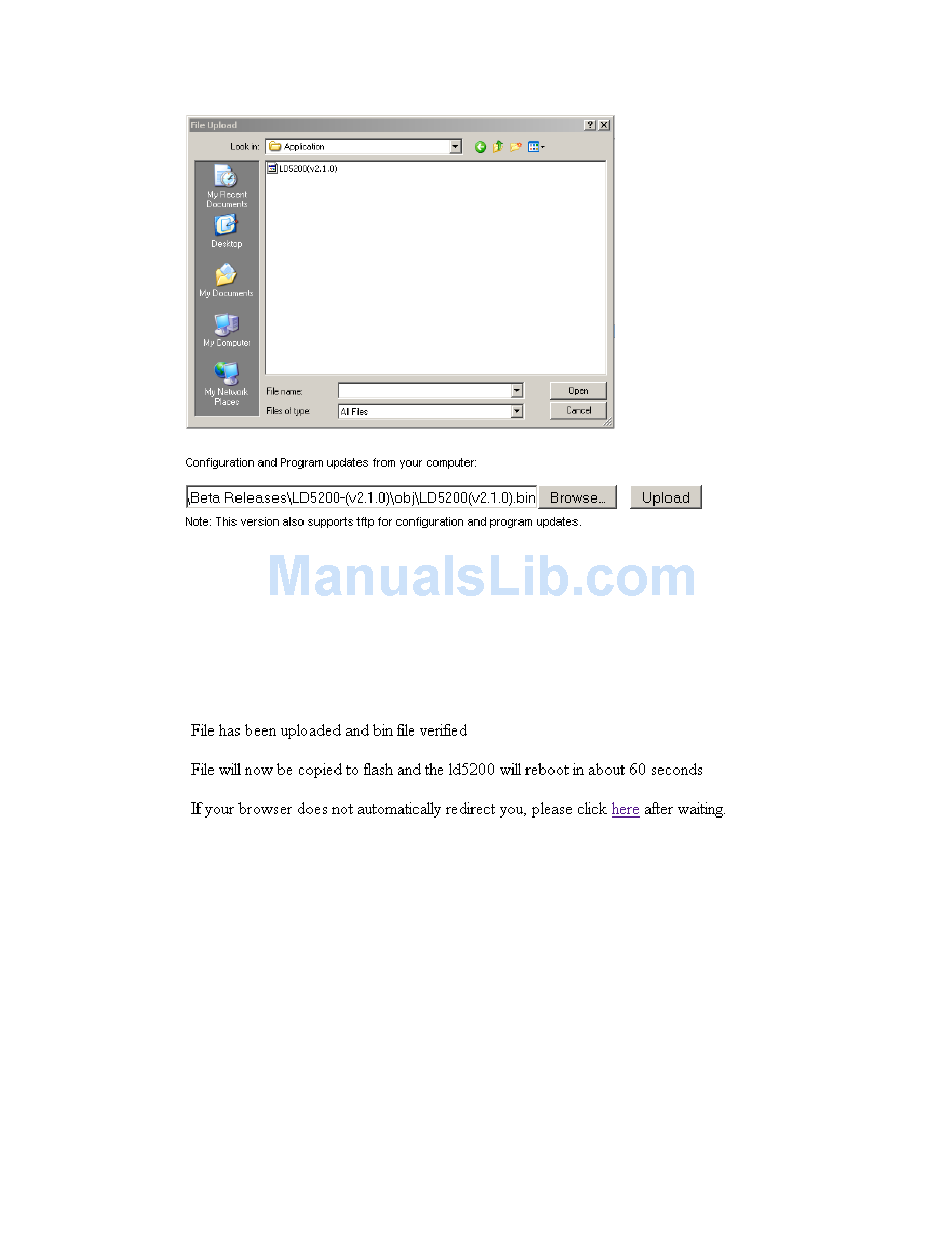

Figure A.2
Click the Upload button.
6
The firmware loads while the web interface displays a message confirming that it is loading
the new file. During this process, the LD5200 module displays a "System is Rebooting."
message and then reboots.
Figure A.3
Once the LD5200 has rebooted, the web interface returns to its Home page. The firmware
7
update is complete, and the LD5200 has resumed its normal operation.
104
Choose the Firmware File
Firmware Load Message
