3.4

Status Button

The Status button allows you to view
current controller status information.
Most of these values can be adjusted
through the Setup button on the main
page of the LCD. The Status page is
intended for reference only, not
system adjustment.
Attribute
Alarm Status
Cable Length
Cable Current
Leg 1 Resistance
Leg 2 Resistance
Leak Alarm Delay
Contamination
Alarm Delay
Re-alarm
Countdown
Last Alarm Time
sysUpTime
Table 3.7
rletech.com
Description
If the controller is in an alarm state, details regarding the alarm
are noted in this field. The field is also color coded to indicate
the type of alarm.
The length of sensing cable connected to the controller, as
calculated by the LD5200
The amount of current running on the sensing cable
The resistance of Leg 1 is displayed in Ohms.
The resistance of Leg 2 is displayed in Ohms.
The amount of time that passes between the time a leak is
detected and the annunciation of the leak alarm.
The amount of time that passes between the time a
contamination is detected and the annunciation of that alarm.
The amount of time remaining until the active alarm is re-
annunciated.
A record of the last time the system detected an alarm
condition.
The amount of time that has passed since the system was last
reset or powered on.
LCD Controller Status Information Fields
LD5200 User Guide
3 LCD Touch Screen Interface

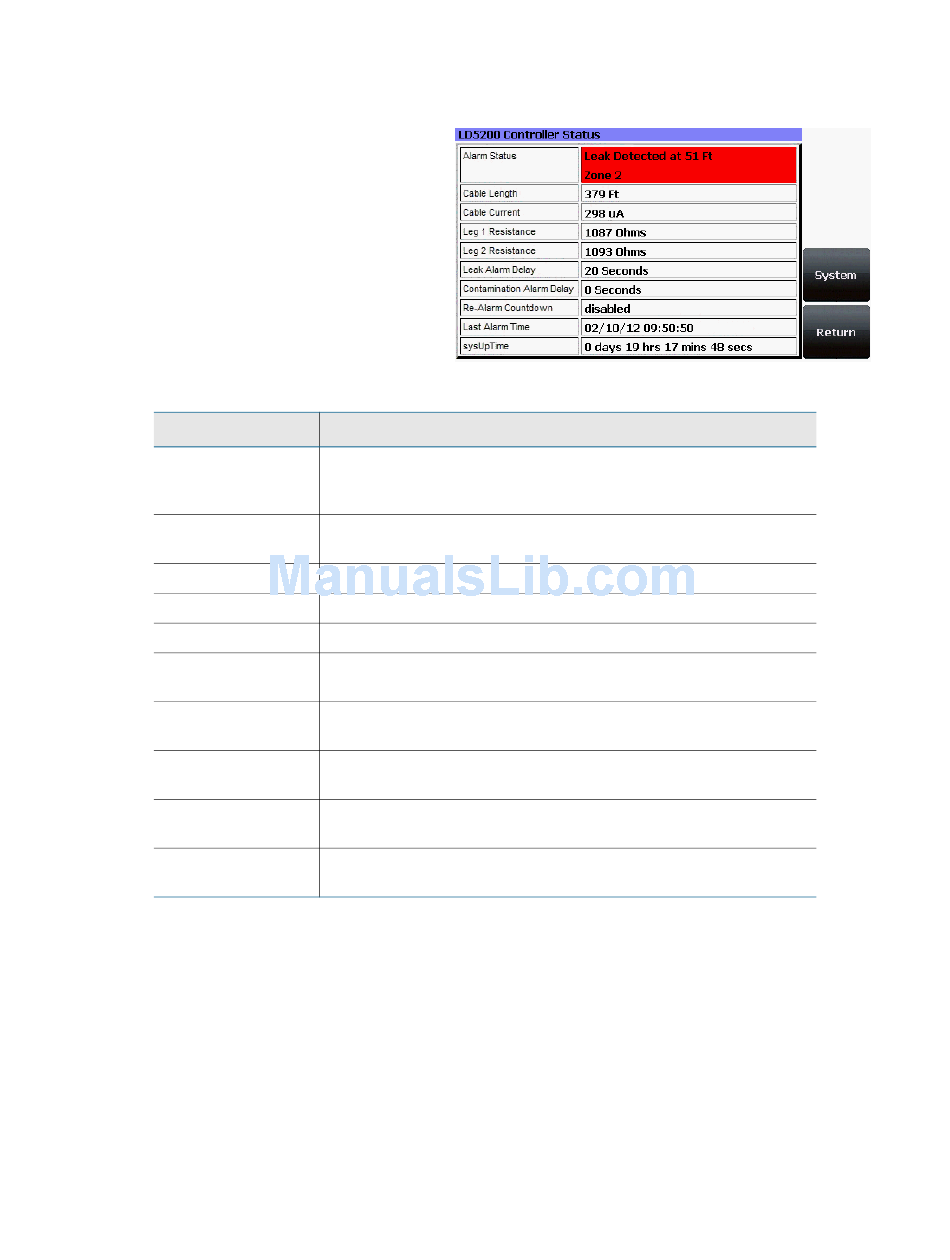

LCD - Controller Status
