4.3.13 EIA-485 Port/Modbus/N2
If the LD5200 will communicate via the EIA-485 port, configure the necessary options here.

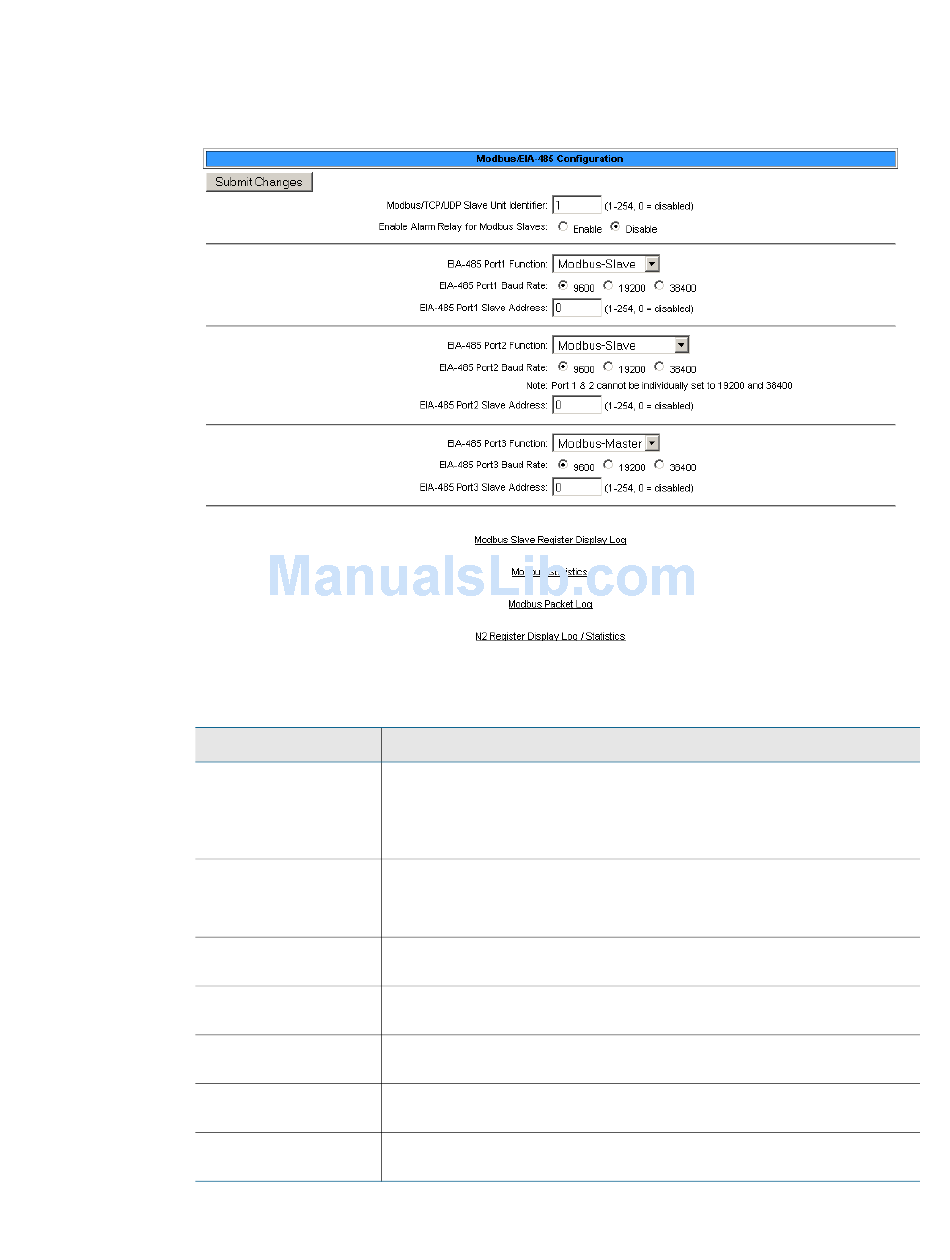

Figure 4.30
Option
Modbus/TCP/UDP
Slave Unit Identifier
Enable Alarm Relay
for Modbus Slaves
EIA-485 Port 1
Function
EIA-485 Port 1 Baud
Rate
EIA-485 Port 1 Slave
Address
EIA-485 Port 2
Function
EIA-485 Port 2 Baud
Rate
Table 4.12
rletech.com
Modbus EIA-485 Page
Description
This designator is used for Modbus RTU over an Ethernet
connection.
Set the slave unit identifier, 1-254. 0 = disabled.
Enable or disable this option
Default setting: Disabled
Select Modbus-Slave or Modbus-Master
Selectable: 9600, 19200, or 38400
Set the slave address, 1-254. 0 = disabled
Select Modbus Slave, Bacnet-MS/TP-Slave, Modbus-Master, or N2
(fixed, 9600, 8, n, 1)
Selectable: 9600, 19200, or 38400
Modbus/EIA-485 Options
LD5200 User Guide
4 Web Interface
77
