3.5.3 Slave Zone

Slave zones are secondary physical
controllers that report to the LD5200.
Zone controllers and distance-read
controllers can be networked as
slaves to a master LD5200. Up to 128
slave devices can report to one
LD5200.

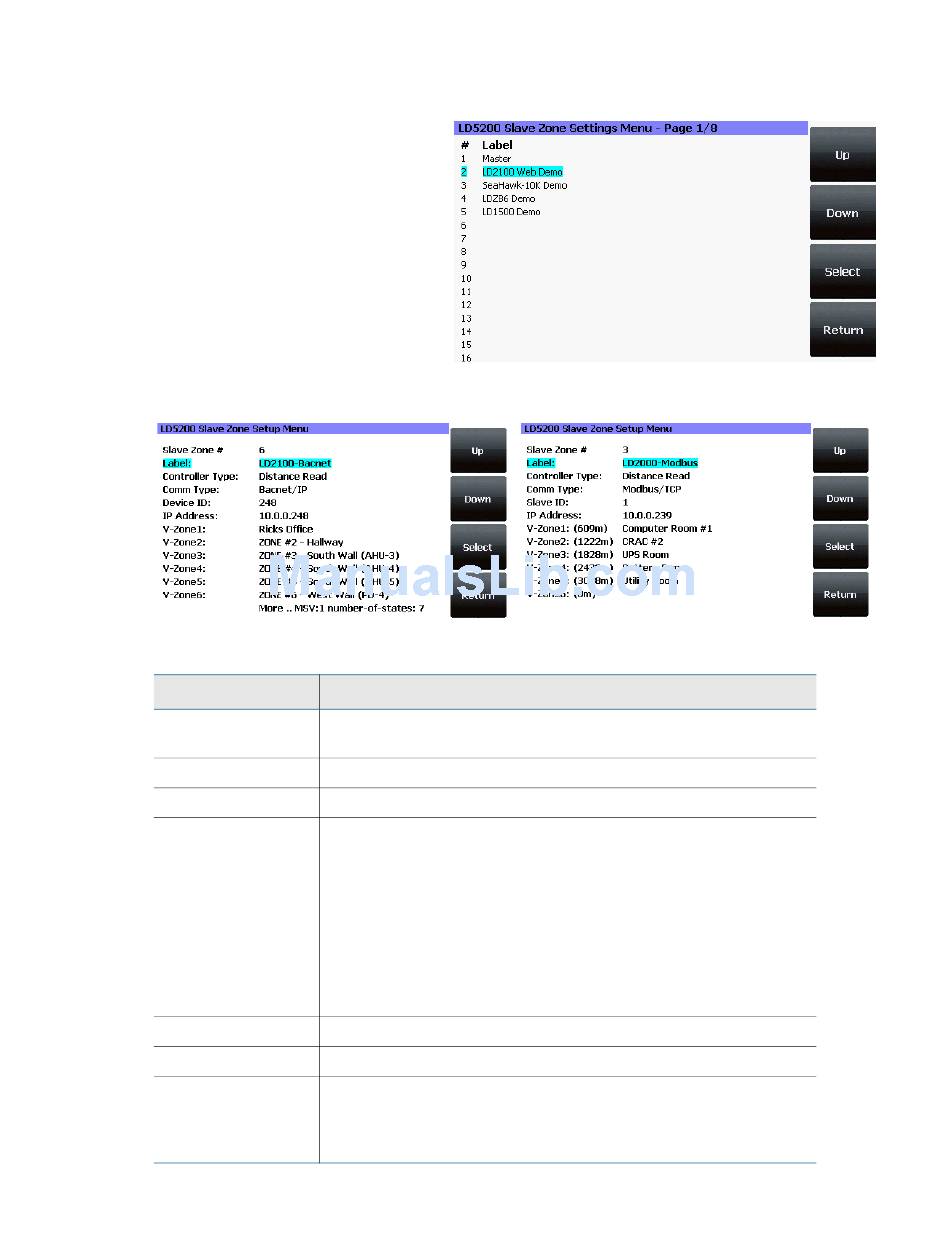

LCD - Slave Zone Setup Menu - Bacnet
Option
Slave Zone #
Label
Controller Type
Comm Type
Slave ID
IP Address
V-Zone
Table 3.12
rletech.com
Description
Non-editable; defined by the blue highlighted device you chose
to configure.
Enter a name for the slave controller, 30 characters or less.
Designate the slave device as zone or distance read
Select a communications type for the slave device:
Comms Disabled
EIA-485 port 1
EIA-485 Port 2
EIA-485 Port 3
Modbus/TCP
Modbus/UDP
Bacnet/IP
Designate the Slave ID or Device ID
Enter the IP Address of the slave device.
Label the virtual zones. A device communicating via Modbus
will have editable zone names and end distances. A device
communicating via Bacnet will be read-only - the LD5200 will
obtain the information from the other controller.
LCD Slave Zones Setup - Configurable Options
LD5200 User Guide
3 LCD Touch Screen Interface
LCD - Slave Zone Settings Menu
LCD - Slave Zone Setup Menu- Modbus
41
