Setup Button - RLE Technologies LD5200 User Manual

3 LCD Touch Screen Interface
3.5

Setup Button

The Setup button provides access to a
wide variety of settings, including:
leak settings, virtual and slave zone
settings, 4-20mA output settings,
preventative maintenance options,
system setting, EIA-485/modbus/N2
settings, and BACnet options. The
clear history buttons are also located
within the Setup options.
The Setup options can be password
protected. By default, there is no
password assigned. The password
screen will pop up even if no
password is applied to the controller.
Press the enter key
through the password screen if no
password has been assigned.
Use the buttons on the right side of
the LCD to navigate through the
menus. The blue highlight indicates
which option is selected. Use the
buttons on the right side of the LCD
to navigate through the menus. Press
the Select button to choose the blue
highlighted option.
36
to pass
( )
LD5200 User Guide

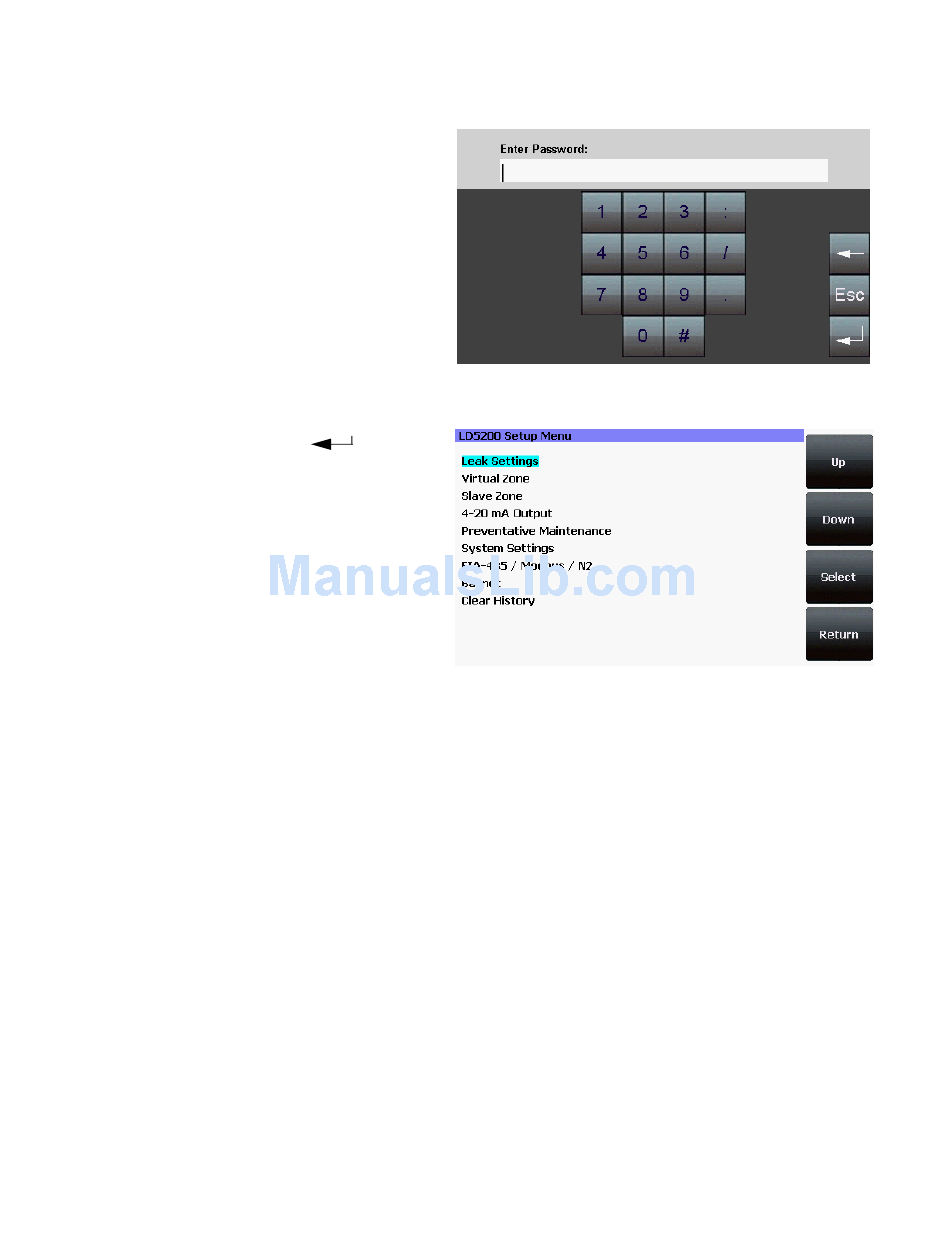

LCD - Password Screen
LCD - Setup Menu
