4.3.4 Slave Zones

If you have designated controllers on the Slave Configuration page, then use this page to label
the slave zone(s). Your available labeling and configuration options will change depending on
the type of device, and how you're obtaining the information. If you are pulling in data via
BACnet IP, the fields will display but will be read only. If there are no slave devices
configured on the unit, you will be rerouted back to the main Configuration page.

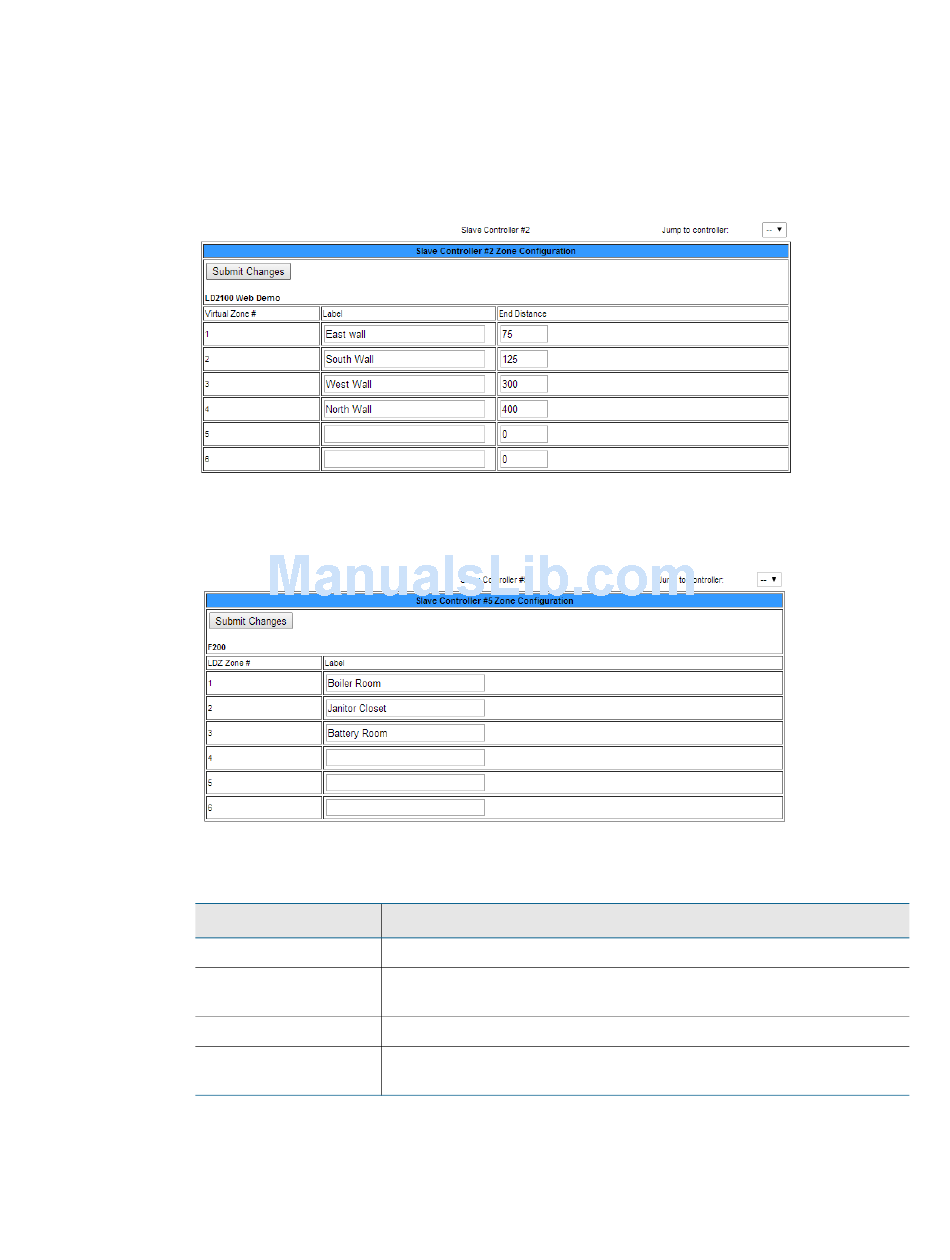

Figure 4.8
.
Figure 4.9
Option
Jump to Unit
Zone #
Label
End Distance
Table 4.4
rletech.com
Slave Zone Configuration Page, Distance-Read via Modbus
Slave Zone Configuration Page, Zone
Description
Use this drop down menu to access additional devices.
A fixed number used to designate the controller, as configured on
the Slave Configuration menu.
Type a descriptive label for the controller, 30 characters or less.
For distance-read systems, the distance reading at the end of that
virtual zone.
LDZ/Slave Zone Label Configuration Options
