3.5.7 EIA-485 / Modbus / N2
If the LD5200 will be
communicating via the EIA-485
port, configure the necessary options
here.
Menu selections are as follows:
Option
TCP/UDP UID
Alarm Relay
EIA-485 Port 1
Port 1 Baud Rate
Port 1 Slave Address
EIA-485 Port 2
Port 2 Baud Rate
Port 2 Slave Address
EIA-485 Port 3
Port 3 Baud Rate
Port 3 Slave Address
Table 3.16
rletech.com
Description
Set the TCP/UDP unique identifier. this will be a value
between 1 and 254. A value of 0 disables this option.
Enable or disable the alarm relay.
Select Modbus-Slave or Modbus-Master
Selectable: 9600, 19200, or 38400
Set the slave address, 1-254. 0 = disabled.
Select Modbus-Slave, Bacnet Ms/Tp Slave, Modbus-
Master, or N2 (fixed, 9600, n,1)
Selectable: 9600, 19200, or 38400
Set the slave address, 1-254. 0 = disabled.
Select Modbus-Slave or Modbus-Master
Selectable: 9600, 19200, or 38400
Set the slave address, 1-254. 0 = disabled.
LCD EIA-485 / Modbus / N2 Setup - Configurable Options
LD5200 User Guide
3

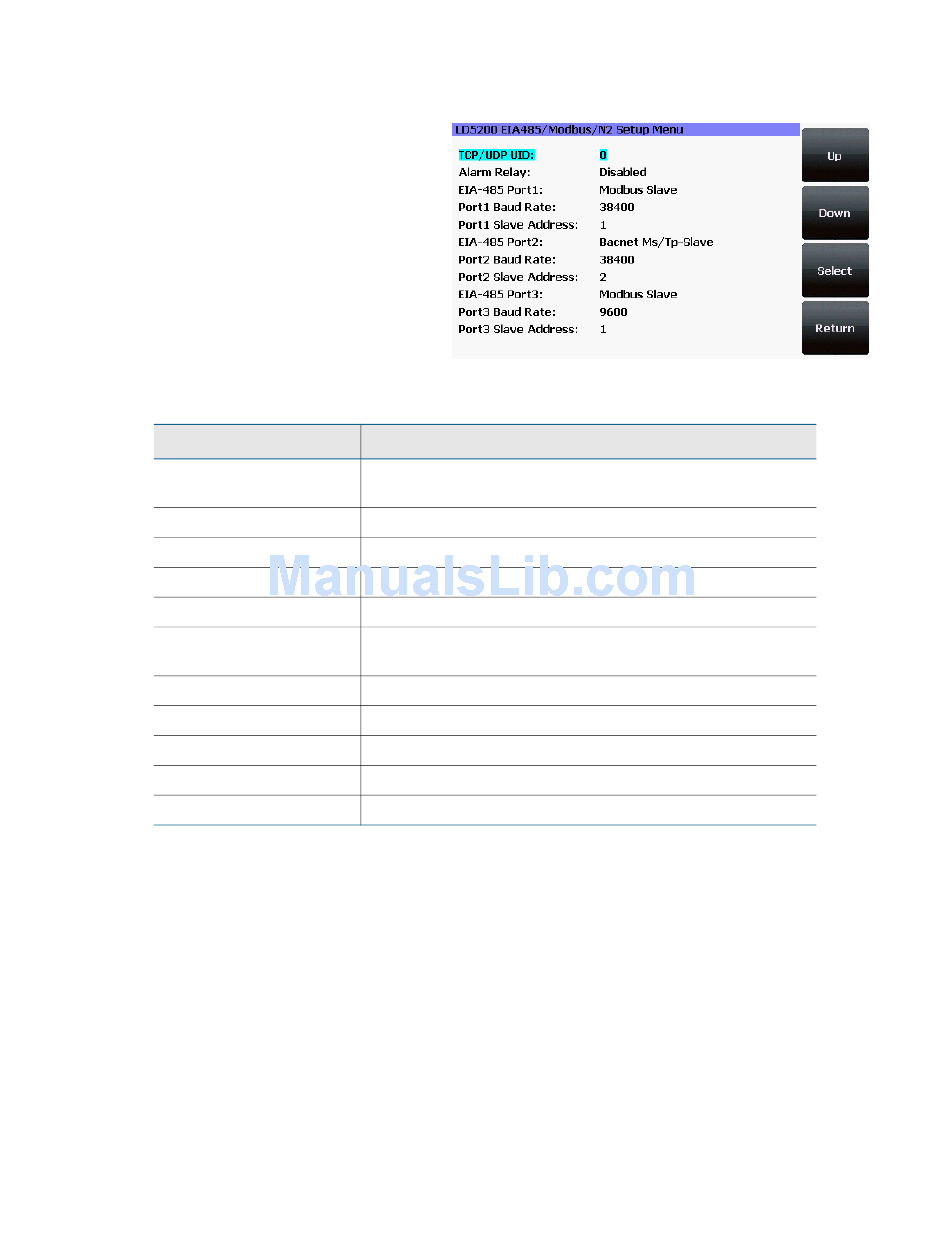

LCD - EIA485/Modbus/N2 Setup Menu
LCD Touch Screen Interface
45
