4 Web Interface

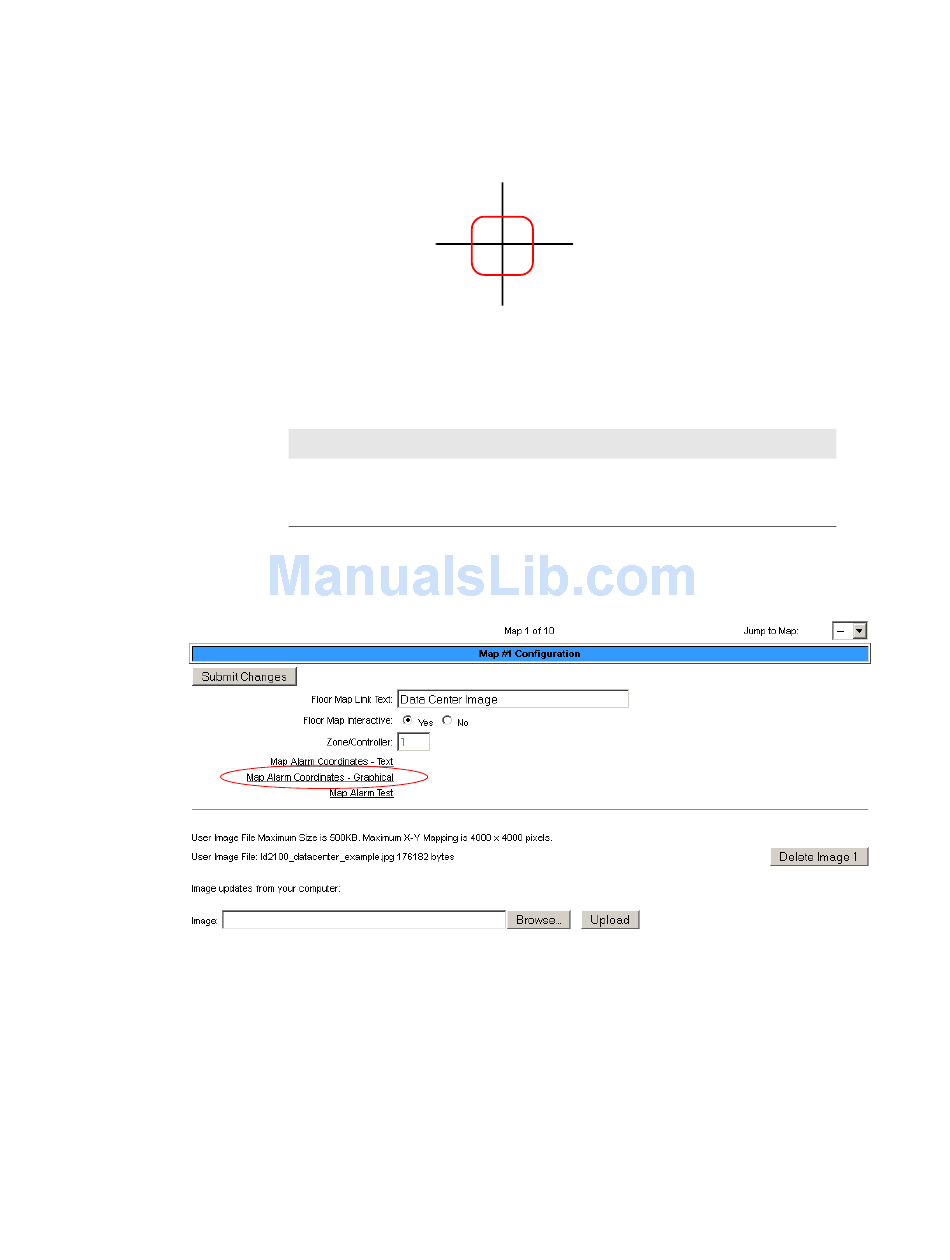

Throughout the mapping process, you will use a set of crosshairs to designate the location of
your mapped points. The LD5200 firmware interprets the area directly in the center of the
crosshairs as your reference point. Therefore, the point you're mapping appears on the map
wherever the center of the crosshairs is located when you click the mouse to designate the
object's location.
Figure 4.18
When mapped, reference points appear on the map as follows:
Figure 4.19
Click the Map Alarm Coordinates - Graphical link on the Map Configuration web page.
1
Figure 4.20
The Graphical Mapping link takes you to a view of your map image. This is where you'll
2
designate the physical locations of your mapped coordinates. In the "Enter a distance" box
66
Mapping Crosshairs - Reference Point
Point
Leak detected
Map Key
Graphical Mapping Link
LD5200 User Guide
Map Display
Red square in the leak's location.
The square does not appear on the map until
a leak is detected.
