F200 Configuration Guide
Thank you for purchasing a Falcon F200. This Configuration Guide is the second
step in the F200 installation process. Before you use this guide, be sure you've
completed all the steps in the F200 Startup Guide. Both documents are packaged
with the F200 and available in the support section of our website, rletech.com.
Before you begin to configure your device consult our website to ensure you're
working with the most recent version of documentation for this product.
If you need further assistance, contact RLE Technologies at support@rletech.com.
v4.2
Compatible with firmware version 4100.7 and above
(1/2017)
© Raymond & Lae Engineering, Inc. 2011. All rights reserved. RLE® is a registered trademark and Seahawk™, Falcon™, and Raptor™ are trademarks
of Raymond & Lae Engineering, Inc. The products sold by RLE Technologies, 104 Racquette Dr., Fort Collins, CO 80524 are subject to the limited war-
ranty, limited liability, and other terms and conditions of sale set forth at http://www.rletech.com/.
Before you begin, be sure you have access to the following equipment
and information - if applicable:
F200 device
Temperature and temperature/humidity sensors
Conductive fluid or chemical sensing cable, plus leader cable kit and EOL terminator
1U rack mount bracket
The F200's serial number is found on the white sticker affixed to the bottom of the
unit.
• Serial Number ____________________________________________
• IP Address _______________________________________________
Before you configure the F200, complete ALL STEPS in the F200 Startup
Guide. The F200 should be powered up and you should be able to access
the F200's web interface Dashboard via the unit's IP address or NetBIOS.

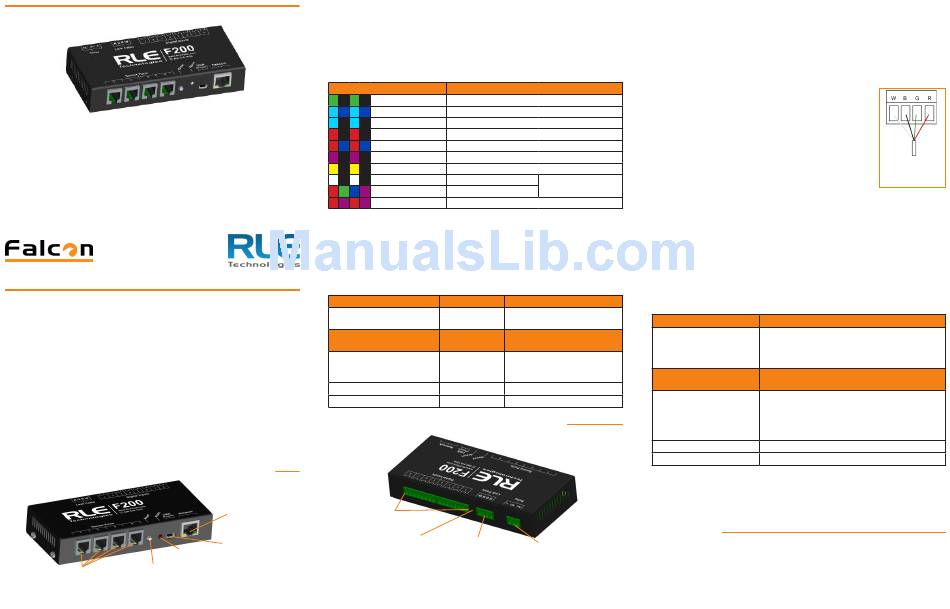

F200: Front Connections, Silence/Reset Button, and LED
Status
Silence/Reset
1-Wire Sensor
Button
Connections
1-Wire Sensor Connections
Plug in your temperature and temperature/humidity sensors. They click into place
in the sensor ports on the front of the unit.
Status LED
The F200 has one multi-color LED on its front side. There are a variety of alarm
and alert patterns and colors programmed for this LED. Use the following chart to
determine which alarms are active on your F200.
Blink Pattern
Alarm Silence and System Reset Button
The alarm reset is located on the front of the unit, near the LED. When the audible
alarm is active, push this button once to silence the audible alarm. You'll know
which alarm is active and associated with the audible alarm because the LED will
blink to indicate a specific alarm condition.
There are several reset functions assigned to this button. Press the button (and
hold when indicated) to achieve the desired functions:
Press Button and Release
One quick beep
Press Button and Hold;
Release After
Two consecutive beeps
Three consecutive beeps
Four consecutive beeps
F200: Rear Connections and Configuration Button
Network
Connection
Power
Connection
LED
Digital Inputs
The F200 can monitor up to eight digital inputs, each of which connects to the F200
through a 2-wire connection on the back of the unit. When you're looking at the
Status Description
Green / Off (Intermittent) Normal status - no alarms are present
Lt. Blue / Blue Alarm - Leak detection cable break
Lt. Blue / Off Alarm - A leak has been detected
Red / Off Alarm - Temperature
Red / Blue Alarm - Humidity
Magenta / Off Alarm - Digital input
Yellow / Off No network connection
White / Off Unit is booting*
* Do not access or configure the
F200 while these alerts are active.
Mixed Firmware update is executing*
Red / Magenta Call RLE - the F200 has an internal error
LED Color Action
Blinking LED Silence audible alarm
error indicator
LED Color Action
Green Reset all alarms. If any alarms
are currently active, they will
immediately re-alarm.
Red Toggle the relay output
White Reboot the F200
Digital Input
Connections
Configuration
Leak Detection
Relay
Button
Leader Cable
Output
Connection
back of the unit, note that input 1 is on the right side of the terminal blocks and
input 8 is on the left side of the terminal blocks.
To connect your digital inputs to the F200, loosen the screws on the appropriate
slots on the terminal block connector and insert the two wires from your digital
input - one in each slot. Tighten the screws to secure the connections.
Leak Detection Sensing Cable
Since leak detection sensing cable cannot connect directly to a controller, leader
cable is used to connect leak detection cable to the F200.
1. Remove the 4-pin terminal block connector from the
connection labeled Leak Cable on the back of the unit.
2. Insert the stripped wires of the leader cable into the
appropriate slots in the terminal block connector - from left
to right: white, black, green, red. Tighten the screws on the
connector to secure the wires. Plug the connector - with the
wires in the correct order - into the connection labeled Leak
Cable on the back of the device.
3. Unscrew the EOL from the end of the leader cable.
4. Attach the length of sensing cable to the leader cable.
5. Route the sensing cable according to your cable layout diagram.
6. Secure the EOL to the unoccupied end of the sensing cable.
Relay Output
The F200 has one relay output - use this to control an external device in the event
of an alarm condition. Loosen the screws on the appropriate slots on the terminal
block connector and insert the wires for your relay output into the correct slots -
NC-NO-C. Tighten the screws to secure the connections.
Configuration Button
The configuration button is used for advanced troubleshooting. This button needs
to be accessed with the tip of a small object, like a paperclip. Insert it into the hole
and press the button (and hold when indicated) to achieve the desired functions:
Press Button and Release Action
One beep Temporarily enables DHCP. The F200 will remain
this way until it is rebooted, power is cycled, or the
IP is configured. See the F200 Startup Guide for
more information on DHCP and IP addressing.
Press Button and Hold; Action
Release After
Two consecutive beeps Temporarily set the unit's static IP address to
10.0.0.188. The F200 will remain this way
until it is rebooted, power is cycled, or the IP is
configured. See the F200 Startup Guide for more
information on DHCP and IP addressing.
Three consecutive beeps Disables the administrator password.
Four consecutive beeps Reset to all factory default settings
Mount the Controller
Once all connections have been wired to the F200, mount the device in an
appropriate location. RLE recommends a secure mounting option through either
the keyhole cutouts on the enclosure or through the optional 1U rack mount kit.
Web Interface
Dashboard
Accessible from any web browser or mobile device, the Dashboard includes the
status of all sensors, digital inputs, and sensing cables the F200 monitors. As
sensors are connected to the F200, their readings appear on the Dashboard. If
leak detection cable is connected to the F200, use the Inputs tab on
the Setup menu to enable leak detection monitoring and its Dashboard
display.
Leak Detection Leader
Cable Terminal Block
Connection Wiring
Order
