Installation
1

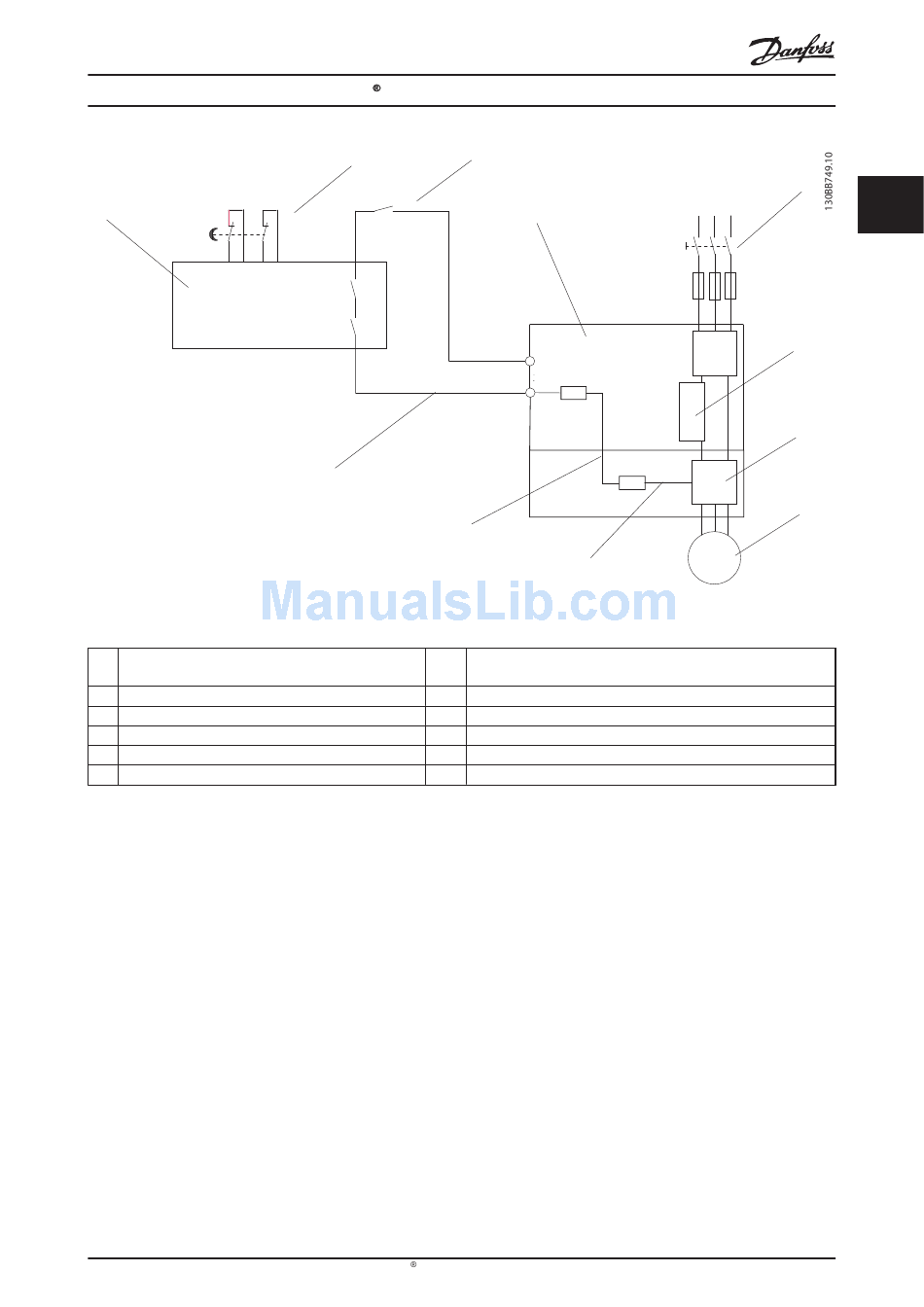

Illustration 2.14 Installation to Achieve a Stopping Category 0 (EN 60204-1) with Safety Cat. 3 (EN 954-1) / PL "d" (ISO 13849-1).
1 Safety device Cat. 3 (circuit interrupt device, possibly with
release input)
2 Door contact
3 Contactor (Coast)
4 Frequency converter
5 Mains
6 Control board
inverter.ru (812) 702-47-50
VLT Decentral Drive FCD 302 Operating Instructions
3
2
11
10
7 Inverter module
8 Motor
9 5V DC
10 Safe channel
11 Short-circuit protected cable (according to ISO 13849-2 table D.4)
