Installation
2 2

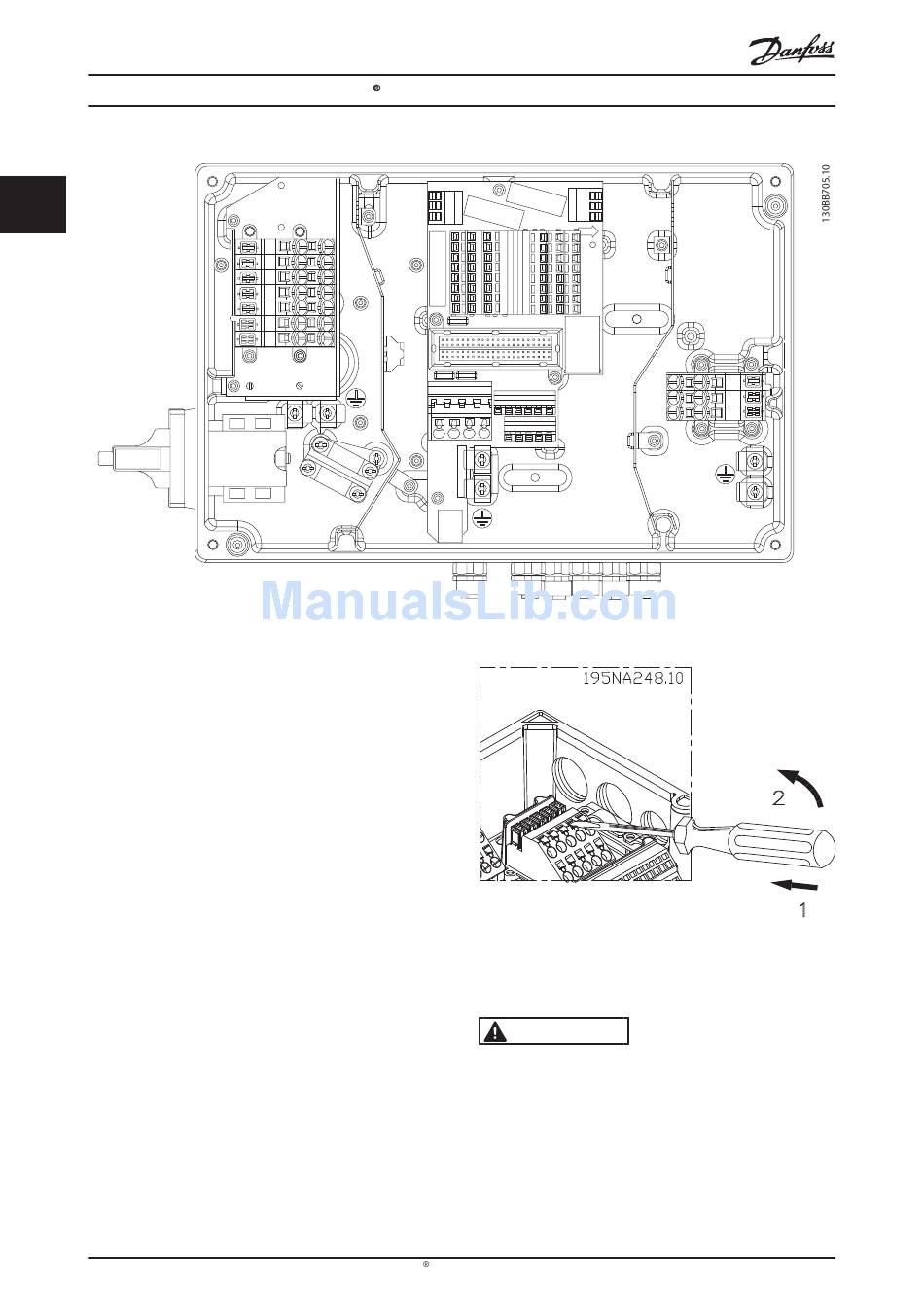

Illustration 2.6 Service Switch on Motor Side and Sensor Plugs

2.4.3 Terminal Types

Motor, control, and mains terminals are spring loaded
(CAGE-CLAMP) type.
1. Open the contact by inserting a small screwdriver
into the slot above the contact, as shown in
Illustration 2.7.
2. Insert the stripped wire into the contact.
3. Remove the screwdriver to fasten the wire into the
contact.
4. Ensure the contact is firmly established and not
loose. Loose wiring can result in equipment faults
or injury.
14
inverter.ru (812) 702-47-50
VLT Decentral Drive FCD 302 Operating Instructions
Illustration 2.7 Opening the Terminals

2.4.4 Motor Connection

INDUCED VOLTAGE
Run output motor cables from multiple frequency converters
separately. Induced voltage from output motor cables run
together can charge equipment capacitors even with the
equipment turned off and locked out. Failure to run output
motor cables separately could result in death or serious
injury.
MG.04.F2.02 - VLT is a registered Danfoss trademark
WARNING
