2.3.5 Tightening Torques

For compressing the gasket between the two parts, the screws must be tightened with 2.8-3.0Nm. Tighten the screws in a
cross-over way.

2.4 Electrical Installation

The frequency converter must be wired for operation in the following manner:
• •
Wire the motor to the frequency converter output terminals.
•
Connect control and serial communication wiring.
•
Wire the AC mains to the frequency converter input terminals.
•
After power has been applied, input and motor power must be checked, and control terminals programmed for
intended functions.
This section provides detailed descriptions of the requirements and procedures to accomplish these tasks. The following

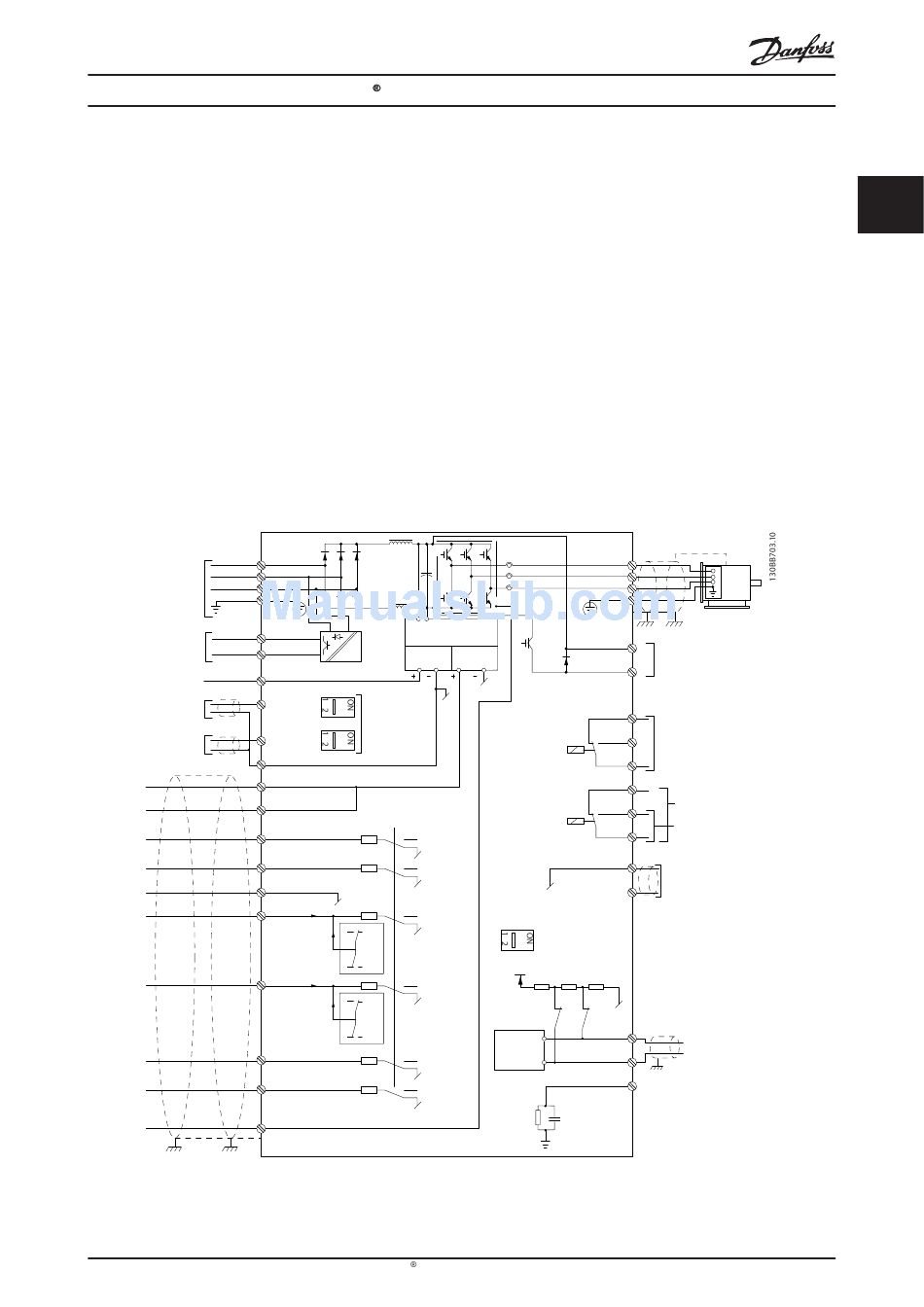

illustration shows a basic electrical connection.
3 phase
power
input
Mechanical
brake
+10Vdc
-10Vdc-
+10Vdc
0/4-20 mA
-10Vdc-
+10Vdc
0/4-20 mA
Illustration 2.5 Electrical Installation
inverter.ru (812) 702-47-50
VLT Decentral Drive FCD 302 Operating Instructions
91 (L1)
92 (L2)
93 (L3)
95 (PE)
Switch Mode
122(MBR+)
Power Supply
123(MBR-)
10Vdc
15mA
50 (+10 V OUT)
S201
53 (A IN)
ON/I=0-20mA
S202
OFF/U=0-10V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
P 5-00
24V (NPN)
18 (D IN)
OV (PNP)
24V (NPN)
19 (D IN)
OV (PNP)
20 (COM D IN)
24V (NPN)
27 (D IN/OUT)
OV (PNP)
24V (NPN)
29 (D IN/OUT)
OV (PNP)
24V
OV
24V (NPN)
32 (D IN)
OV (PNP)
24V (NPN)
33 (D IN)
OV (PNP)
37 (D IN)
MG.04.F2.02 - VLT is a registered Danfoss trademark
(U) 96
(U) 97
(W) 98
(PE) 99
24Vdc
(R+) 82
130/500mA
(R-) 81
relay1
03
02
01
relay2
06
05
04
(COM A OUT) 39
(A OT) 42
0V
S801
ON=Terminated
OFF=Open
5V
GX
S801
RS-485
(N RS-485) 69
Interface
(P RS-485) 68
(COM RS-485) 61
Motor
Brake
resistor
240Vac, 2A
240Vac, 2A
400Vac, 2A
Analog Output
0/4-20 mA
RS-485
(PNP) = Source
(NPN) = Sink
2 2
