User Interface

4 User Interface

4.1 Local Control Panel

The local control panel (LCP) is the combined display and
keypad, which can be attached to the display connector
4 4
outside the unit (without opening the enclosure) via the LCP
cable/plug. The LCP is the user interface to the frequency
converter.
The LCP has several user functions.
• •
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming frequency converter functions
•
Manually reset the frequency converter after a fault
when auto-reset is inactive
An optional numeric LCP (NLCP) is also available. The NLCP
operates in a manner similar to the LCP. See the
Programming Guide for details on use of the NLCP.
28
inverter.ru (812) 702-47-50
VLT Decentral Drive FCD 302 Operating Instructions

4.1.1 LCP Layout

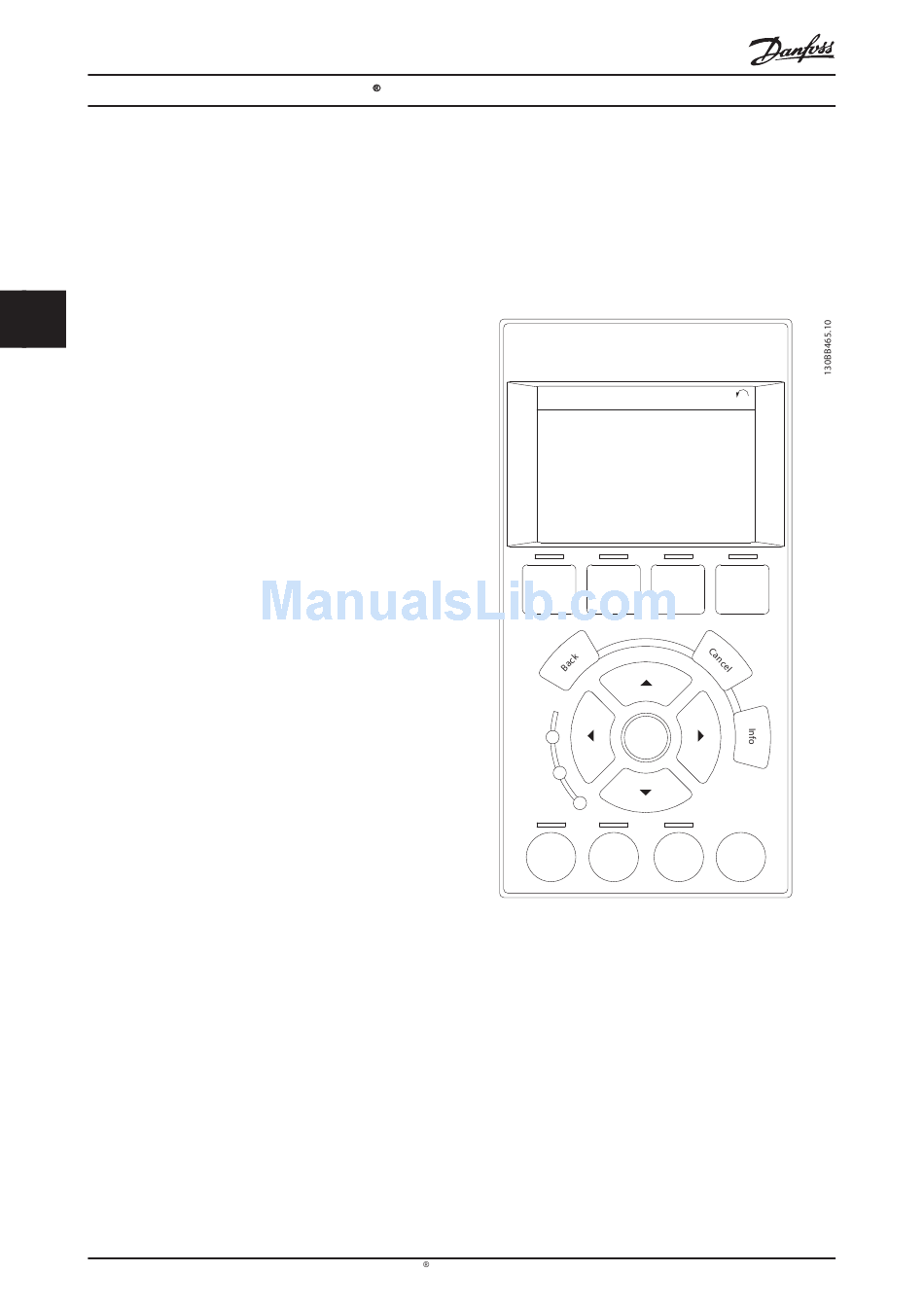

The LCP is divided into four functional groups (see
Illustration 4.1).
a
b
c
d
Illustration 4.1 LCP
a.
b.
c.
d.
MG.04.F2.02 - VLT is a registered Danfoss trademark
Status
1234rpm 10,4A
43,5Hz
Run OK
Quick Main
Status
Menu Menu
OK
On
Warn.
Alarm
Hand Auto
Off
on on
Display area.
Display menu keys for changing the display to
show status options, programming, or error
message history.
Navigation keys for programming functions,
moving the display cursor, and speed control in
local operation. Also included are the status
indicator lights.
Operational mode keys and reset.
1(1)
43,5Hz
Alarm
Log
Reset
