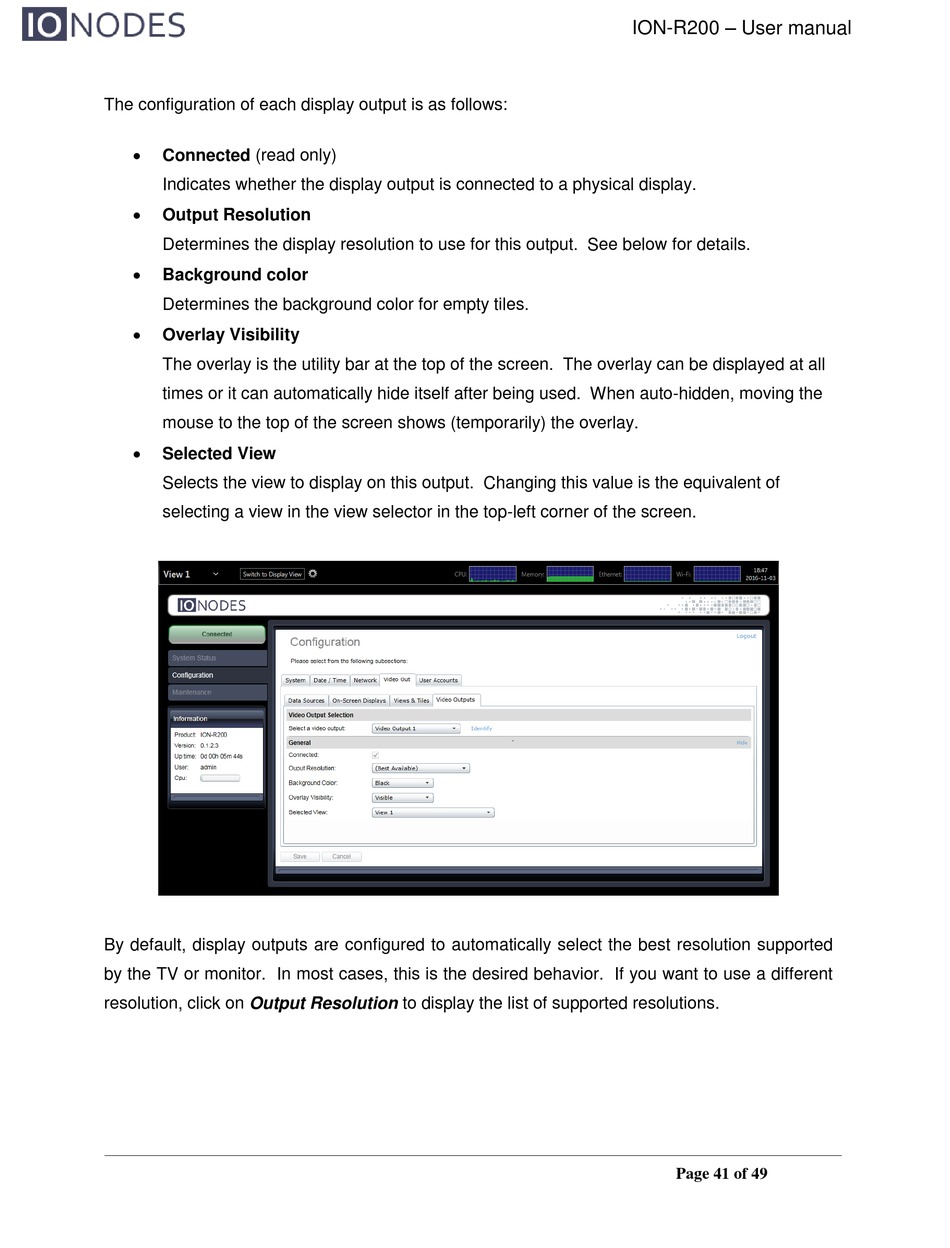

The configuration of each display output is as follows:

Connected (read only)
Indicates whether the display output is connected to a physical display.

Output Resolution
Determines the display resolution to use for this output. See below for details.

Background color
Determines the background color for empty tiles.

Overlay Visibility
The overlay is the utility bar at the top of the screen. The overlay can be displayed at all
times or it can automatically hide itself after being used. When auto-hidden, moving the
mouse to the top of the screen shows (temporarily) the overlay.

Selected View
Selects the view to display on this output. Changing this value is the equivalent of
selecting a view in the view selector in the top-left corner of the screen.
By default, display outputs are configured to automatically select the best resolution supported
by the TV or monitor. In most cases, this is the desired behavior. If you want to use a different
resolution, click on Output Resolution to display the list of supported resolutions.
