ION-R200 – User manual
The ping timeout option can be increased for a high latency network.

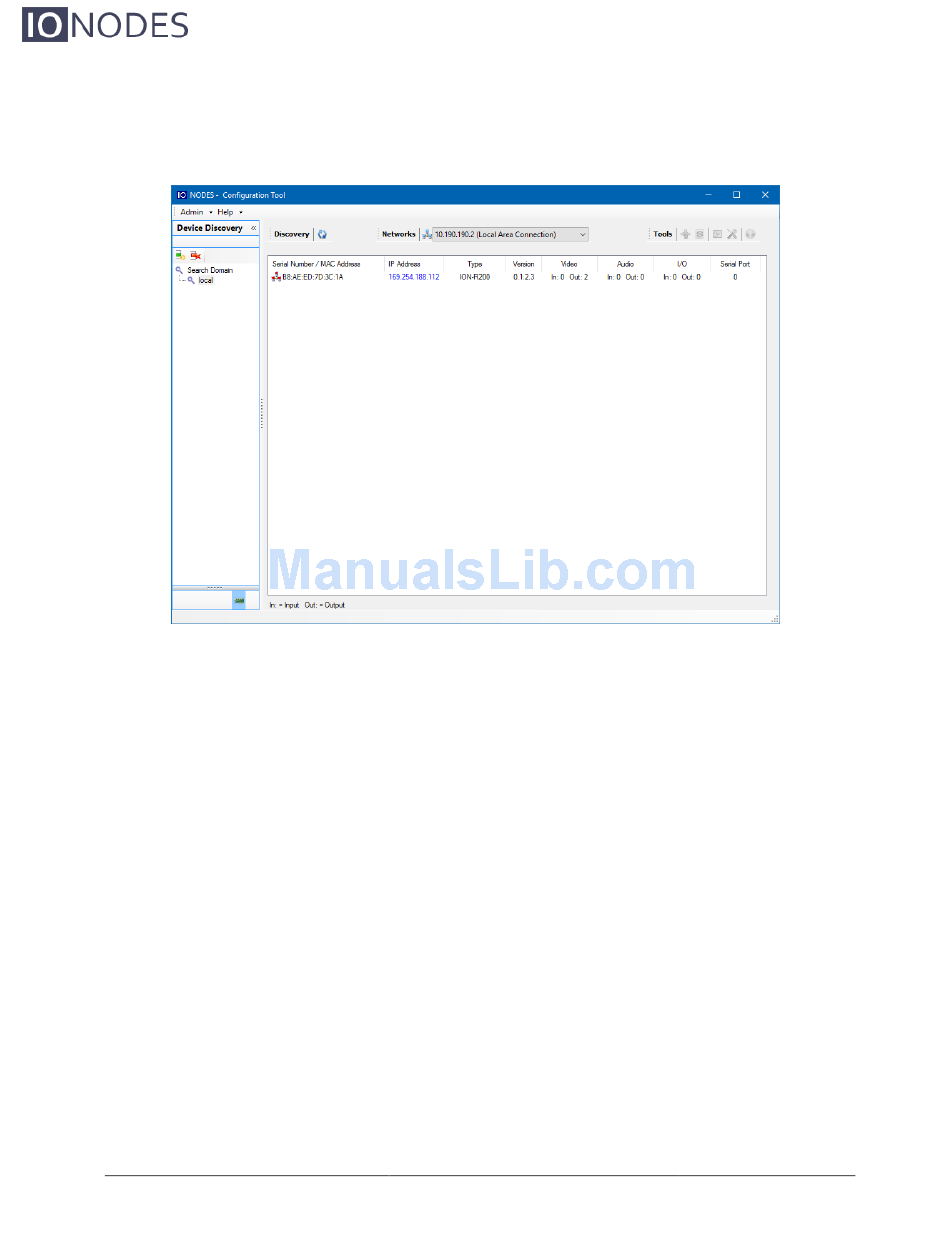

The ICT will display as many devices as it discovers on the network.
The ICT displays the current IP address of each detected device. If the device is configured in
DHCP mode, its IP address appears in blue.
If a DHCP server is present on your network, it assigned an IP address to the device during the
device's boot-up sequence.
If no DHCP server was able to assign an IP address to an ION-R200, it will appear in the ICT
device list with an APIPA address (169.254.*.*). If an ION-R200 displays an APIPA address it
must be configured with a valid IP address before it can be used on the network. Select the
''Assign IP address'' from the selection list and apply the desired TCP/IP settings to the device.
Page 21 of 49
