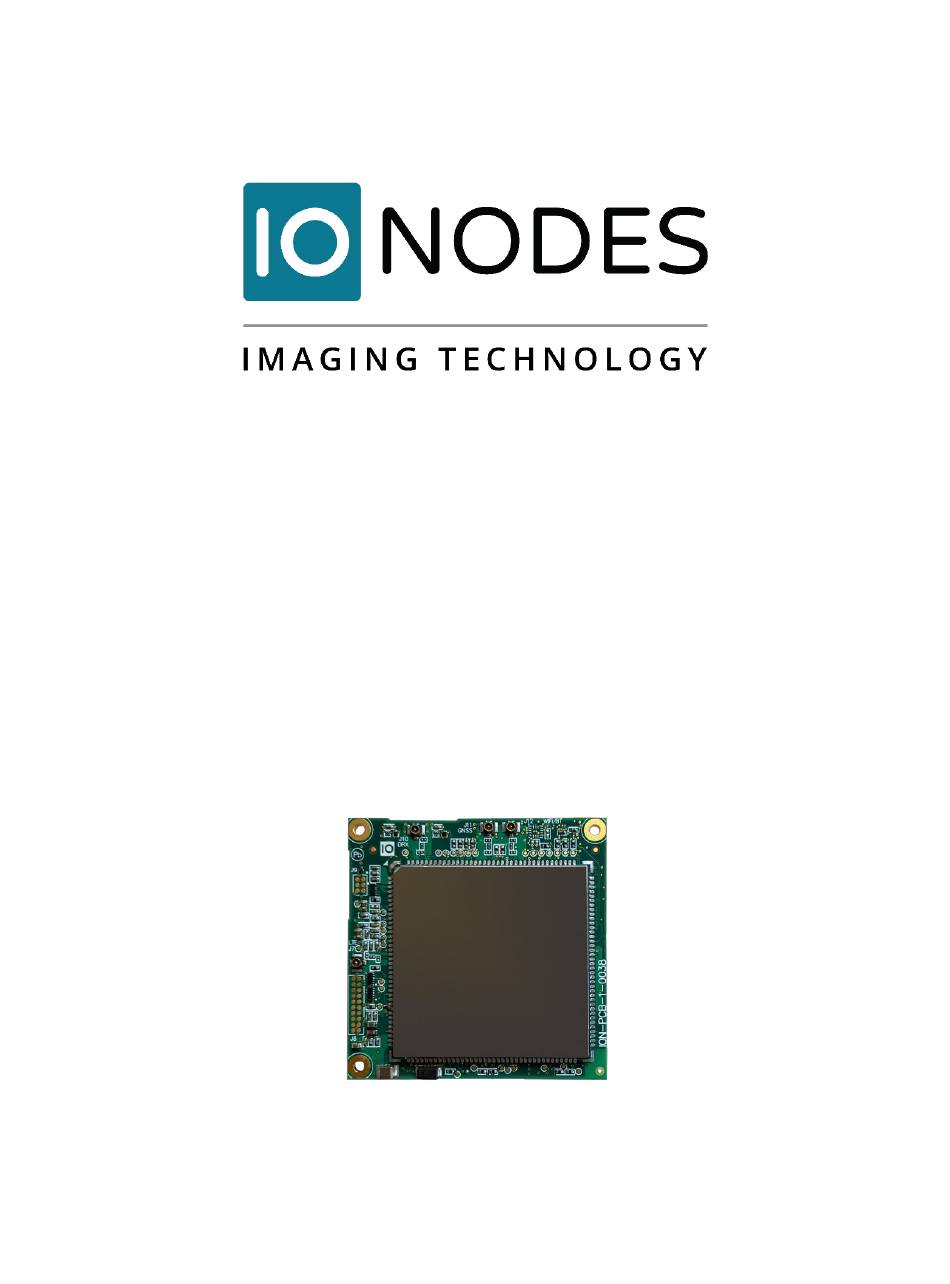

- Page 1 ATOMAS-IOT-DUAL User Manual IP Video Encoder Platform Document Version 1.1...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with the recipient. In no event shall IONODES be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without...
-
Page 3: Table Of Contents
About the ATOMAS-IOT-DUAL ........................4 Parts List ................................5 Hardware Integration ............................ 6 Temperature Considerations ........................6 ATOMAS-IOT-DUAL Specifications and Functions ..................7 Board layout ............................7 Connector Part Numbers ........................9 5.2.1 J1 – Ethernet + Power ........................10 5.2.2... -
Page 4: About The Atomas-Iot-Dual
VMS systems, on-premises and Cloud. Simultaneous Dual Camera Support The ATOMAS-IOT-DUAL is designed for direct connection to the leading LVDS zoom camera blocks, such as SONY and KT&C, with simultaneous support of a MIPI and or digital video source such, such as a thermal camera. -
Page 5: Parts List
Note: The product serial number label helps our product support team identify your device and its factory configuration in the event that your IONODES product or its components require service. The label is attached to the underside of the PCBA. -
Page 6: Hardware Integration
3 Hardware Integration The ATOMAS-IOT-DUAL has been designed to allow for flexible hardware integration to existing or new product designs. The ATOMAS-IOT-DUAL proposes three (3) mounting holes for securing to your enclosure. In addition, a slight clearance around the board’s edge can also be used for extrusion-type enclosures. -
Page 7: Atomas-Iot-Dual Specifications And Functions

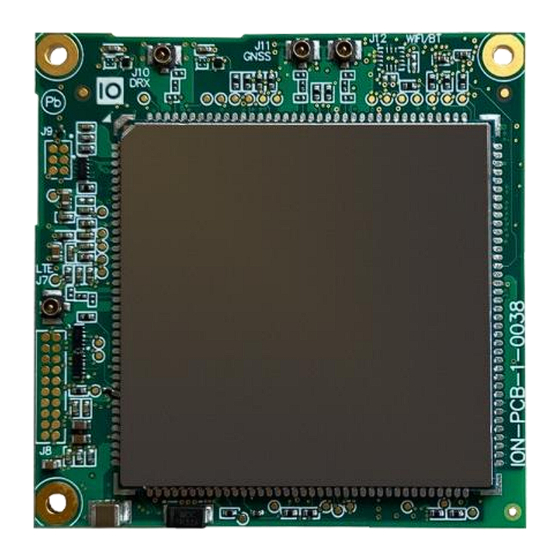

5 ATOMAS-IOT-DUAL Specifications and Functions 5.1 Board layout Figure 1 - ATOMAS-IOT-DUAL Top Side www.ionodes.com... - Page 8 Figure 2 - ATOMAS-IOT-DUAL Bottom Side www.ionodes.com...
-
Page 9: Connector Part Numbers
5.2 Connector Part Numbers ATOMAS-IOT-DUAL • o J1 – Ethernet + Power / Molex 203564-2017 o J2 – MIPI Video Interface / Hirose BM20B(0.8)-30DS-0.4V o J3 – SD-CARD / SIM / Molex 503480-1600 o J4 – LVDS Video Interface / KEL Corporation USL00-30L-A o J5 –... -
Page 10: J1 - Ethernet + Power
3V output and 5.5 mAh capacity. J1 provides standard 4-wire network connectivity. You only need 4 wires for 10/100 Base-T network connection; please connect the appropriate network connection pins to your RJ45 connector or wiring. Network status LED pins are also accessible if needed. www.ionodes.com... -
Page 11: J2 - Mipi Video Interface
I2C SDA #Reset NOT CONNECTED NOT CONNECTED NOT CONNECTED NOT CONNECTED Note: This video interface is natively compatible with the IONODES MIPI camera with OV12A10 sensor and Panomorph lens (ION-CAM-OV12A10MIPI). For connecting other MIPI cameras an adapter board is required. www.ionodes.com... -
Page 12: J3 - Sd-Card / Sim
SIM DATA Note: This socket is intended to be connected to the optional IONODES SIM/SD combo adapter board. In order to use the SD functionalities, make sure to install a microSD card of up to 512GB capacity, with speed class 10 or above for optimal performance. You must also make sure the card is formatted in EXT4 (formatting of the card can also be performed via the encoder). -
Page 13: J4 - Lvds Video Interface
6V to 12V DC IN 6V to 12V DC IN 6V to 12V LVDS DATA7 + LVDS DATA7 - LVDS DATA6 + LVDS DATA6 + NOT CONNECTED Reset# LVDS DATA5 + LVDS DATA5 - LVDS DATA4 + LVDS DATA4 - www.ionodes.com... -
Page 14: J5 - Audio & I/O
TTL level, 3.3V UART0 TX TTL level, 3.3V UART1 TX TTL level, 3.3V Note: The RS-422/485 and UART 0 are internally using the same port, so they cannot be used both at the same time. The configuration is software selectable. www.ionodes.com... -
Page 15: J6 - Parallel Video Interface
In order to connect a camera block via this interface an adapter board is required. Currently, the only available adapters are for the FLIR BOSON 320/640 (60 Hz version only), DRS Tenum 640 thermal cameras and analog HD component/ SD composite cameras. www.ionodes.com... -
Page 16: Understanding Led Status
5.3 Understanding LED Status Status of the ATOMAS-IOT-DUAL is exposed via the on-board bi-color LED (Green/Red). The following describes the system status LED mappings of the ATOMAS-IOT-DUAL: Normal Operation: Operating system boot up – LED is steady red (2-5 seconds) and after that LED is steady orange (30- •... -
Page 17: Atomas-Mini-Boson-Adapt
6 ATOMAS-MINI-BOSON-ADAPT The ATOMAS-MINI-BOSON-ADAPT module is a video interface add-on module, fully compatible with the ATOMAS-IOT-DUAL encoder platform. This optional module provides a direct connection to FLIR BOSON 320/640 (60Hz variant) thermal camera on the parallel video interface of the ATOMAS-IOT-DUAL. -
Page 18: Connector Part Numbers
6.2 Connector Part Numbers J1 – FLIR Connector / Hirose DF40HC-(4.0)-80DS-0.4V • J2 – KEL Connector (towards ATOMAS-IOT-DUAL ) / KEL USL00-30L • Note: The J2 connector on the ATOMAS-MINI-BOSON-ADAPT module is designed to mate with connector J6 of the ATOMAS-IOT-DUAL module. -
Page 19: Atomas-Mini-Tenum-Adapt
7 ATOMAS-MINI-TENUM-ADAPT The ATOMAS-MINI-TENUM-ADAPT module is a video interface add-on module, fully compatible with the ATOMAS-IOT-DUAL encoder platform. This optional module provides a direct connection to DRS Tenum 640 thermal camera on the parallel video interface of the ATOMAS-IOT-DUAL. 7.1 Board layout... -
Page 20: Connector Part Numbers
7.2 Connector Part Numbers J1 – TENUM Connector / Samtec SS4-30-3.50-L-D-K-TR • J2 – KEL Connector (towards ATOMAS-IOT-DUAL) / KEL USL00-30L • Note: The J2 connector on the ATOMAS-MINI-TENUM-ADAPT module is designed to mate with connector J6 of the ATOMAS-IOT-DUAL. -
Page 21: Atomas-Iot-Dual-Sdsim-Adapt
8 ATOMAS-IOT-DUAL-SDSIM-ADAPT The ATOMAS-IOT-DUAL-SDSIM-ADAPT module is a micro-SD/nano-SIM add-on board, fully compatible with the ATOMAS-IOT-DUAL encoder platform. This optional module brings edge recording and 3G/4G LTE networking support to your ATOMAS-IOT-DUAL. 8.1 Board layout Figure 7 - ATOMAS-IOT-DUAL-SDSIM-ADAPT Top Side Figure 8 - ATOMAS-IOT-DUAL-SDSIM-ADAPT Bottom Side www.ionodes.com... -
Page 22: Connector Part Numbers
J1 – microSD card Socket • J2 – nano SIM card Socket • J3 – Molex Connector (towards ATOMAS-IOT-DUAL ) / Molex 503480-1600 • Note: The J3 connector on the ATOMAS-IOT-DUAL-SDSIM-ADAPT module is designed to mate with connector J3 of the ATOMAS-IOT-DUAL module. www.ionodes.com... -
Page 23: Atomas-Iot-Dual-Hdcomp-Adapt
9 ATOMAS-IOT-DUAL-HDCOMP-ADAPT The ATOMAS-IOT-DUAL-HDCOMP-ADAPT module is an add-on board designed for use with the ATOMAS- IOT-DUAL line of encoders. This optional module brings support for Analog SD Composite (PAL/NTSC), as well as Analog HD Component (Y/Pb/Pr) video to your ATOMAS design. The ATOMAS-IOT-DUAL-HDCOMP- ADAPT module connects to the ATOMAS-IOT-DUAL on the parallel video input. -
Page 24: Connector Part Numbers
• J5 - KEL Connector (towards ATOMAS-IOT-DUAL) / KEL USL00-30L • Note: The J5 connector on the ATOMAS-IOT-DUAL-HDCOMP-ADAPT module is designed to mate with connector J6 of the ATOMAS-IOT-DUAL module. J6 – Power Connector / JST BM03B-ADHKS-GAN-ETB(LF)(SN) • Pin No. -
Page 25: System Configuration
10 System Configuration For initial set-up, the ATOMAS-IOT-DUAL needs to be configured prior to using it with your network video management system. In most cases, only network configuration will be required. Since not all ATOMAS- IOT-DUAL parameters can be controlled via networked video management systems, advanced parameters may need to be set-up as well through the ION specific software tools.
