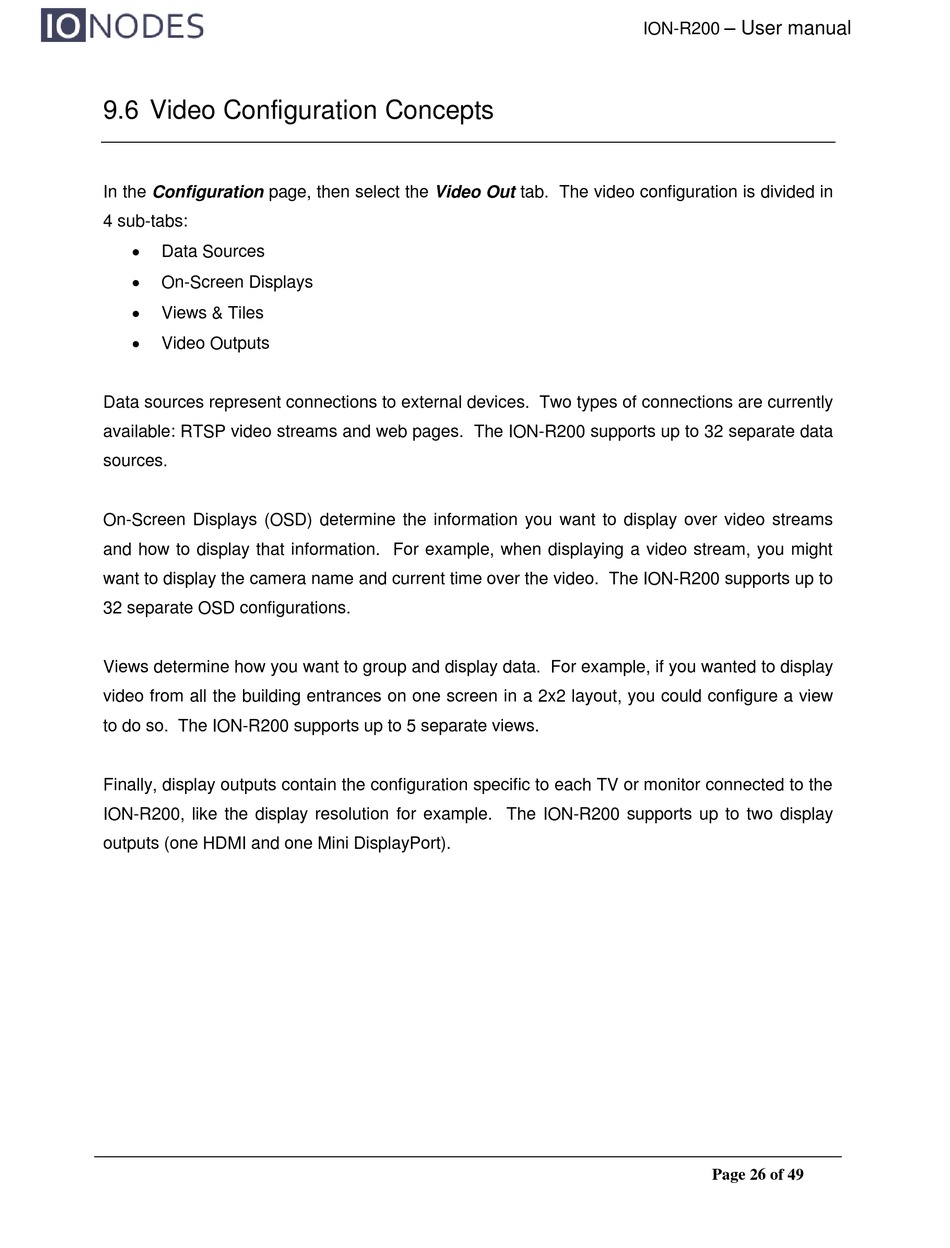

9.6 Video Configuration Concepts

In the Configuration page, then select the Video Out tab. The video configuration is divided in
4 sub-tabs:
Data Sources
On-Screen Displays
Views & Tiles
Video Outputs
Data sources represent connections to external devices. Two types of connections are currently
available: RTSP video streams and web pages. The ION-R200 supports up to 32 separate data
sources.
On-Screen Displays (OSD) determine the information you want to display over video streams
and how to display that information. For example, when displaying a video stream, you might
want to display the camera name and current time over the video. The ION-R200 supports up to
32 separate OSD configurations.
Views determine how you want to group and display data. For example, if you wanted to display
video from all the building entrances on one screen in a 2x2 layout, you could configure a view
to do so. The ION-R200 supports up to 5 separate views.
Finally, display outputs contain the configuration specific to each TV or monitor connected to the
ION-R200, like the display resolution for example. The ION-R200 supports up to two display
outputs (one HDMI and one Mini DisplayPort).
