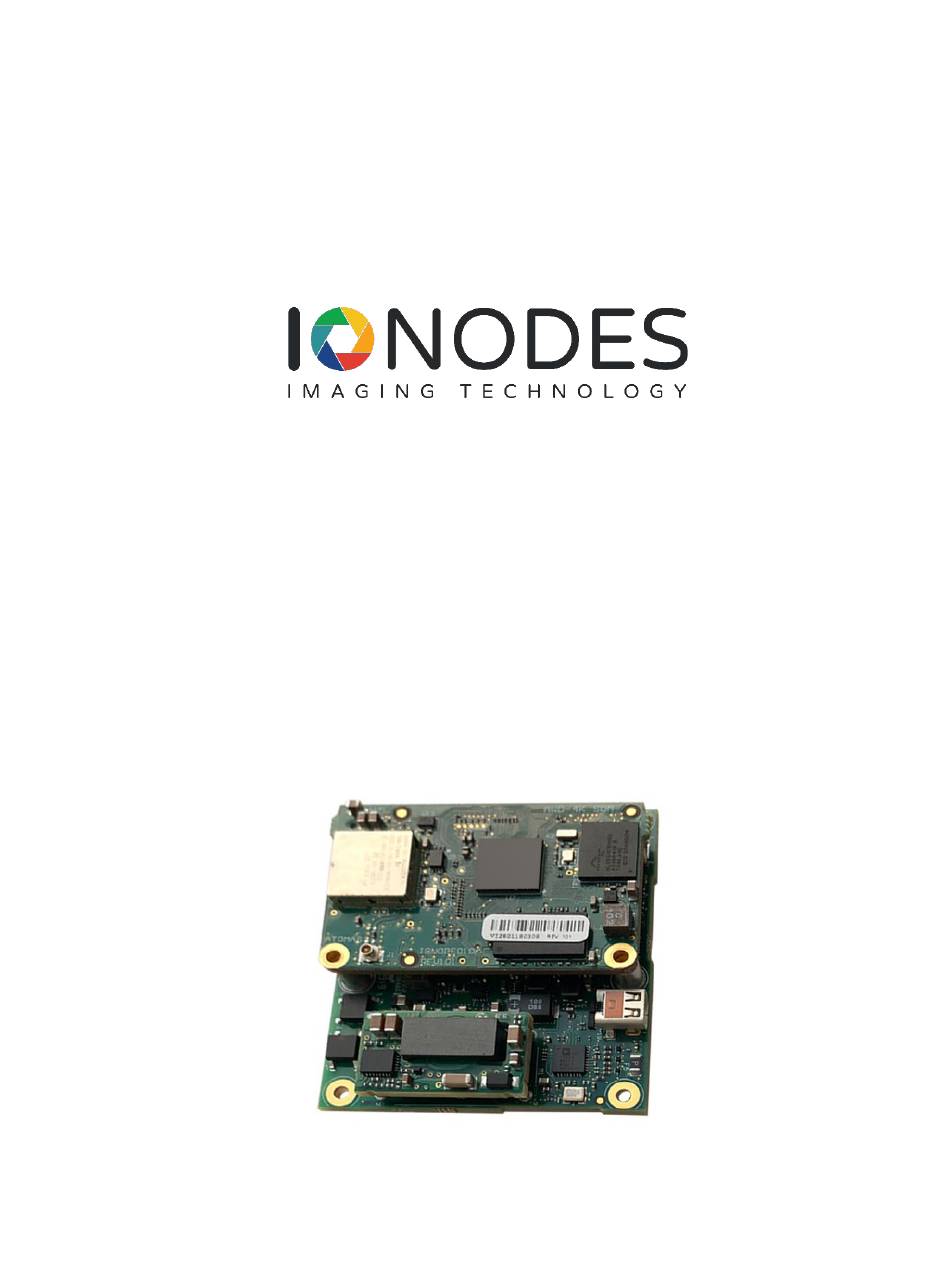

- Page 1 ATOMAS-DUO-HDMI User Manual OEM Encoder Platform Document Version 1.0...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with the recipient. In no event shall IONODES be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without...
-
Page 3: Table Of Contents
Contents About the ATOMAS-DUO-HDMI ......................... 4 Parts List ................................5 Hardware Integration ............................6 Temperature Considerations ..........................6 ATOMAS-DUO-HDMI Carrier Board ........................7 Board layout ..............................7 Connector Part Numbers ..........................9 5.2.1 J1 – Ethernet & Power In ........................10 5.2.2... -
Page 4: About The Atomas-Duo-Hdmi

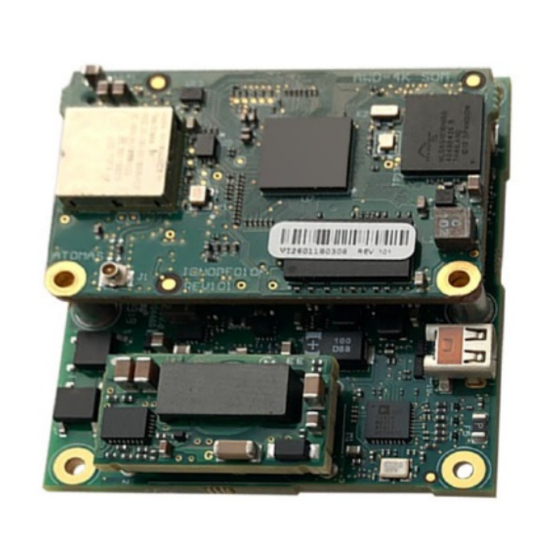

1 About the ATOMAS-DUO-HDMI The ATOMAS-DUO-HDMI encoder platform is a feature-rich IP camera video encoder solution for a wide range of single and multi-camera designs. The compact dual input form factor of the ATOMAS-DUO-HDMI platform makes it especially well-suited for integration to dual camera systems with a HDMI zoom block and a secondary video source (digital or analog) such as a thermal camera. -
Page 5: Parts List
The product serial number label helps our product support team identify your device and its factory configuration in the event that your IONODES product or its components require service. The label is attached on the underside of the PCBA for both the Carrier Board as well as the SOM. -
Page 6: Hardware Integration
In addition, a slight clearance around the board’s edge can also be used for extrusion-type enclosures. When integrating the ATOMAS-DUO-HDMI into a product design, position the module to allow for air circulation around the board in order to maximize the chances of heat dissipation. -
Page 7: Atomas-Duo-Hdmi Carrier Board
Figure 1 - ATOMAS-DUO-HDMI Carrier Board Top Side Note: On the top side of the ATOMAS-DUO-HDMI Carrier Board there is a small physical button labelled “SW1”, located next to the J3 connector. This button allows the user to perform a reset to factory default settings. - Page 8 Figure 2 - ATOMAS-DUO-HDMI Carrier Board Bottom Side support@ionodes.com | www.ionodes.com...
-
Page 9: Connector Part Numbers
(may or may not require a reboot). Note: On the ATOMAS-DUO-HDMI Carrier Board the user can choose to have an optional PoE (Power- over-Ethernet) module soldered onto the PCBA. Since this is done at the factory and the PoE module cannot be removed or added later on, the user will need to explicitly specify it when placing the order by selecting the appropriate option. -
Page 10: J1 - Ethernet & Power In
Connects directly to RJ45 or network wiring CON_FACT_DFLT# 3V3_100MA 3.3V DC Power Output (max. 100mA) 5V_500MA 5V DC Power Output (max. 500mA) Input voltage: 7V to 17V Input voltage: 7V to 17V Input voltage: 7V to 17V Input voltage: 7V to 17V support@ionodes.com | www.ionodes.com... -
Page 11: J2 - Comm, Gpio & Audio
AUDIO_LINE_OUT_LEFT AUDIO_LINE_OUT_RIGHT AUDIO_LINE_OUT_COMMON I2C_data_signal Uses 3.3V Level I2C_clock_signal Uses 3.3V Level CON_OUT I/O output for dry contact output. CON_IN2 I/O input for dry contact input. AUDIO_LINE_IN_RIGHT CON_IN1 I/O input for dry contact input. AUDIO_LINE_IN_LEFT support@ionodes.com | www.ionodes.com... -
Page 12: J5 - Hdmi Video Interface
6-12V output to camera block. Sourced from VIN with a 1.5A fuse. DC_OUT 6-12V output to camera block. Sourced from VIN with a 1.5A fuse. DC_OUT 6-12V output to camera block. Sourced from VIN with a 1.5A fuse. support@ionodes.com | www.ionodes.com... -
Page 13: J7 - Second Digital Video Interface
5.2.4 J7 – Second Digital Video Interface KEL USL00-30L Pin No. Name Comments CAM1_PWR CAM1_PWR CAM1_DAT14 CAM1_DAT8 CAM1_DAT4 CAM1_DAT7 CAM1_RST# CAM1_UART_RX CAM1_DAT5 CAM1_DAT6 CAM1_DAT13 CAM1_UART_TX CAM1_DAT15 CAM1_DAT10 CAM1_DAT12 CAM1_PIXCLK CAM1_DAT9 CAM1_DAT11 CAM1_DAT2 CAM1_VSYNC CAM1_DAT3 CAM1_DAT1 CAM1_I2C1_SCL CAM1_I2C1_SDA CAM1_HSYNC CAM1_DAT0 CAM1_FSYNC/DE support@ionodes.com | www.ionodes.com... -
Page 14: J10 - Analog Video Interface
5.2.5 J10 – Analog Video Interface Hirose DF20F-10DP-1V(56) Pin No. ANALOG VIDEO INTERFACE TYPE CVBS S-VIDEO YPrPb Pr in C in Pb in CVBS in Y in Y in support@ionodes.com | www.ionodes.com... -
Page 15: Understanding Led Status
5.3 Understanding LED Status The status of the ATOMAS-DUO-HDMI is exposed via an on-board bi-color LED (Green/Red) placed onto the Carrier Board. The following describes the system status LED mappings: Normal Operation: • Operating system boot up – LED is steady orange (max 30 seconds) •... -
Page 16: Atomas-4K-Som Processing Board
6 ATOMAS-4K-SOM Processing Board 6.1 Board layout Figure 3 - ATOMAS-4K-SOM Processing Board Top Side Figure 4 - ATOMAS-4K-SOM Processing Board Bottom Side support@ionodes.com | www.ionodes.com... -
Page 17: Connector Part Numbers
Wi-Fi option when placing the order. The chip cannot be physically added or removed later on; however, the Wi-Fi functionality can be disabled in the encoder’s web management interface. Note: The SOM will interface with the ATOMAS-DUO-HDMI carrier board via the B2B connector. support@ionodes.com | www.ionodes.com... -
Page 18: Atomas-Quadsd-D656
The ATOMAS-QUADSD-D656 module is a video interface add-on module, designed for use with the ATOMAS-DUO-HDMI encoder platform. This optional module converts 4x Analog Composite (CVBS) input video signals into a multiplexed BT.656 video signal that is fed to the second digital input of the ATOMAS- DUO-HDMI Carrier Board. -
Page 19: Connector Part Numbers
Figure 6 - ATOMAS-QUADSD-D656 Bottom Side 7.2 Connector Part Numbers • J2 – BT.656 video output (towards ATOMAS-DUO-HDMI Carrier Board) / KEL USL00-30L J3, J4, J5, J6 – CVBS video input / Amphenol RF 034-1018 • Note: The J2 connector on the ATOMAS-QUADSD-D656 is designed to mate with connector J7 of the ATOMAS-DUO-HDMI Carrier Board module. -
Page 20: J2 - Bt.656 Video Output
7.2.1 J2 – BT.656 Video Output KEL USL00-30L Pin No. Name Comments IRQ#_1V8 DATA_1V8_0 HSYNC_1V8 I2C_SDA_1V8 I2C_SCL_1V8 DATA_1V8_1 DATA_1V8_3 VSYNC_1V8 DATA_1V8_2 DATA_1V8_11 DATA_1V8_9 CLKOUT_1V8 DATA_1V8_12 DATA_1V8_10 DATA_1V8_15 DATA_1V8_13 DATA_1V8_6 DATA_1V8_5 RESET#_1V8 DATA_1V8_7 DATA_1V8_4 DATA_1V8_8 DATA_1V8_14 5V IN 5V IN support@ionodes.com | www.ionodes.com... -
Page 21: Atomas-Mini-Boson-Adapt
The ATOMAS-MINI-BOSON-ADAPT module is a video interface add-on module, designed for use with the ATOMAS-DUO-HDMI encoder platform. This optional module provides a direct connection to FLIR BOSON 320/640 (60Hz variant) thermal camera on the secondary digital video input of the ATOMAS-DUO-HDMI. 8.1 Board layout... -
Page 22: Connector Part Numbers
8.2 Connector Part Numbers J1 – FLIR Connector / Hirose DF40HC-(4.0)-80DS-0.4V • J2 – KEL Connector (towards ATOMAS-DUO-HDMI Carrier Board) / KEL USL00-30L • Note: The J2 connector on the ATOMAS-MINI_BOSON-ADAPT module is designed to mate with connector J7 of the ATOMAS-DUO-HDMI Carrier Board module. -
Page 23: Annex - Statement Limited Warranty
The warranty period for an ATOMAS-DUO-HDMI is a specified, fixed period commencing on date of billing by Ionodes for the Product. If a valid proof of billing cannot be found, the warranty may be void by Ionodes Inc. or measured from the date the ATOMAS-DUO-HDMI has shipped from an Ionodes Depot center based on its serial number. - Page 24 Ionodes does not warrant uninterrupted or error–free operation of an ATOMAS-DUO-HDMI. Any technical or other support provided for an ATOMAS-DUO-HDMI under warranty, such as assistance via telephone with "how–to" questions and those regarding ATOMAS-DUO-HDMI set–up and installation, will be provided WITHOUT WARRANTIES OF ANY KIND.
