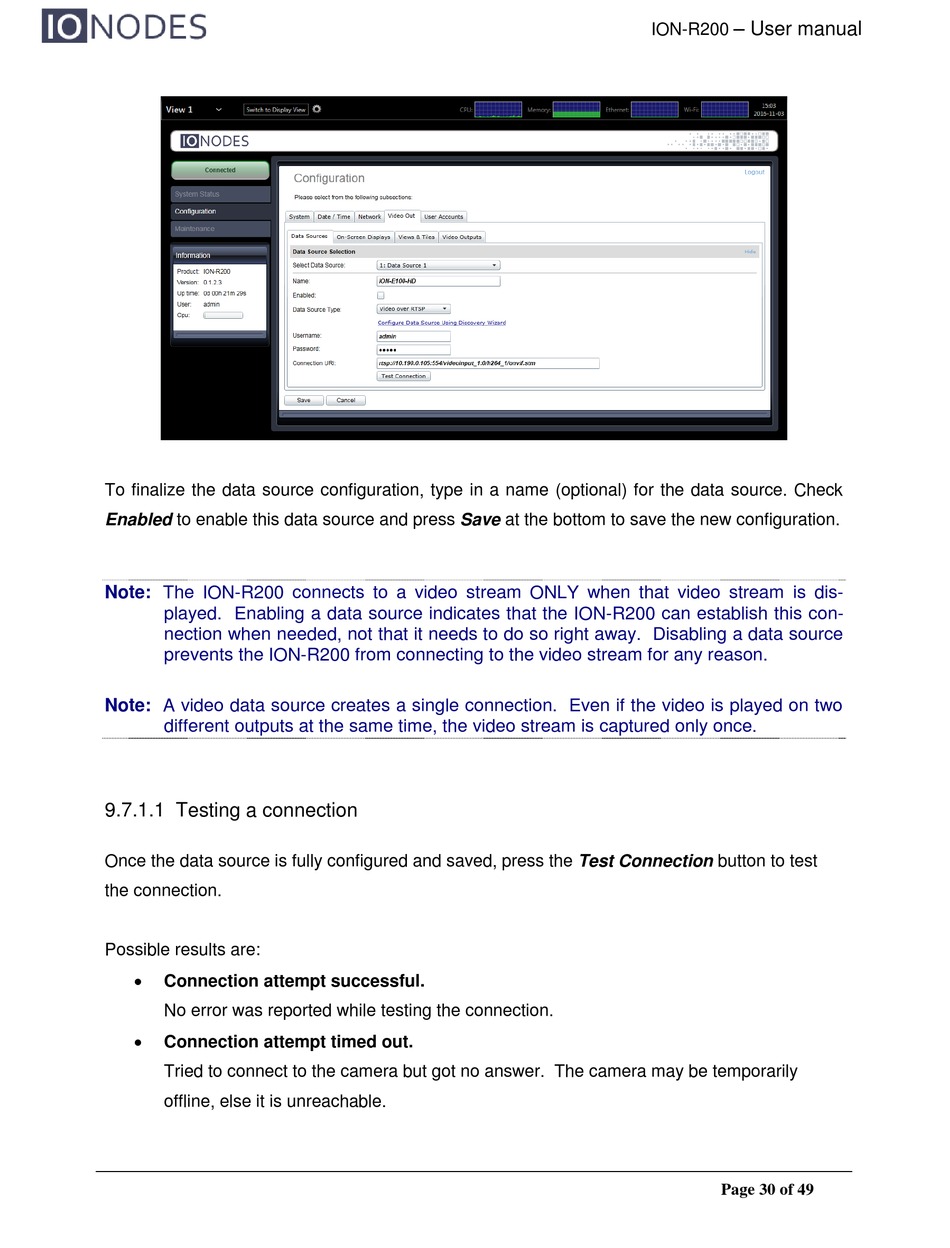

To finalize the data source configuration, type in a name (optional) for the data source. Check
Enabled to enable this data source and press Save at the bottom to save the new configuration.
Note: The ION-R200 connects to a video stream ONLY when that video stream is dis-
played. Enabling a data source indicates that the ION-R200 can establish this con-
nection when needed, not that it needs to do so right away. Disabling a data source
prevents the ION-R200 from connecting to the video stream for any reason.
Note: A video data source creates a single connection. Even if the video is played on two
different outputs at the same time, the video stream is captured only once.
9.7.1.1 Testing a connection
Once the data source is fully configured and saved, press the Test Connection button to test
the connection.
Possible results are:

Connection attempt successful.
No error was reported while testing the connection.

Connection attempt timed out.
Tried to connect to the camera but got no answer. The camera may be temporarily
offline, else it is unreachable.
