– User manual
ION-R200

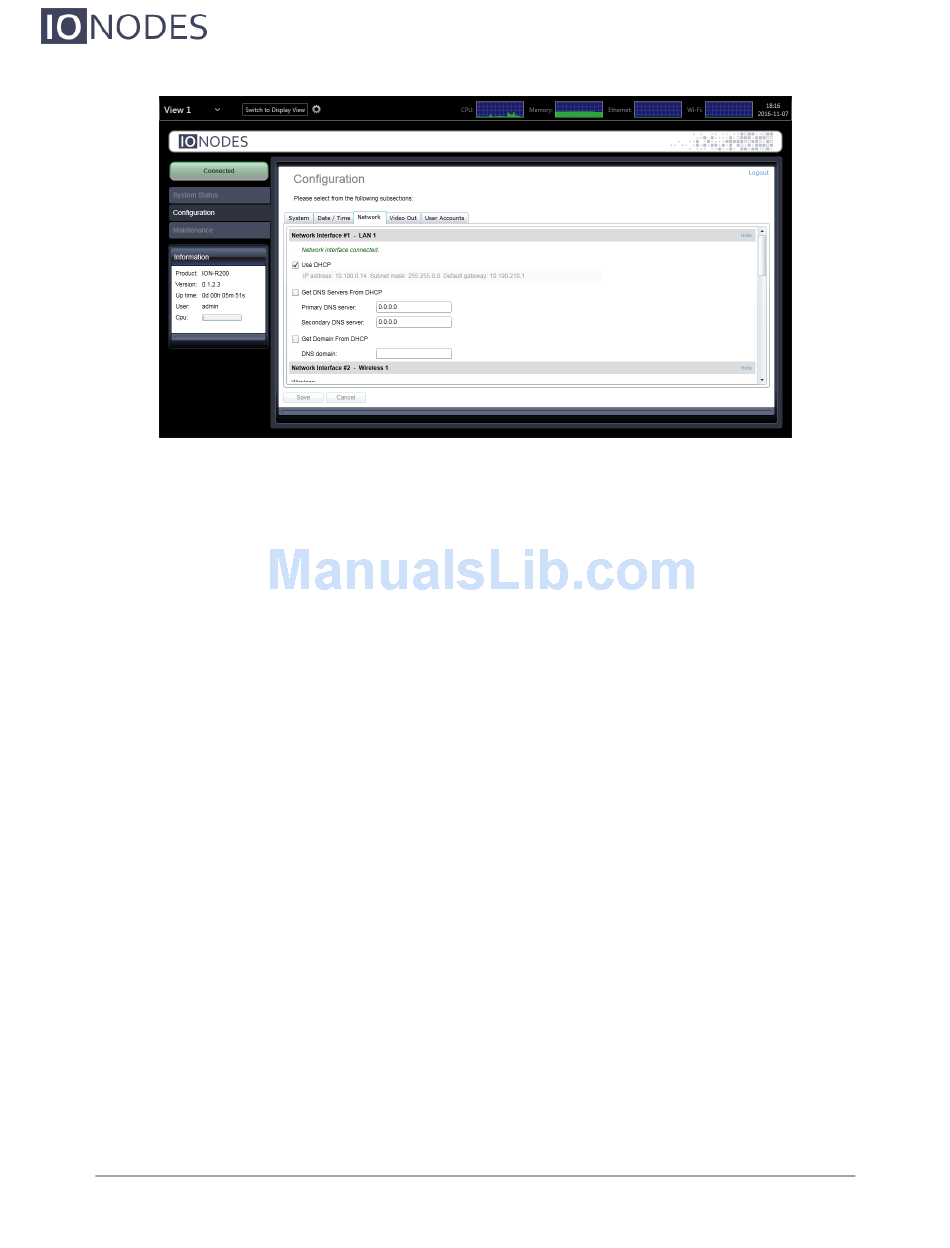

The Ethernet network configuration is shown in the first section Network Interface #1 – LAN 1.
The first information displayed is the connection status of the Ethernet cable. If the configuration
reports the network interface as not connected, check the Ethernet cable between the ION-R200
and the network before proceeding.
By default, the ION-R200 is configured in DHCP mode. If a DHCP server is present on the
network, the network configuration provided by the DHCP server is displayed. In that case,
nothing needs to be done; the device is ready to communicate with computers and cameras on
your network.
If the IP address shown is in the range 169.254.*.*, this means that the device could not obtain
its network configuration from a DHCP server. In that case, the network configuration must be
set manually.
To set the network configuration manually, uncheck Use DHCP. You can then enter each
network setting separately. If you are unsure what values to enter, ask your network
administrator to provide configuration settings compatible with your network. At a minimum, a
valid IP address and Subnet mask must be entered. Once this is done, click on Save at the
bottom to apply the configuration changes.
